Page 27

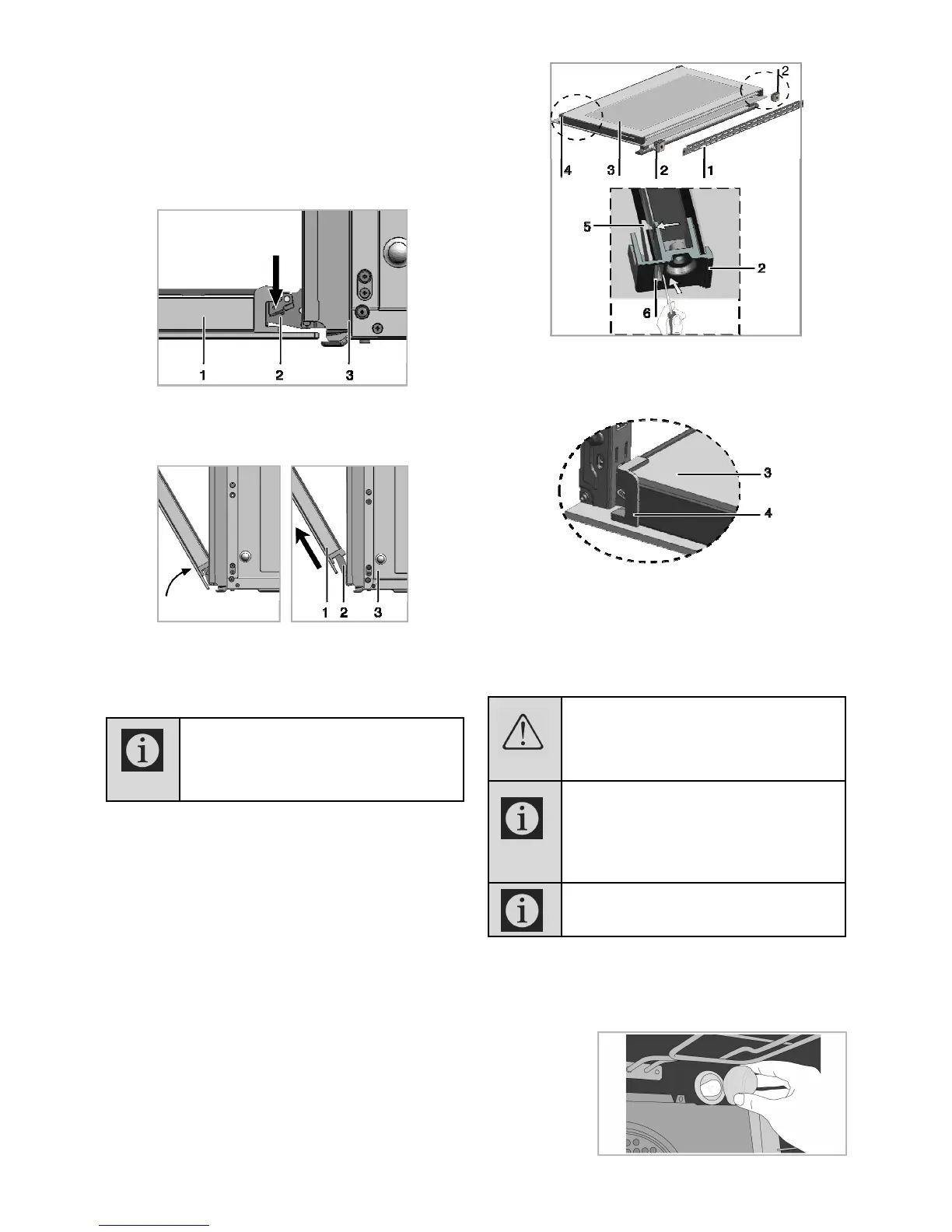

Removing the oven door
1. Open the front door (1).
2. Open the clips at the hinge housing (2) on
the right and left hand sides of the front door
by pressing them down as illustrated in the
figure.
1 Front door
2 Hinge
3 Oven
3. Move the front door to half-way.
4. Remove the front door by pulling it
upwards to release it from the right and left
hinges.
Repeat removal steps in reverse
order to refit the door. Do not forget
to close the clips at the hinge housing
when refitting the door.
Removing the door inner glass
The oven door inner glass panel can be
removed for cleaning.
Open the oven door.
Remove the metal part (1) by removing three
screws that secure it.
To remove the plastic holders (2), use a flat
screwdriver, to free the fixing foot (5).
Push the fixing foot through the opening (6)
in the direction of the arrow .
1 Metal part
2 Plastic carrier
3 Inner glass panel
Pull the inner glass panel (3) towards
yourself until it detaches from its slots (4).
When refitting the glass panel, make sure
that it is seated into the plastic slots.
Replacing the oven lamp
DANGER Hot surfaces may cause
burns! Make sure that the appliance
is switched off and cooled down to
avoid the risk of an electrical shock.
The oven lamp is a special electric
light bulb that can stand up to 300 °C.
See Technical specifications for
details. Oven lamps can be obtained
from Authorised Service Agents.
Position of lamp might vary from the
figure.
If your oven is equipped with a round lamp:
1. Disconnect the product from the mains.
2. Turn the glass cover counter clockwise to
remove it.
3. Refit the
glass cover.
4 Lower plastic slot
5 Fixing foot
6 Window
