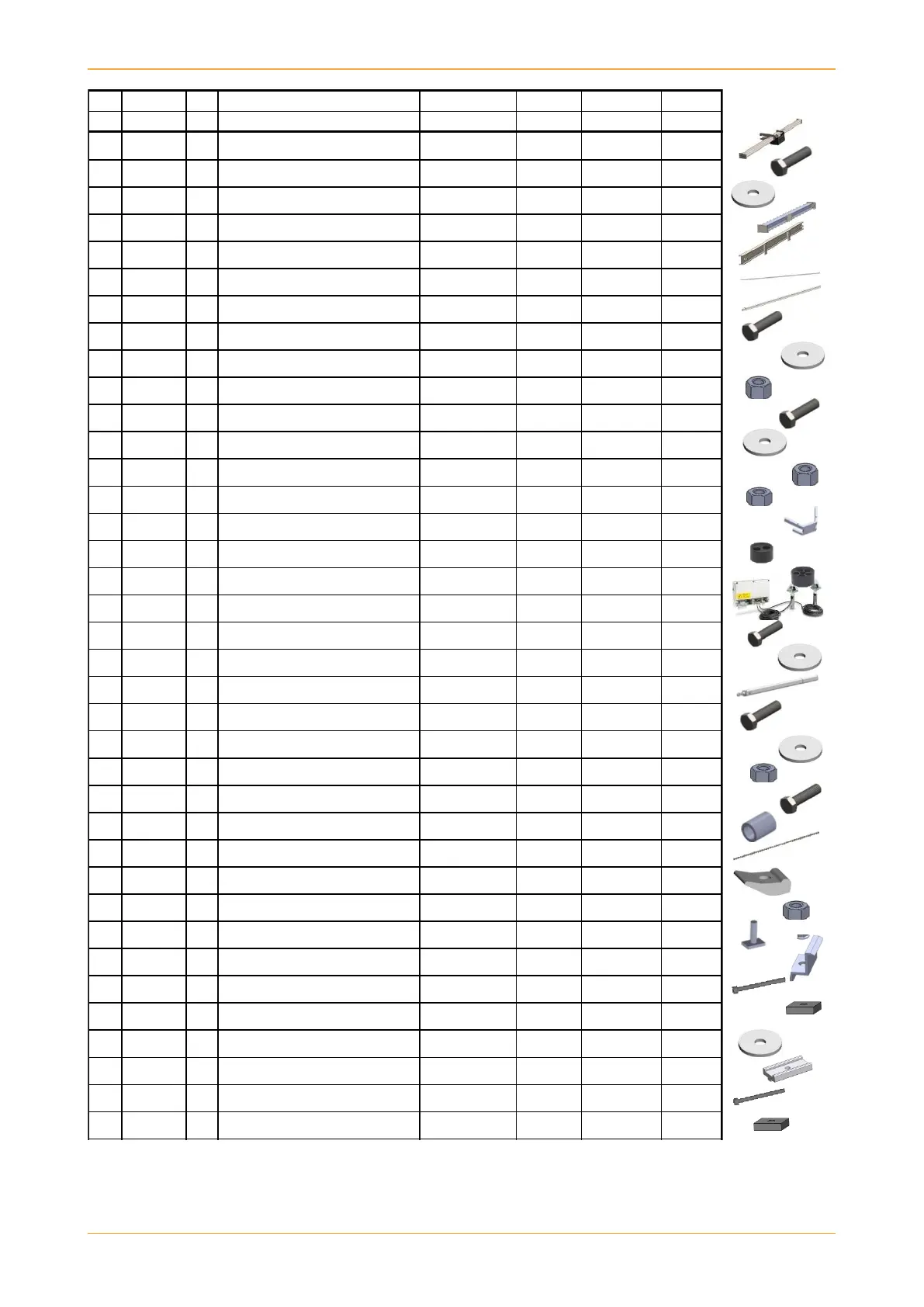

24.03.2017 ASSEMBLY AND OPERATING MANUAL DEGERtracker D60H, D80, D100 Page 11
Pos. Item No.
Qty. Name Dimensions Weight Use System
in mm in kg
1 1 Rotating head with central tube
370x750x4040 400
all systems
2 6100025 18 Bolt DIN933 M16x75 0,2
Enclosed with
rotating head
alle
Systeme
3 6300010 18 Washer DIN125 A17 0,01
Enclosed with
rotating head
alle
Systeme
4 3900002 2
Cross-bar 160x250x2420 80
Base frame all systems
5 ** 2
Longitudinal beam 100x190x ** max. 155
Base frame all systems
6 3900004 2
Tie rod 40x20x3820 5
Base frame D100
7 3900005 2
U-section 60x75x2500 15
Base fame all systems
8 6100142 16 Bolt DIN933, 10.9 M16x70 0,02
Enclosed with
base frame
all systems
9 6300010 32
Washer DIN125 A17 0,01
Enclosed with
base frame
all systems
10 6200031 16
Hexagon nut DIN985 M16 0,03
Enclosed with
base frame
all systems
11 6100143 4 Bolt DIN933, 8.8
M12x40 0,04
Enclosed with
base frame
all systems
12 6300009 10
Washer DIN125 A13 0,01
Enclosed with
base frame
all systems
13 6200026 4
Hexagon nut DIN985 M12 0,02
Enclosed with
base frame
all systems
14 6200011 4
Hexagon nut DIN934 M12 0,02
Enclosed with
base frame
only D100
15 8100032 1
Bumerang II cpl. 55x90x150 0,4
all systems
16 5500110 2 Multiple-seal M25 0,01
Enclosed with
cable prefabr.
alle
Systeme
17 5500116 1 Multiple-seal M40 0,01
Enclosed with
cable prefabr.
alle
Systeme
18 8100141 1 Control complete EC-6
210x250x290 2
all systems
19 6100095 3 Bolt DIN933 M8x12 0,03
Enclosed with
EC-6
alle
Systeme
20 6300025 2 Washer DIN125 A9 0,01
Enclosed with
EC-6
alle
Systeme
21 4100081 1 Elevation drive T7 80x90x1610 21
all systems
22 6100136 1 Bolt DIN931, 10.9
M20x110 0,04
Enclosed with
elevation drive
all systems
23 6300026 2
Washer DIN125 A21 0,03
Enclosed with
elevation drive
all systems
24 6200032 1
Hexagon nut DIN985 M20 0,07
Enclosed with
elevation drive
all systems
25 6100145 2 Bolt DIN933, 10.9
M14x45 0,08
Enclosed with
elevation drive
all systems
26 3900020 2
Friction bearing shaft Ø30x22 0,01
Enclosed with
elevation drive
all systems
27
* * Alu profile F-Set-D big T-slot *
1.496
kg/m
all systems
28 6900011
* Clamping piece MTH M10 0,08
Aluminum
fastening
all systems
29 6200014
* Hexagon nut DIN934 M10 0,02
Aluminum
fastening
all systems
30 6900235
* Square head bolt M10x35 0,02
Aluminum
fastening
all systems
31
* * End clamp * 0,02
Module
fastening
all systems
32
* * DIN912-A2 M8x* *
Module
fastening
all systems
33 6900007
* Sliding nut M8 20x20x5 0,01
Module
fastening
all systems
34 6300060
* middle plate round Ø25x6.4x3 0,01
Module
fastening
D80, D100
35 6900016 * Centre plate HD 26x50 0,05
Module
fastening
D60H
36 * * DIN912-A2 M6x* *
Module
fastening
all systems
37 6900006
* Sliding nut M6 20x20x5 0,01
Module
fastening
all systems
* The article number, the exact quantity and dimensions depend on the size and type of module configuration.
** Depends on the size of system (D60H, D80, D100)
Article number, exact quantity and dimensions can be found in the delivery note.
