24.03.2017 ASSEMBLY AND OPERATING MANUAL DEGERtracker D60H, D80, D100 Page 21
6.2 Assembling the aluminum profiles
ATTENTION!
The module configuration layout provided by DEGER together with the order confirmation is
binding!
The solar modules must not be arranged in any other way, than described in the module
configuration layout from DEGER.
The total module surface is determined with the DEGER planning tool, specifically for the location.
Defects caused by failing to comply with the module configuration layout are not covered under
warranty.
ATTENTION!
No aluminum profiles must be mounted in the middle area of the central slewing bolt.
A distance of at least 600 mm from the middle must be free of aluminum profiles.
Failure to comply may cause damage to DEGERtracker or modules.

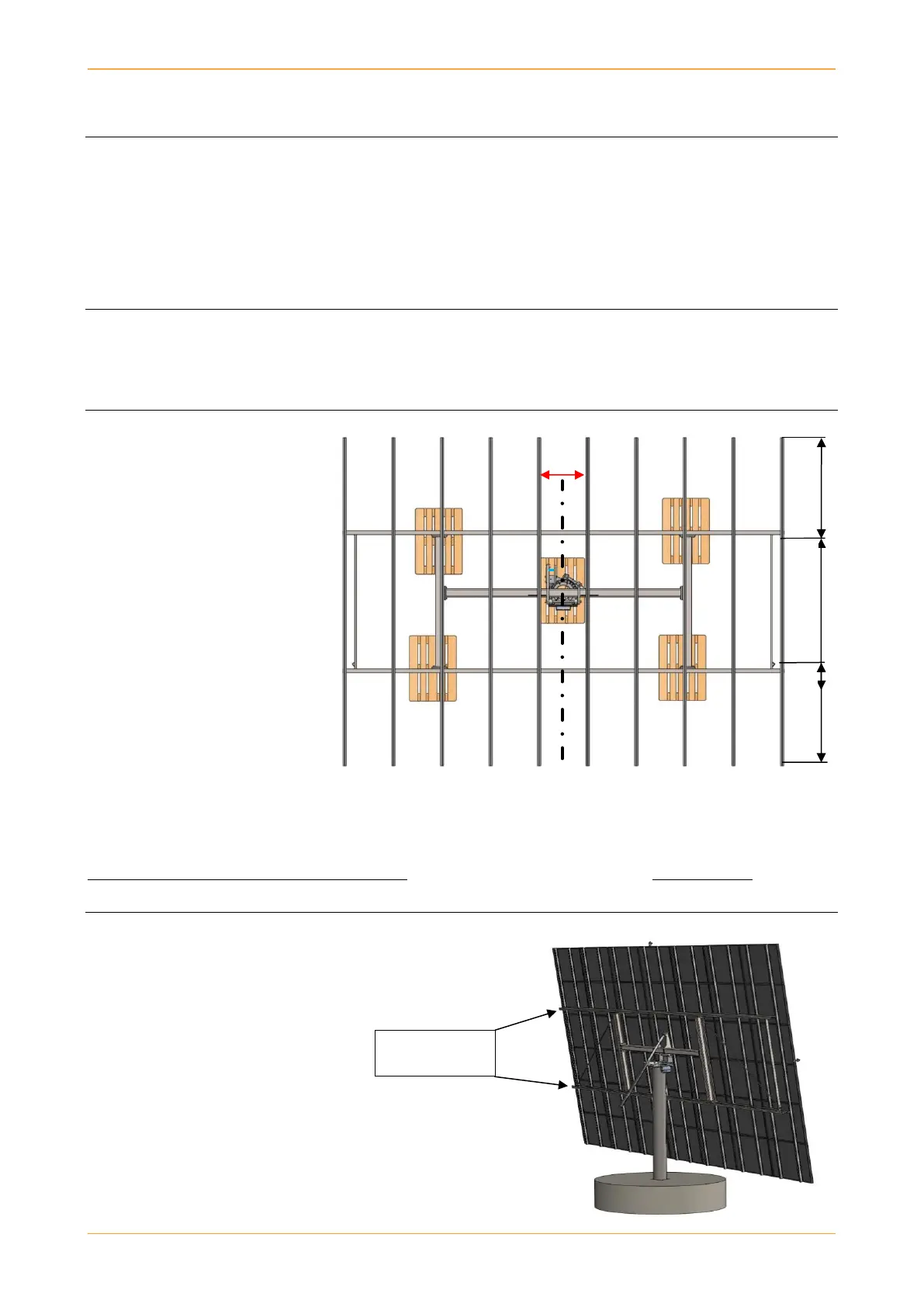

The aluminum profiles project from the
base frame at top and bottom.
This projection is calculated as follows:
Length aluminum profile - Width bearing frame
2
=Projection Example:
5,90 m-2,60 m
2
=1,65 m
Width of base frame
= 2.60 m
MTH clamps for
fastening the
aluminum profiles
