2.4.2 Accompanying documentation
- One assembly and operating manual DEGERtracker
- One assembly and operating manual MLD-control
2.4.3 Optional accessories

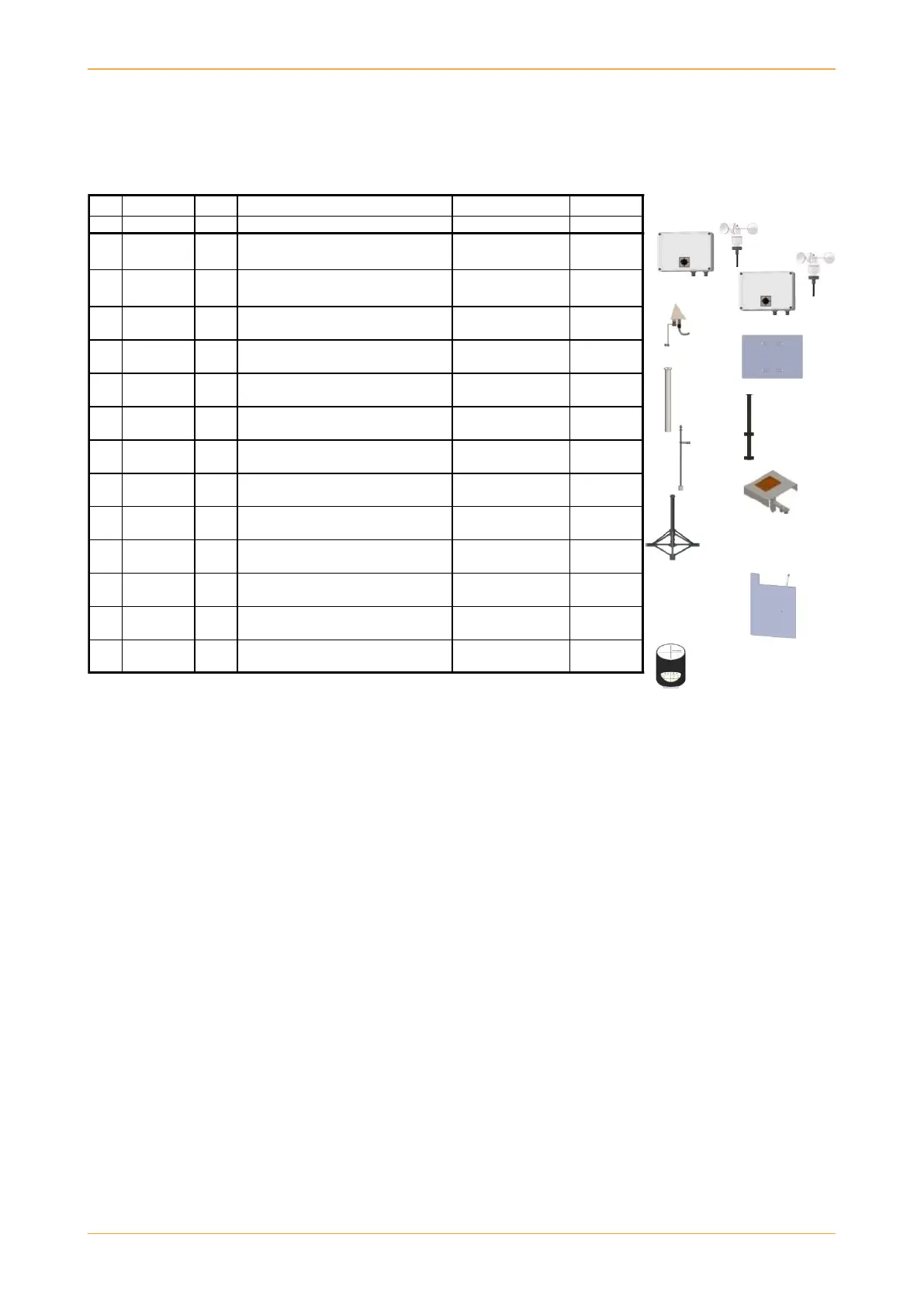

Item Article No. Qty. Name Dimensions Weight
in mm in kg
50 1990004
!1
Central Control Box with
wind monitor STANDARD
225x350x510
235x285x320
4
2
51 1990003
!1
Central Control Box with
wind monitor ADVANCED
225x350x510
235x285x320
4
2
52 1990040 1
Irradiation sensor 80x90x200 1
53 1990014 1
Holding plate for junction box 1.5x250x350 1
54
* 1 Mast * *
55 D60H-FL 1 Mast for building integration 450x5455 430
56 1990008 1
Pendulum holder for wind monitor 100x100x1100 5
57 1900007 1
Snow sensor 130x190x220 1
58 1990400 1 DEGER Steel Foundation
626x600x5000 800
59 1900013 1 Holding device for inverter 600x650 14
60 1900014 1 Holding device for inverter 900x470 15
61 1900015 1 Holding device for inverter 600x470 10
63 1990050 1
Alignment Tool
100x105x125 1
* Article number, dimensions and weight depend on the size of the delivered article.
Article number, dimensions and weight can be found in the delivery note.
! Up to 200 plants can be operated with one Central Control Box and one snow sensor.
2.5 Performances to be rendered by the Customer
2.5.1 Material to be provided by the customer
- Battery pack, 12 to 26 V DC
- Cable straps 3.6x370
- Open end spanner SW 30, 24, 22, 19, 17, 13 and 10
- Torque wrench SW 30 with 200 Nm
SW 24 with 200 and 300 Nm
SW 22 with 195 Nm
SW 18 with 84 Nm
SW 16 with 48 Nm
SW 13 with 24 Nm
SW 10 with 10 Nm
SW 8 with 6.5 Nm
- Screwdriver for slotted-head bolts 0.8x4x100
- Screwdriver for Phillips head bolts PH1
- Appropriate square timbers or metal structure which can hold a load of 2 tonnes as support
