Deif BRW-2 - Mounting the Unit

1. Mounting the unit
This is only relevant for the replacement of existing BRW-1 products.

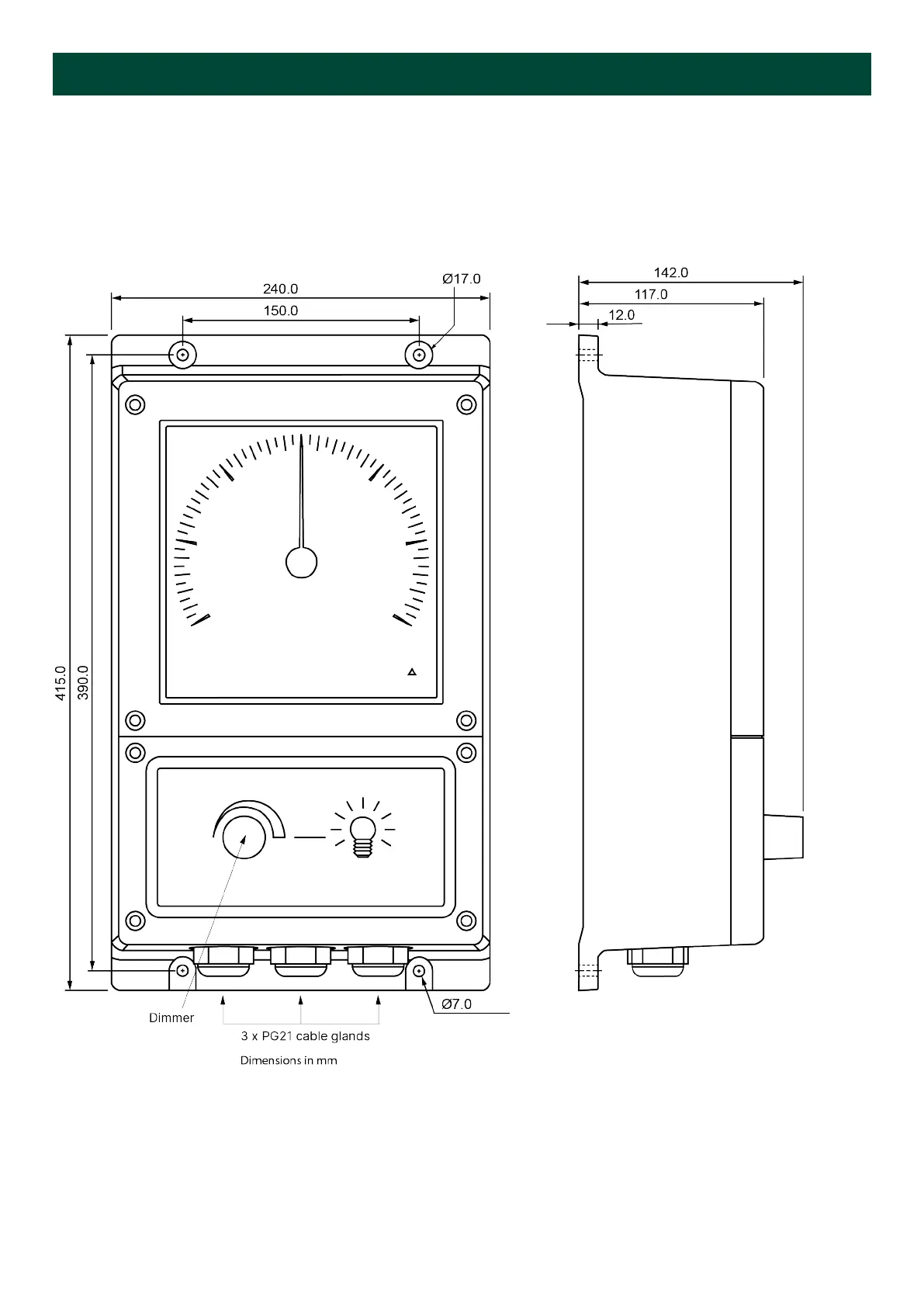

The three PG21 type cable glands on the bottom of the unit are suitable for cable gauge 13 to 18 mm.
The BRW-2 is protected from ESD (static electricity). This means that no special ESD protection measures are required
when mounting the unit.
QUICK START GUIDE 4189350057C UK Page 2 of 4
