No. Name Range Default Description/optionsNo. Name Range Default Description/options
0 = no acidic cleaning0 = no acidic cleaning
1 = one alkaline, one acidic cleaning1 = one alkaline, one acidic cleaning
2 = two alkaline, one acidic cleaning2 = two alkaline, one acidic cleaning
3 = etc.3 = etc.
Maintenance an calibration
The following points are important to sustain
correct dosing of etergents. Note that
these two tasks should be performed by an
authorised DeLaval service engineer.
• The tubes in the peristaltic pumps should
be replaced at least two times a year.
• The dosing volume (P6-P8) of the
detergent pumps should be checked
every third month. The dosing capacity
(P32-P34) may need to be adjusted.
Starting cleaning or rinsing
from the touch screen
Note: Any ongoing backflush process must
first be finished before cleaning or rinsing
can be started.
1. Ensure that the milking station is in
manual mode.
2. Remove any cow that might be in the
milking station.
After treatment window
Note: Both gates should be closed to
prevent a cow from entering before the
system cleaning has been started. Closing
and opening gates is done in the Stall
control window.
3. Press the tab After Treatment on the
touch screen to display the After treatment
window.
4. In the After treatment window, press the
Cleaning and Rinsing button. This will open
the Cleaning and rinsing window.
Note! This symbol is only valid in the European
Union. If you wish to discard this product, contact
your local authorities or dealer and ask for the
correct method of disposal.
3 Disposal of consumables
Used consumables can be disposed of with
household waste.
3.1 Disassemble the cassette
1. Remove the top lid of the cassette by
inserting a flat screwdriver or scissor into
the marked holes and push the shaft down-
wards.
2. Remove the front lid of the cassette by
inserting a flat screwdriver or scissor into
the marked holes and push the shaft down-
wards.
3. Take apart the plastic parts and the alumi-
num film.
4. Recycle the parts separately.
205157277310

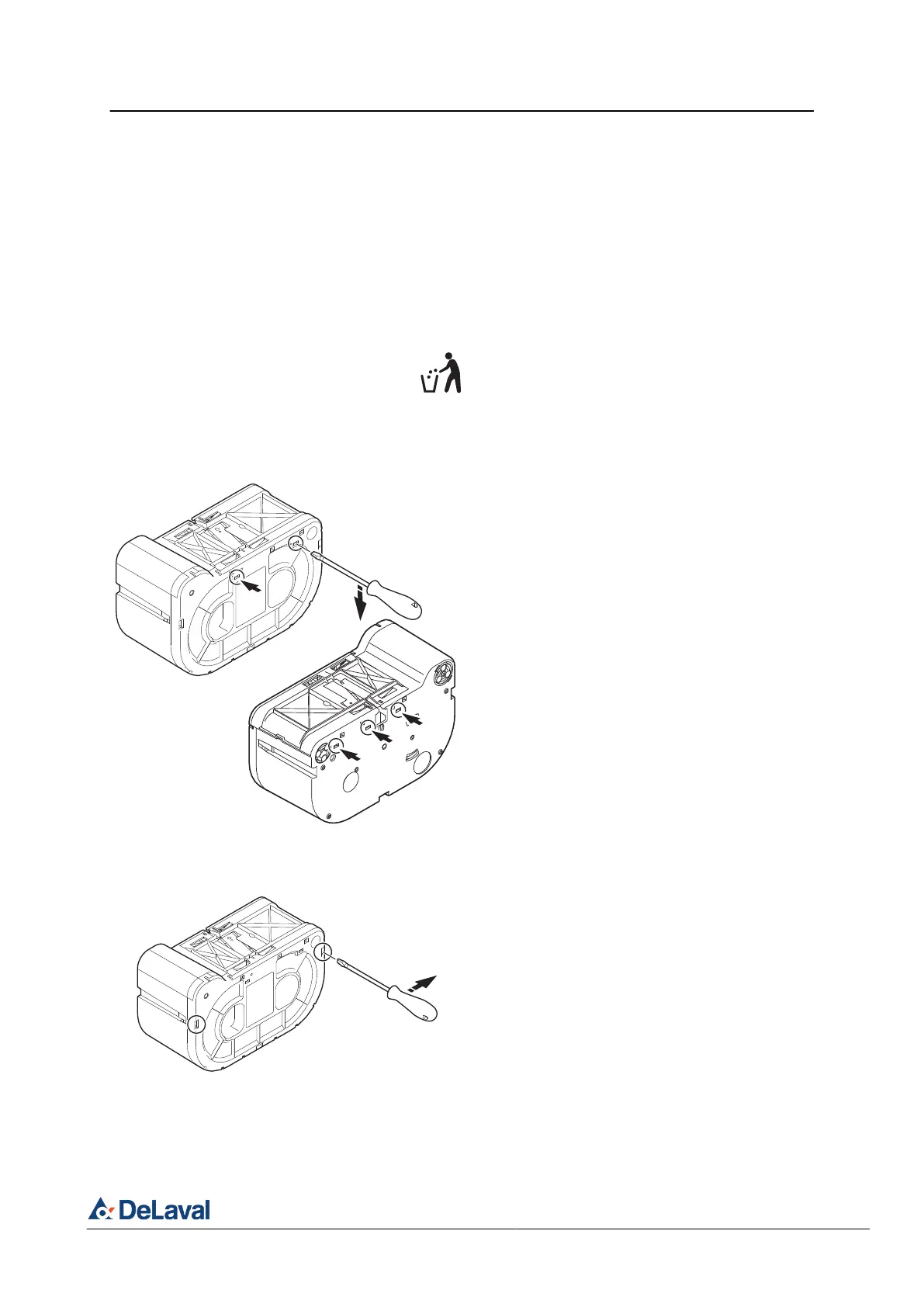

Fig. 31: Removing the top lid of the cassette.
277309
Fig. 32: Removing the front lid of the cassette.
DeLaval Herd Navigator™ precision analytics 100
Disposal
© DeLaval 2021.
2021-05-10, Version 3 40 (44) 2800008901
