1. Unlock the fixation bolt.
2. Remove the bottom plate and the brush
cylinder.
Note! The motor unit is IP65 protected. It
will not withstand high pressure cleaning.
3. Fit the brush cylinder to the axle. Make sure
that both screws are placed in the same
area.
Note! It is possible to choose between yel-
low brush cylinder (article number
91526242) and eccentric blue brush cylin-
der (article number 87365701).
4. Fit the bottom plate and the bolt.
Note! One of three splines of the brush axle
should be located between two locking tabs
on the bottom plate.
215130

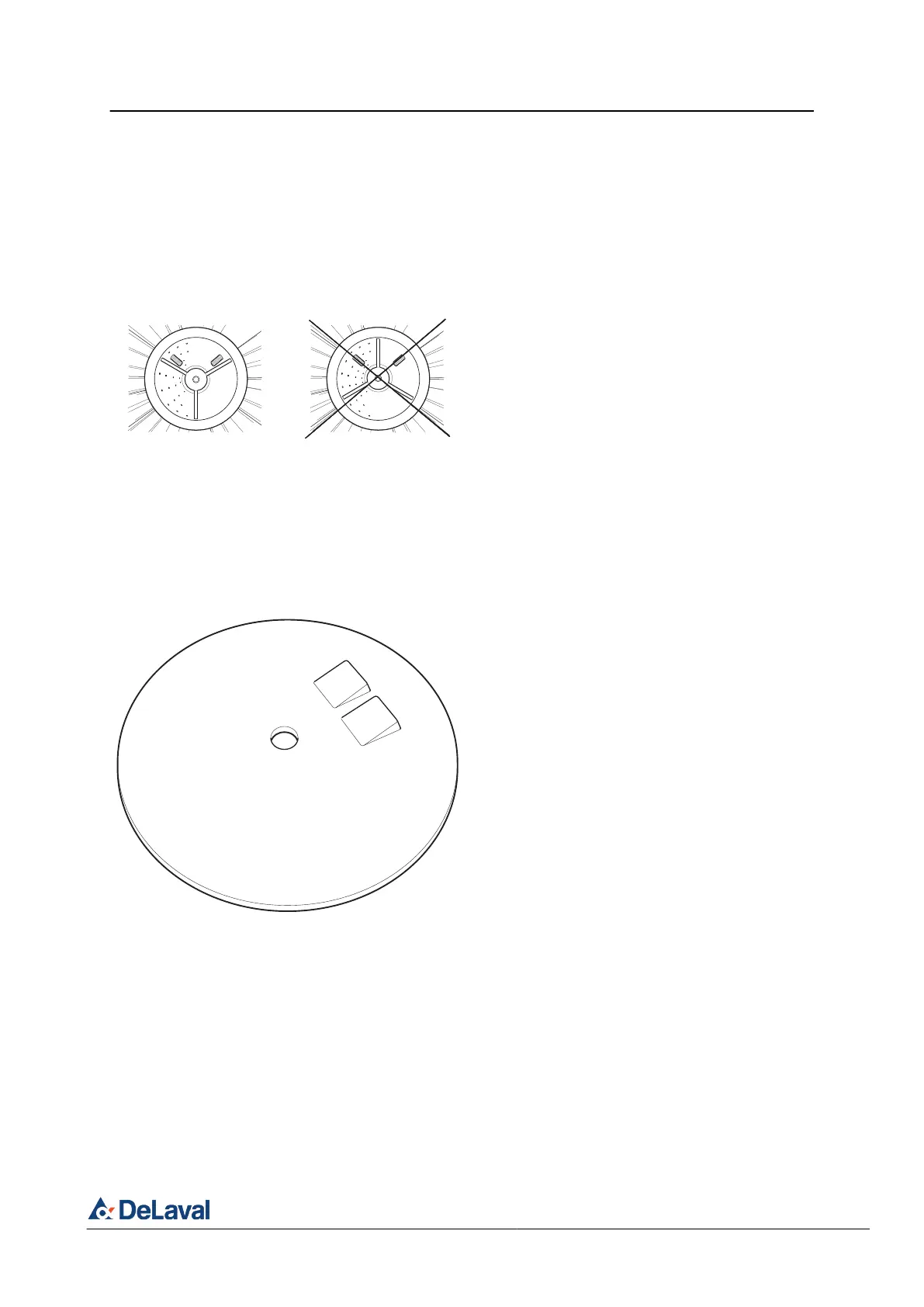

Fig. 14: Fitting new brush cylinder.
1: Correct
2: Wrong
215124
Fig. 15: The bottom plate.
DeLaval swinging cow brush SCB3
Operator's maintenance
© DeLaval 2016.
2016-07-19, Version 5 23 (26) 84948801
