Delfield 403 - Drawer Assembly Drawing

Compact Refrigerators and Freezers Service and Installation Manual
11
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.del eld.com
NOTE: Drawer fronts must be ordered separately
(see next page) unless ordering complete kit by
assembly number listed at right.
5
1
7
6
9
4
2

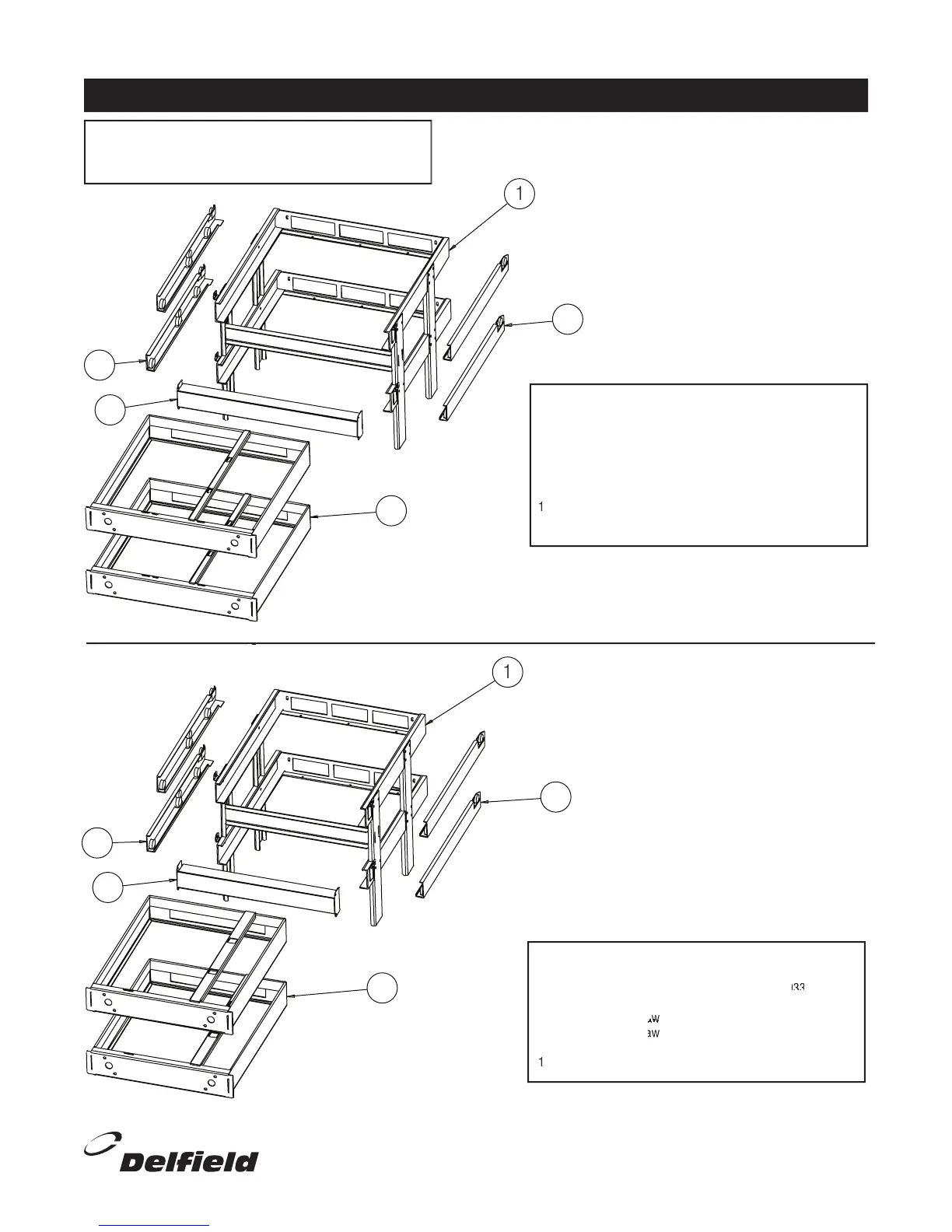

Two Drawer Assembly (without drawer fronts)
4427
Description
Part #
Drawer assembly kit
000ANF0032
5
Drawer mullion assembly
0302164
4
Interm prof, RH, drawer slide
3234579
3
Interm prof, RH, drawer slide
3234578
2
Drawer box cart system assy.
000333003L
1
Drawer frame assembly
000AJH0035
4
5
2
3
1
4448/72
Description
Part #
Drawer assembly kit
000ANF0033
4
000ANF0033
4
5
Drawer mullion assembly
0330587
4
Interm prof, RH, drawer slide
2
Interm prof, RH, drawer slide
2
3234579
3
Interm prof, RH, drawer slide
2
Interm prof, RH, drawer slide
2
3234578
2
Drawer box cart system assy.
000333003M
1
Drawer frame assembly
000AJH0033
4
5
2
3
1
1
