Delfield 403 - Drawer Front Assembly Drawings

Compact Refrigerators and Freezers Service and Installation Manual
13
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.del eld.com
1
6
9
5
2
4
8
7
3
DELFIELD
KEY QTY. PART# DESCRIPTION
Complete Drawer Front Kit
0330441
27”, drawer front kit, w/lock
1
1
0077428
panel, drawer, 27”, w/lock
2
2
0330413
drawer reinforcement*
3
1
1702476
gasket, push-in, drawer, 27”
4
1
1702477
liner, drawer, 27”*
5
1
3234201
keys and lock, 1.12 door
6
1
3234255
handle, snap-in*
7
2
9321022
1/4-20 x .75 Z-H-HX-M*
8
2
9321051
washer, 1 1/4*
9
1
9321502
plug, Heyco, 3/4, solid
27” Drawer Front W/Lock
DELFIELD
KEY QTY. PART# DESCRIPTION
Complete Drawer Front Kit
0330440
32”, drawer front kit, w/lock
1
1
0077427
panel, drawer, 32”, w/lock
2
2
0330413
drawer reinforcement*
3
1
1702478
gasket, push-in, drawer, 32”
4
1
1702479
liner, drawer, 32”*
5
1
3234201
keys and lock, 1.12 door
6
1
3234255
handle, snap-in*
7
2
9321022
1/4-20 x .75 Z-H-HX-M*
8
2
9321051
washer, 1 1/4*
9
1
9321502
plug, Heyco, 3/4, solid
32” Drawer Front W/Lock
*Available only with complete kit.
*Available only with complete kit.
6
7
3
2
4
1
8
5
DELFIELD
KEY QTY. PART# DESCRIPTION
Complete Drawer Front Kit
0330412
27”, drawer front kit, w/o lock
1
1
0077301
panel, drawer, 27”, w/o lock
2
2
0330413
drawer reinforcement*
3
1
1702476
gasket, push-in, drawer, 27”
4
1
1702477
liner, drawer, 27”
5
1
3234255
handle, snap-in*
6
2
9321022
1/4-20 x .75 Z-H-HX-M*
7
2
9321051
washer, 1 1/4*
8
1
9321502
plug, Heyco, 3/4, solid*
27” Drawer Front W/O Lock
DELFIELD
KEY QTY. PART# DESCRIPTION
Complete Drawer Front Kit
0330424
32”, drawer front kit, w/o lock
1
1
0077335
panel, drawer, 32”, w/o lock
2
2
0330413
drawer reinforcement*
3
1
1702478
gasket, push-in, drawer, 32”
4
1
1702479
liner, drawer, 32”
5
1
3234255
handle, snap-in*
6
2
9321022
1/4-20 x .75 Z-H-HX-M*
7
2
9321051
washer, 1 1/4*
8
1
9321502
plug, Heyco, 3/4, solid*
32” Drawer Front W/O Lock
*Available only with complete kit.
*Available only with complete kit.

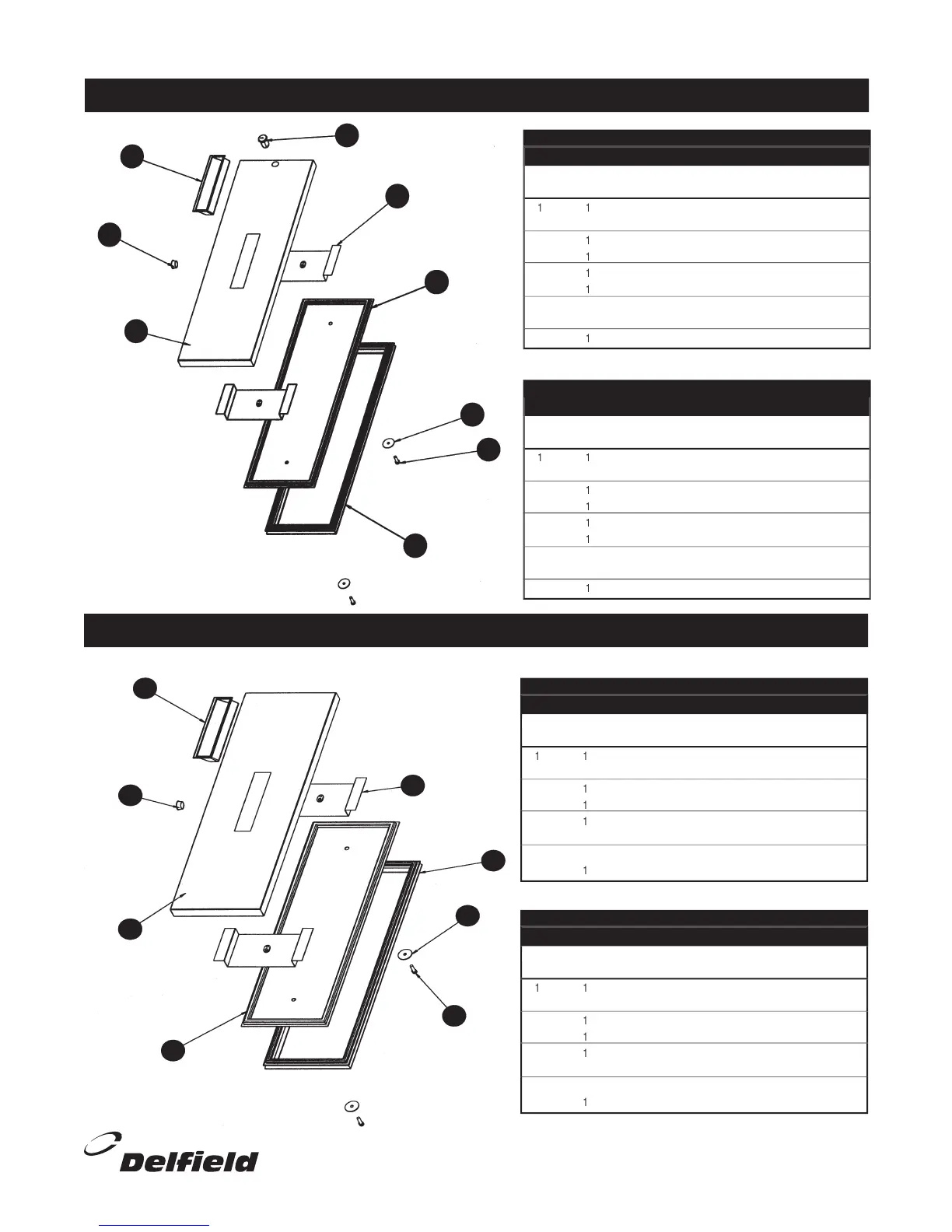

Drawer Front with Locks, 27” & 32”
Drawer Front without Locks, 27” & 32”
