Part Number GA_SM 08/18 51
Section 7 Component Check Procedures

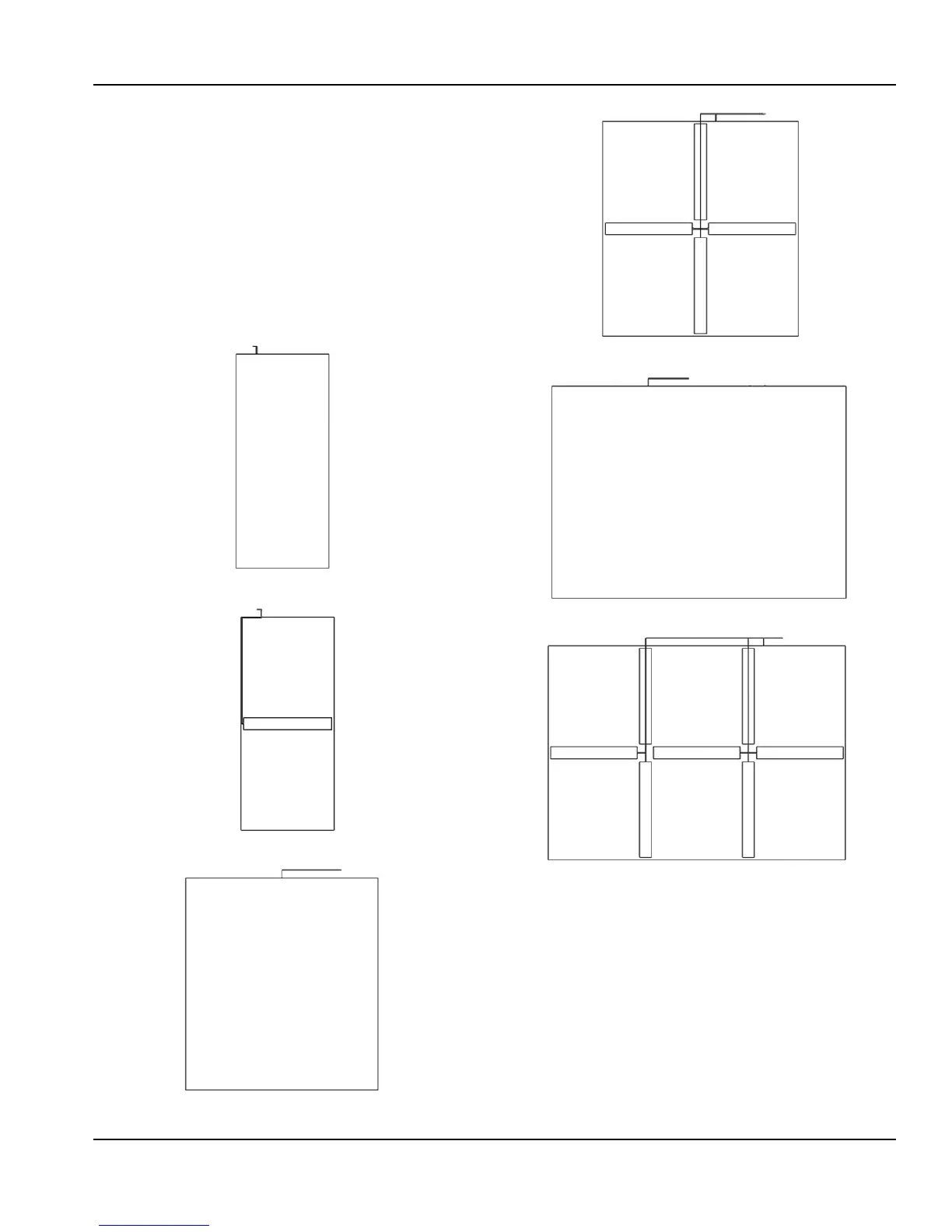

Frame Heater Routing
Full door units have only a perimeter heater wire.
Half door units have perimeter heater wires and horizontal
mullion heater wires.
• Each end of a heater wire connects to a harness.
• The connections should be made above the cabinet.
• Heater wires should be fed in from the top of the
cabinet.
• There should be no wiring connections made inside the
extrusions behind the stainless steel gasket channels.
1 Section Full Door Freezer
1 Section Half Door Freezer
2 Section Full Door Freezer
2 Section Half Door Freezer
3 Section Full Door Freezer
3 Section Half Door Freezer
