52 Part Number GA_SM 08/18

Component Check Procedures Section 7

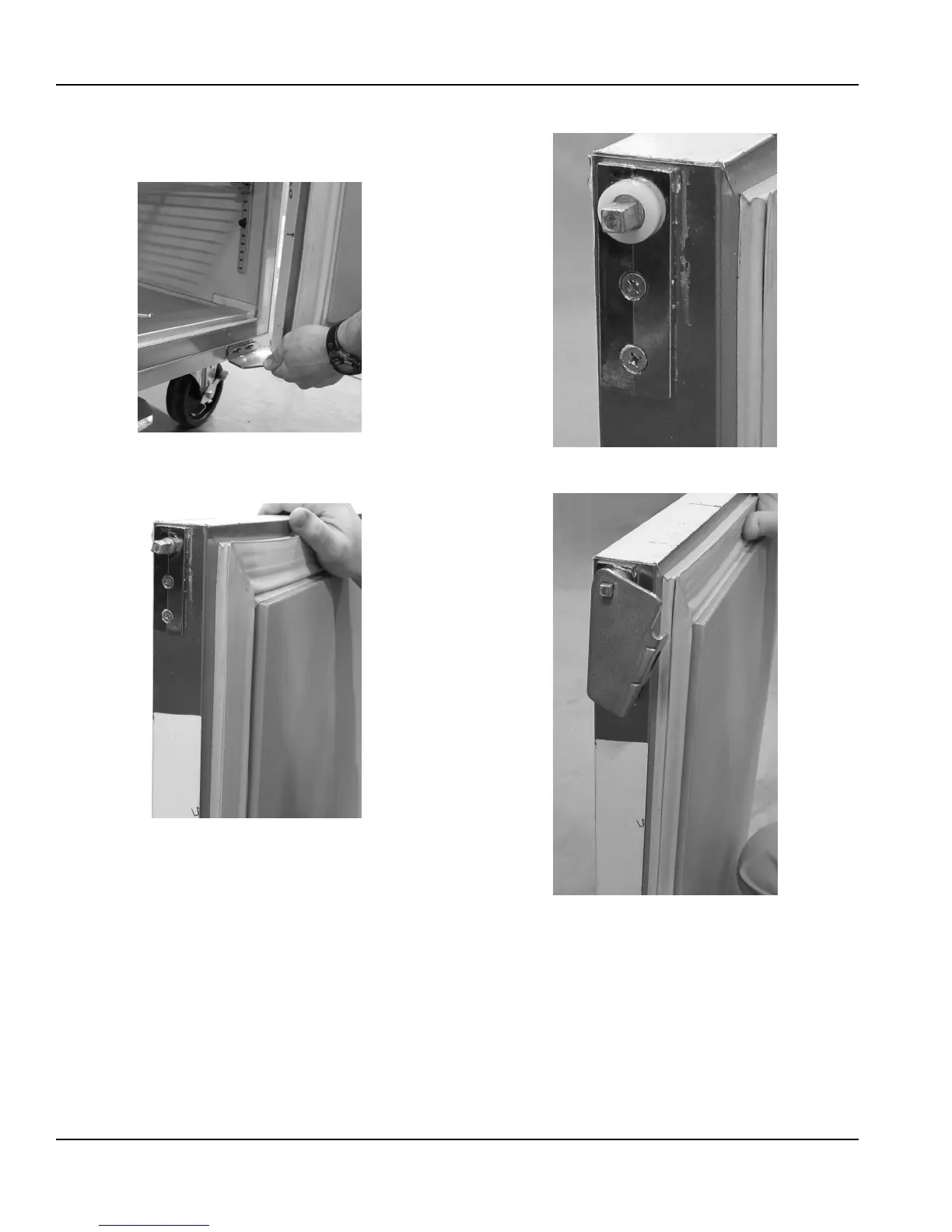

Door Hinges

1. With a 3/8” nut driver remove the nuts and bottom

hinge from the unit.

2. Remove door from unit.

3. Remove two screws from the bottom of the door to

replace the hinge cartridge.

4. Place a white spacer on the bottom hinge pin.

5. Place the hinge on the hinge pin, rotate it and ensure

there is tension in both directions.

Default Chapter3
- Table of Contents3
Section 15
General Information5
- Model Numbers5
- Serial Number Information5
- Warranty Information5
- Regulatory Certifications5
Section 27
Installation7
- Location7
- Clearance Requirements7
- Drain Connections7
  - Floor Drain Required7
- Weight, Capacity & Dimensions of Equipment8
- Electrical Service9
- Leg & Caster Installation11
- Level & Stable12
- Shelf Installation12
- Reversible Door Instructions12
  - Applicable to Full Door Models12
- Roll-In & Roll-Thru Installation13
- New Hinge Cartridge Installation14
- Accessory Interior Drawer Installation14
- T-1 Tray Slide Installation15
- Tray Slide Installation16
- T-3 Tray Slide Installation17
- T-4 Rack Slide Installation18
- Optional Foot Pedal Installation Instructions19
Section 321
Operation21
- Refrigerator & Freezer Operation21
- Refrigerator & Freezer Start up21
  - Evaporator Fan Operation22
- Heated Cabinet Operation22
- Heated Cabinet Start up22
  - Fan Operation22
  - High Temperature Safety Device23
- Power down23
- Home Screen23
- Touchscreen Password24
- Configuration Screen25
- Settings Screen25
- Units26
- Defrost Type (Refrigerator & Freezer)26
- Set Box Temperature27
- Alarm Management28
- Network Connection28
- Interior Light29
- Time / Date30
- Language30
- LCD Brightness31
- Manual Defrost31
- Web Application31
  - Kitchenconnect31
- Mobile Application31
  - Specification Line Connect31
- Application Operation32
  - Equipment Management32
Section 433
Maintenance33
- Responsibility33
- Interior Cleaning34
  - Gaskets34
  - Preventing Blower Coil Corrosion34
- Exterior Cleaning34
  - Drain34
  - Doors/Hinges34
- Cleaning the Condenser Coil34
Section 535
Troubleshooting35
- Problem -> Cause -> Correction Chart35
Section 637
Control37
- Service Screens37
Section 749
Component Check Procedures49
- Evaporator Fan Access49
- Condenser Fan Access50
- Unit Air Flow Design50
- Frame Heater Routing51
- Door Hinges52
- Temperature Probe Resistance53
- LED Light Replacement54
- Door Gasket55
Refrigeration57
Section 857
R29057
- Charging Procedures57
- System Contamination Clean-Up58
- Mild System Contamination Clean-Up Procedure59
- Severe Contamination Clean-Up Procedure59
- Filter Driers60
- Refrigerant Re-Use Policy60
- Properties of R-290 (Propane)61
- Service Procedures62
- Review63
- Normal Operating Temperatures64
Diagrams95
Section 995
- Refrigerator Wiring Diagram95
- Freezers with One Compressor Wiring Diagram96
- Freezers with Two Compressors Wiring Diagram97
- One Section Dual Temperature Wiring Diagram98
- Two Section Dual Temperature Wiring Diagram99
- One Section Heated Cabinet Wiring Diagram100
- Two Section Heated Cabinet Wiring Diagram101
