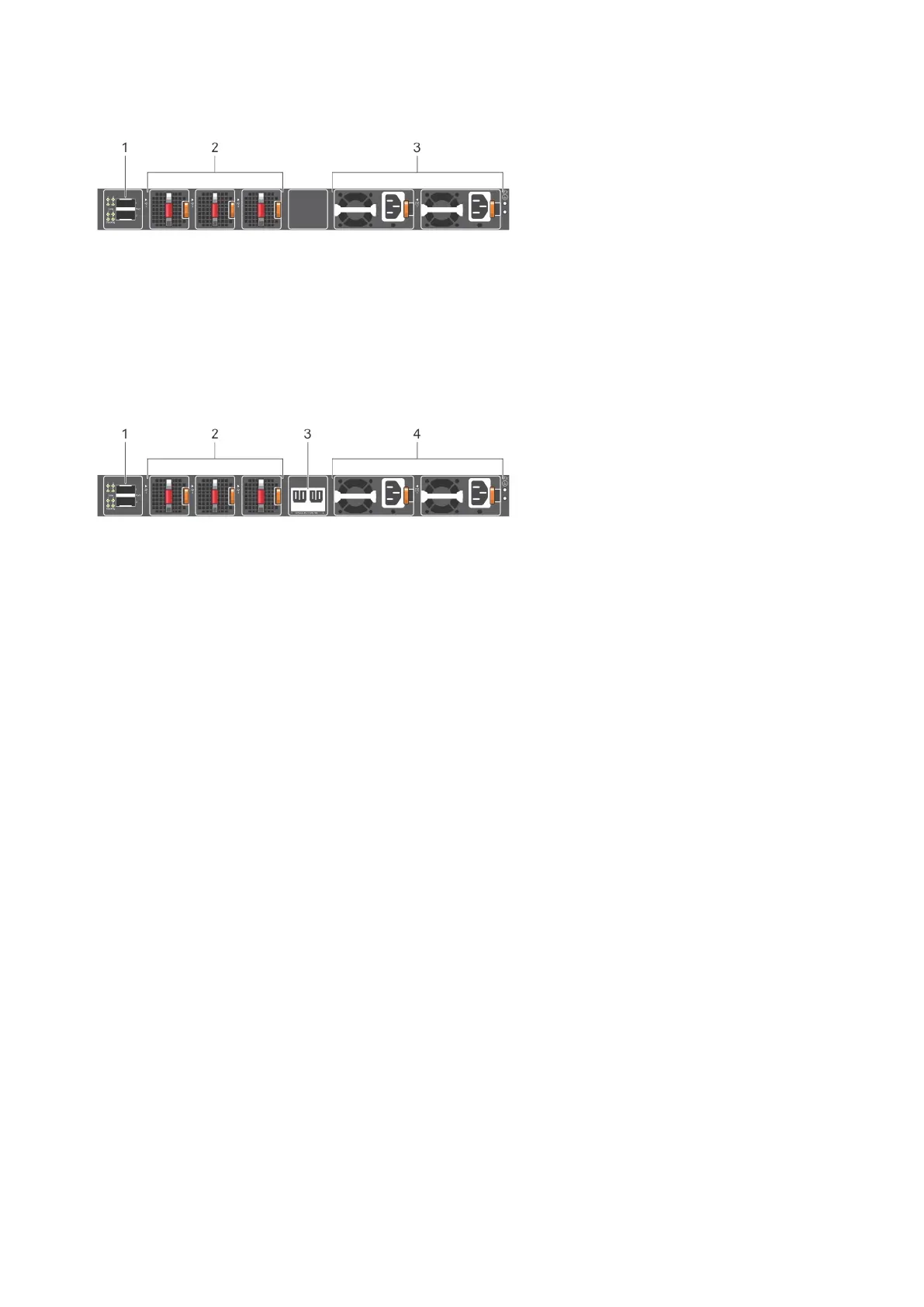

1. 100G QSFP28 stacking ports
2. Fans
3. AC or DC PSUs
N3224PX-ON, N3248P-ON, N3248PXE-ON PSU-side view
1. 100G QSFP28 stacking ports 2. Fans
3. EPS connections 4. AC or DC PSUs
Features
The N3200-ON Series switch offers the following features:
● Ports:
○ N3208PX-ON—Compact, four ports 1GBASE-T RJ45 with 802.3bt Type-4 90W PoE, four ports 5GBASE-T RJ45 with
802.3bt Type-4 90W PoE, and two ports 10G SFP+
○ N3224T-ON—1U, 24 ports 1GBASE-T RJ45, four ports 10G SFP+, and two ports 100G QSFP28 for stacking
○ N3224F-ON—1U, 24 ports 1GBASE-T RJ45, four ports 10G SFP+, and two ports 100G QSFP28 for stacking
○ N3224P-ON—1U, 24 ports 1GBASE-T RJ45 with 802.3at Type-2 30W PoE, four ports 10G SFP+, and two ports 100G
QSFP28 for stacking
○ N3224PX-ON—1U, 24 ports multigigabit 10GBASE-T RJ45 with 802.3bt Type-4 90W PoE, four ports 25G SFP28, and
two ports 100G QSFP28 for stacking
○ N3248TE-ON—1U, 48 ports 1GBASE-T RJ45, four ports 10G SFP+, and two ports 100G QSFP28 for stacking
○ N3248P-ON—1U, 48 ports 1GBASE-T RJ45 with 802.3at Type-2 30W PoE, four ports 10G SFP+, and two ports 100G
QSFP28 for stacking
○ N3248X-ON—1U, 48 ports 10GBASE-T RJ45, four ports 25G SFP28, and two ports 100G QSFP28 for stacking
○ N3248PXE—1U, 48 ports multigigabit 10GBASE-T RJ45 with 802.3bt Type-4 90W PoE, four ports 25G SFP28, and two
ports 100G QSFP28 for stacking
● One MicroUSB Type-B console port
● One USB Type-A port for more file storage
● One RJ45 serial console port
● Two-core Denverton-NS CPU, 4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
● One 10/100/1000BaseT Ethernet management port
● Two pluggable AC or DC PSUs, except N3208PX-ON
● Three pluggable fan modules, except N3208PX-ON
● N3208PX-ON—One fixed AC PSU
● N3208PX-ON—One fan
N3200-ON Series switch
13
