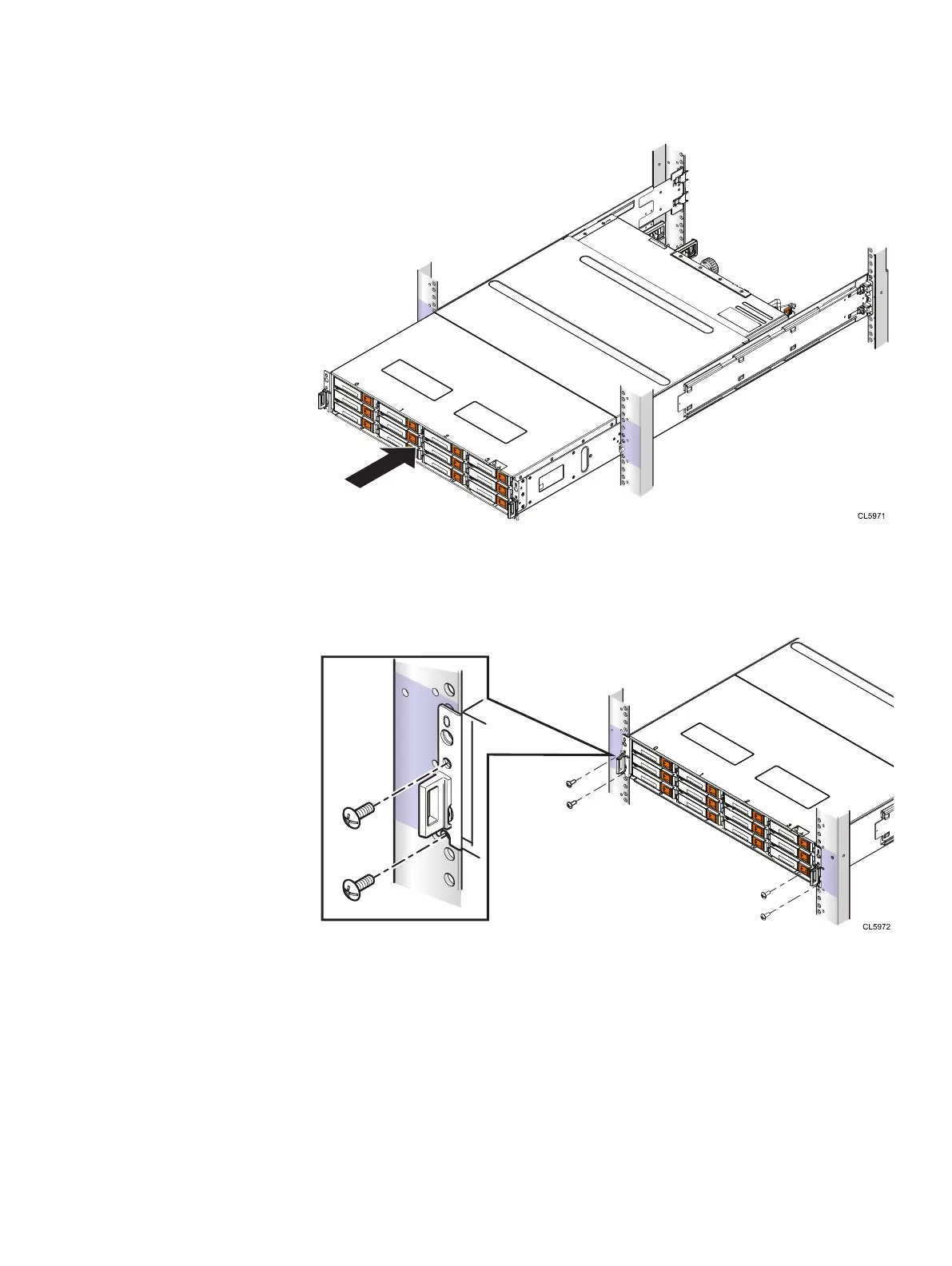

Figure 6 Sliding the enclosure onto the rails
2. Secure the front of the enclosure to the front vertical channels of the cabinet
using four screws (two per side) by installing all four screws, and then
tightening them.
Figure 7
Securing enclosure to the front of the cabinet
Install your storage system components into a rack
Installing the DPE on the rails 23

Dell EMC Unity 300 Specifications

General

Max Drives	150
Form Factor	2U
Operating System	Dell EMC Unity Operating Environment
Protocols	iSCSI, FC, NFS, SMB
Drives Supported	SAS, NL-SAS
Host Connectivity	10GbE, 16Gb FC
RAID Levels Supported	RAID 5, RAID 6
Processor	Intel Xeon E5-2600 v4
