Dell 1707FPc
11
3.3 Adjusting the Picture
NOTE: If you change the settings and then either proceed to another menu, or exit the OSD menu, the
monitor automatically saves those changes. The changes are also saved if you change the settings and then
wait for the OSD menu to disappear.

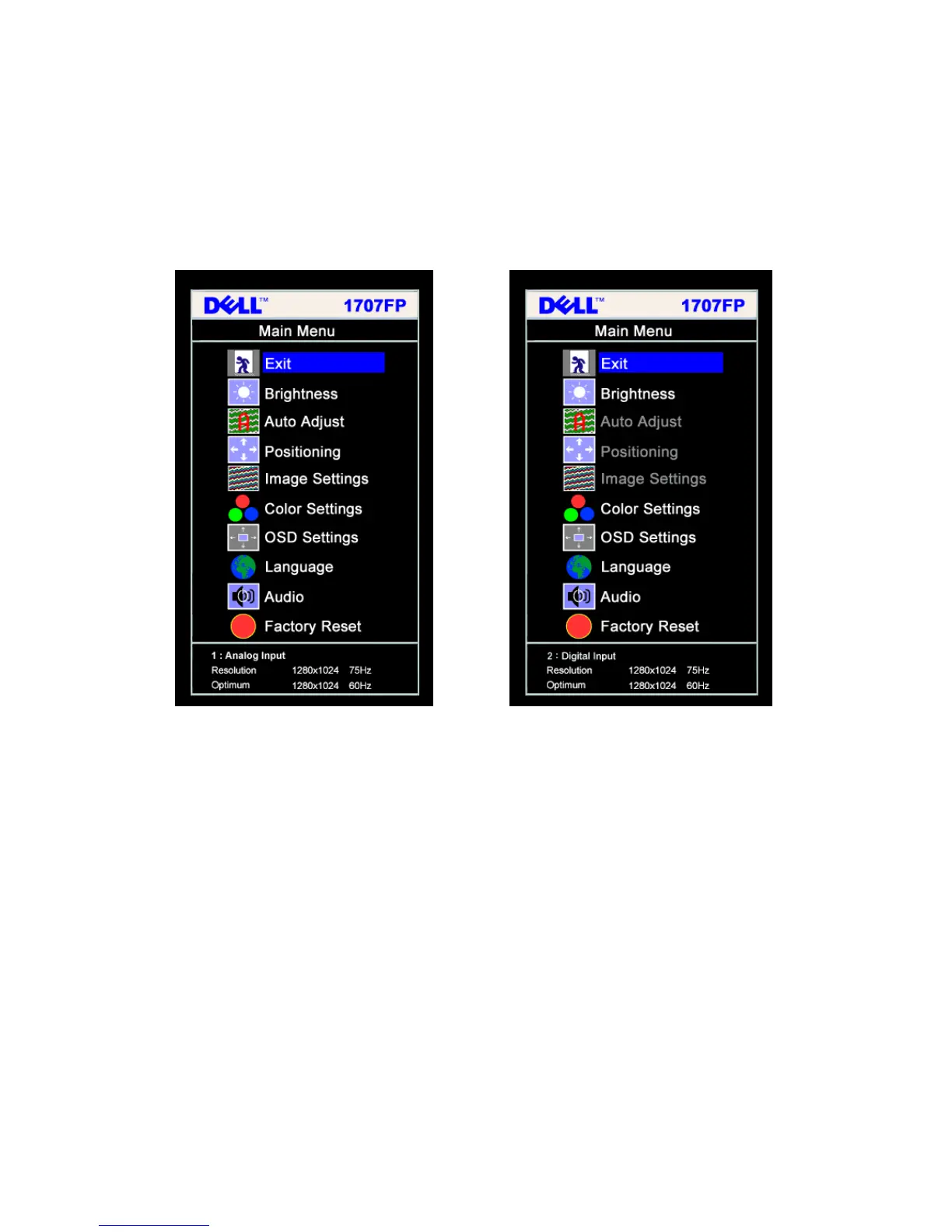

Main Menu for Analog (VGA) Input Main Menu for Digital (DVI) Input
Or
NOTE: Positioning and Image Settings are only available when you are using the analog (VGA)
connector.
1. Push the MENU button to open the OSD menu and display the main menu.
2. Push the - and + buttons to move between the setting options. As you move from one icon to another,
the option name is highlighted. See the table below for a complete list of all the options available for the
monitor.
3. Push the MENU button once to activate the highlighted option.
4. Push - and + button to select the desired parameter.
5. Pus h MENU to enter the slide bar and then use the - and + buttons, according to the indicators on the
menu, to make your changes.
6. Push the MENU button once to return to the main menu to select another option or push the MENU button
two or three times to exit from the OSD menu.
