Dell 1707FPc
46

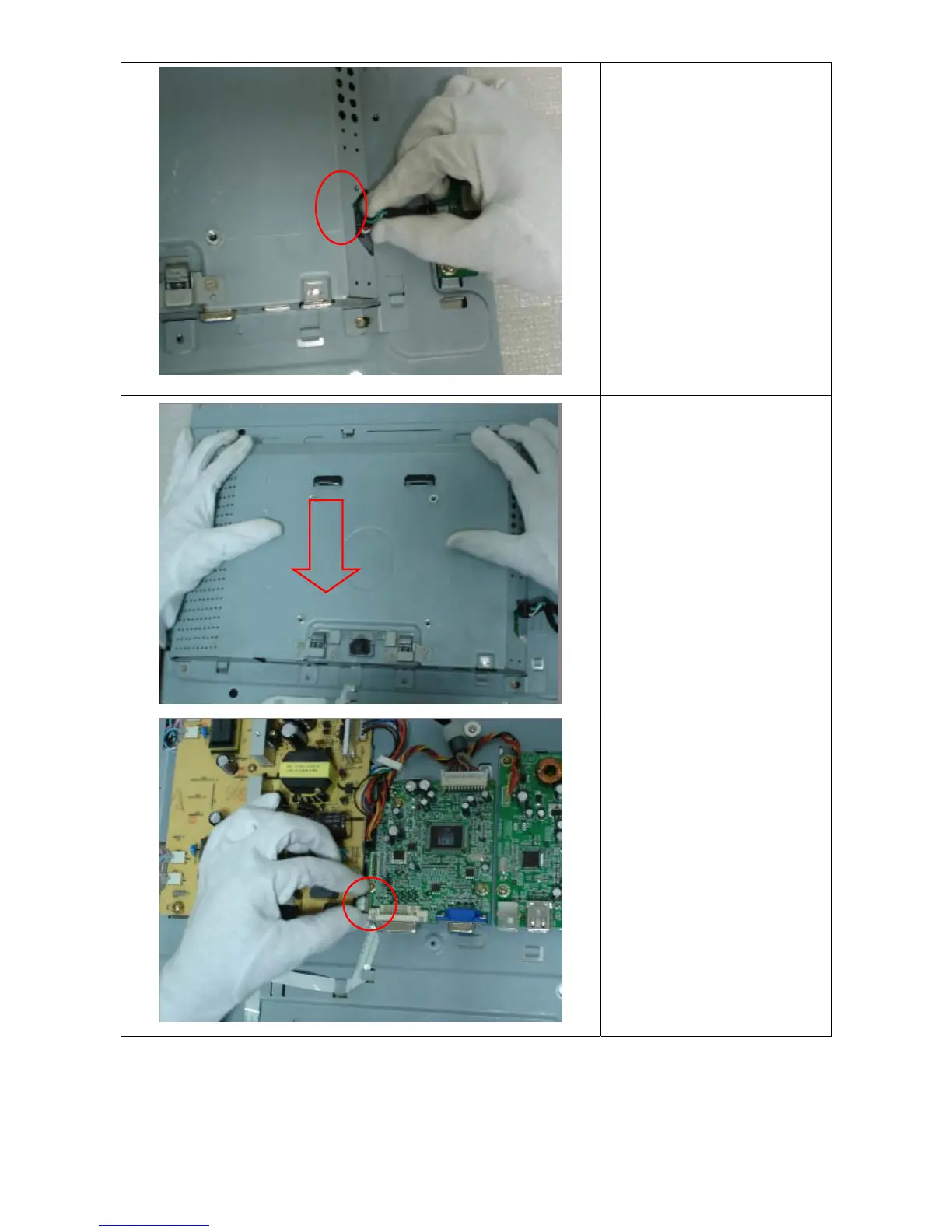

4. Disconnect the wire harness
between USB1 and USB2
5. Push the main shield as
the arrowhead direction
Disconnect the connector pin:
Disconnect the connector pin
between key and main boards
