or
Activate the computer and the monitor to gain access to the OSD.
This monitor is ENERGY STAR®-compliant as well as TCO '99 / TCO '03 power management compatible.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

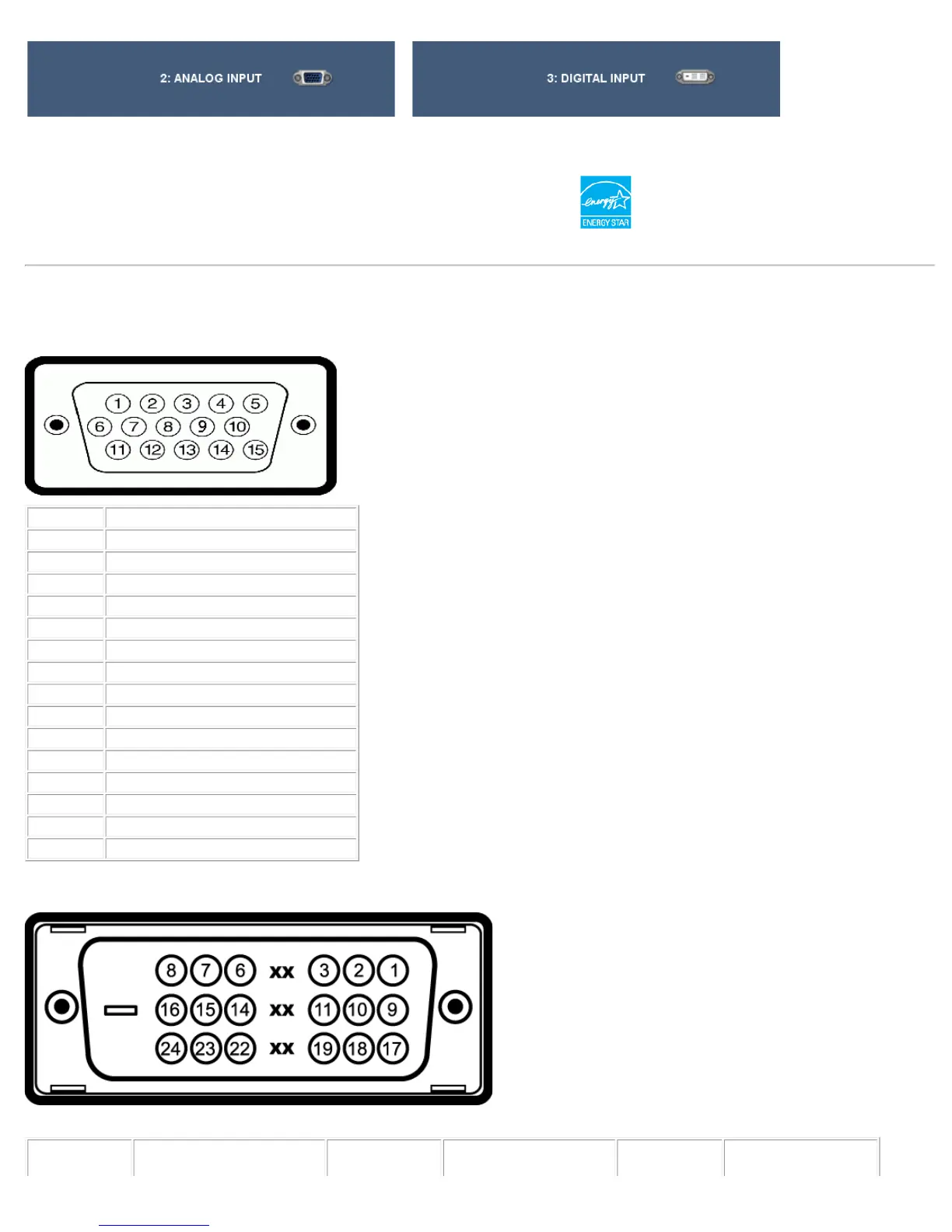

Pin Assignments
VGA Connector
Pin Number 15-pin Side of the Connected Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
DVI Connector
Note: Pin 1 is at the top right.
Pin Number
24-pin Side of the
Connected Signal Cable
Pin Number
24-pin Side of the
Connected Signal Cable
Pin Number
24-pin Side of the
Connected Signal Cable
