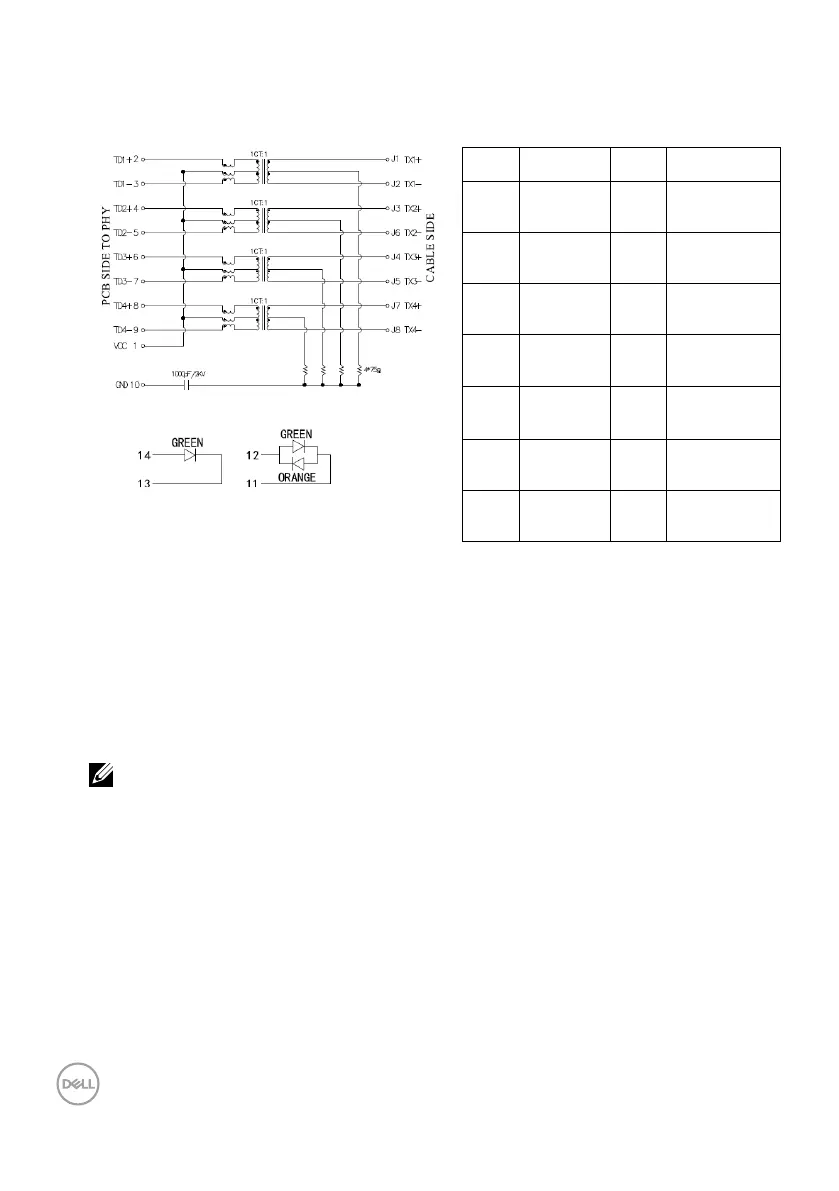

RJ45 Port (Connector Side)
Pin Signal Pin Signal
1 CT 8 TD4+
2 TD1+ 9 TD4-
3 TD1- 10 GND
4 TD2+ 11 GREEN_
ORANGE
5 TD2- 12 GREEN_
ORANGE
6 TD3+ 13 GREEN
7 TD3- 14 GREEN
Driver Installation
Install the Realtek USB GBE Ethernet Controller Driver available for your system.
This is available for download at https://www.dell.com/support under the
“Driver and download” section.
Network (RJ45) data rate via USB-C max speed is 1000 Mbps.
NOTE: This LAN port is 1000Base-T IEEE 802.3az compliant, supporting
Mac Address (Printed on model label) Pass-thru (MAPT), Wake-on-
LAN (WOL) from standby mode (S3 only) and UEFI*PXE Boot function,
these 3 features depend on BIOS setting and OS version.
* UEFI stands for Unified Extensible Firmware Interface.
