Installation 21
4 Connect the devices to your cascaded switch according to the switch manufacturer's
recommendations.
5 Repeat steps 1-4 for all the cascade switches you wish to attach to your Remote Console
Switch system.

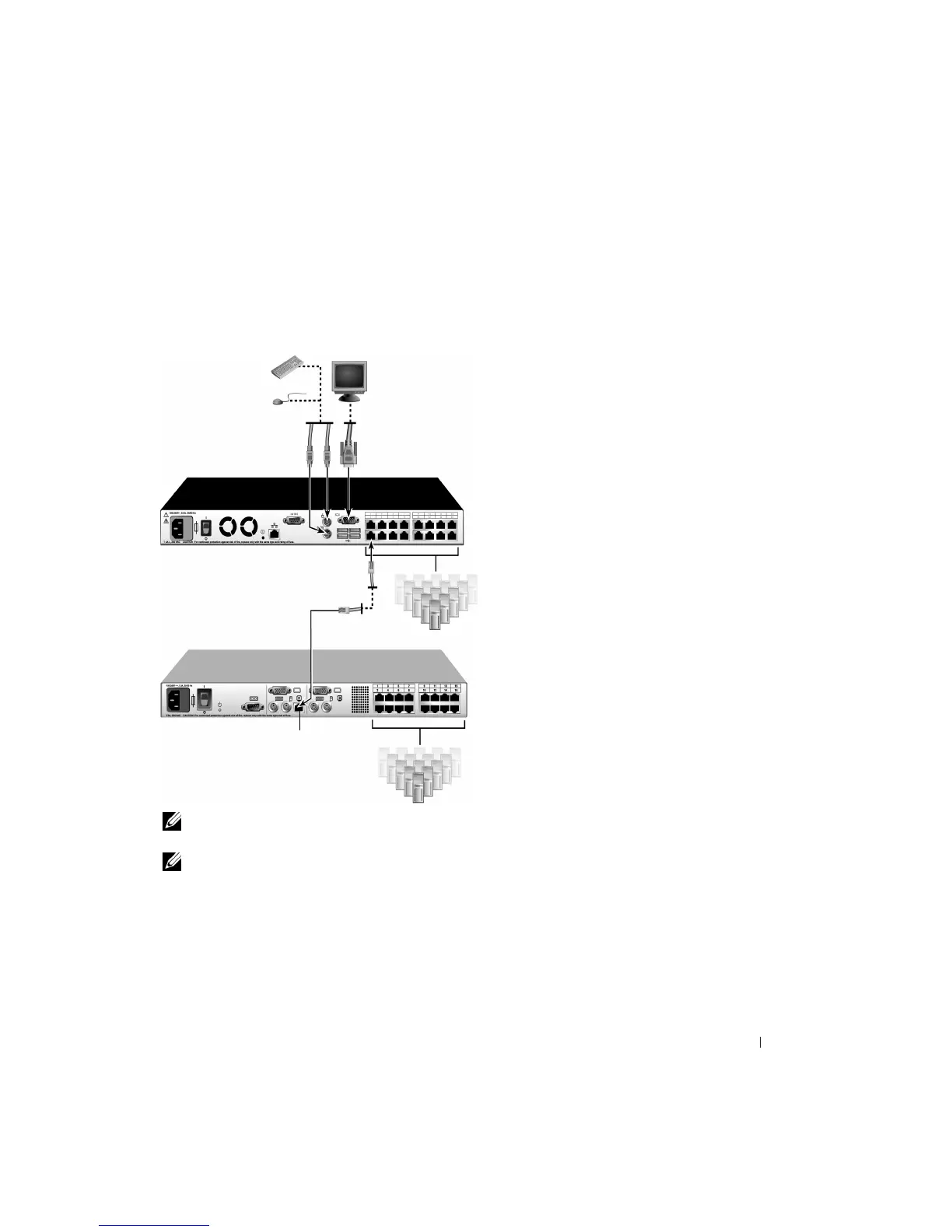

Figure 2-6. 2161DS-2 or 4161DS With a Cat 5 Analog Switch
NOTE: The Remote Console Switch supports only 1 switch per ARI port. You cannot cascade another
switch under this first switch.
NOTE: When cascading with a Remote Console Switch, an 8-port or 16-port analog console switch is
not supported as the primary unit in a cascaded configuration. The Remote Console Switch must be the
primary unit.
Local User
CAT 5
ACI Port
