26 Basic Operations
www.dell.com | support.dell.com

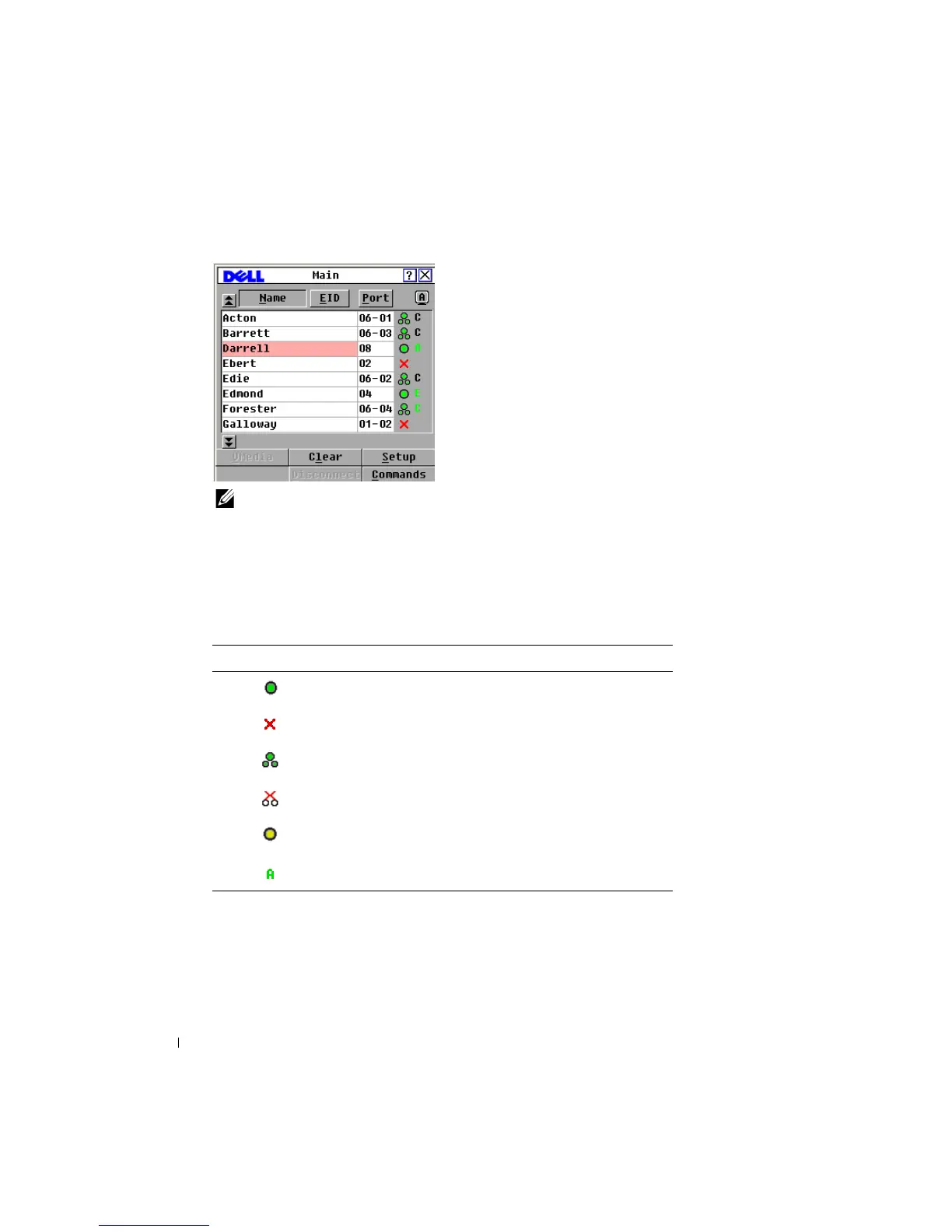

Figure 3-1. Example of a Main Dialog Box
NOTE: You can also press the <Control> key twice within one second to launch the
OSCAR
®
interface. You can use this key sequence in any place you see <Print Screen> throughout this
installer/user guide.
Viewing the status of your switch
The status of the devices in your system is indicated in the right columns of the Main dialog
box. Table 3-1 describes the status symbols.
Table 3-1. OSCAR
®
Interface Status Symbols
Symbol Description
SIP is online.
SIP is offline or is not operating properly.
Connected switch is online.
Connected switch is offline or is not operating properly.
SIP is being upgraded.
Indicates which user channel is currently connected to a SIP.
