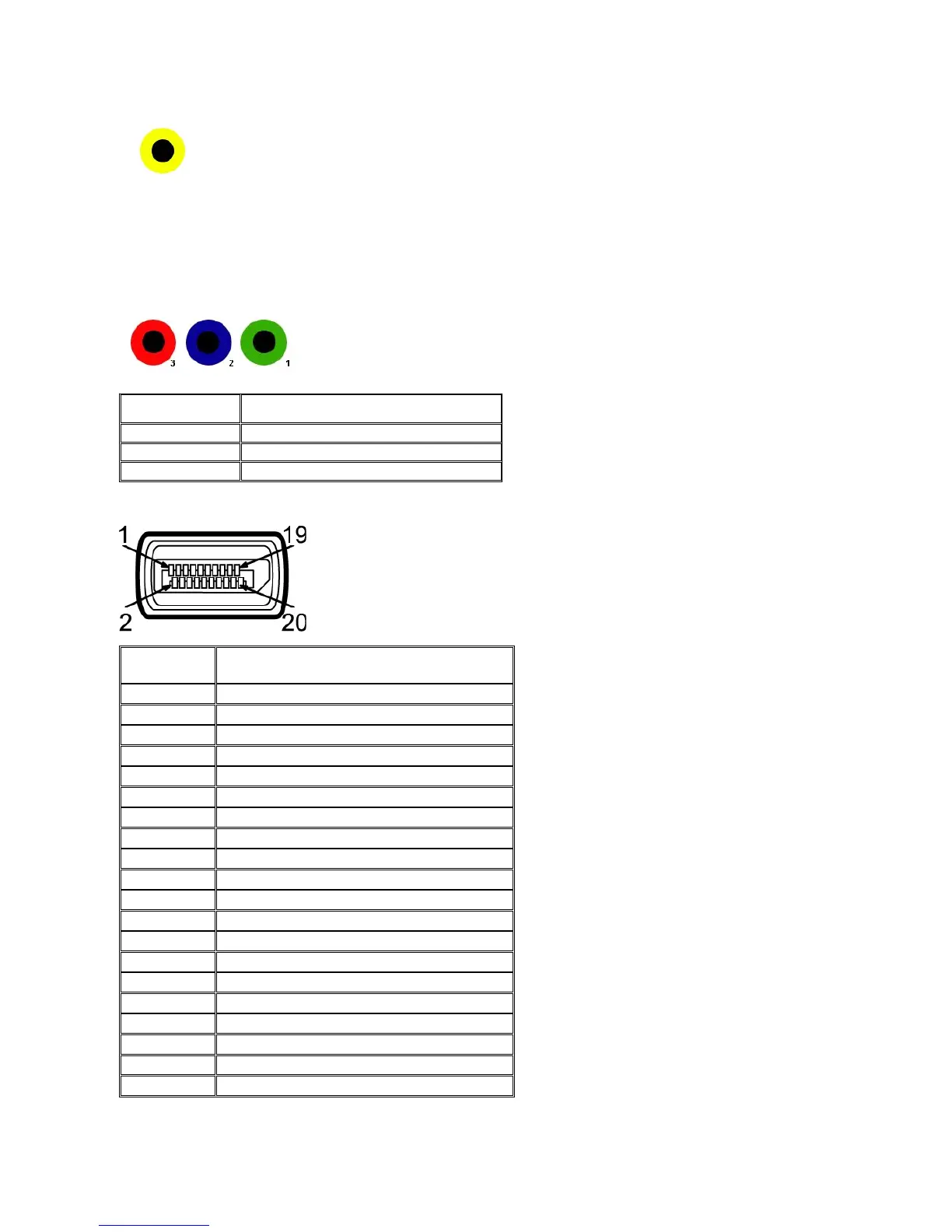

Dell 2709W - Displayport Connector

Luma composite chroma

Component Video Connector

DisplayPort Connector

Pin Number
3-pin Side of the Connected Signal Cable (Cable not
included)
1
Y (Luminance signal)
2
Pb (Color differential signal)
3
Pr (Color differential signal)
Pin
Number
20-pin Side of the Connected Signal
Cable
1
ML0(p)
2
GND
3
ML0(n)
4
ML1(p)
5
GND
6
ML1(n)
7
ML2(p)
8
GND
9
ML2(n)
10
ML3(p)
11
GND
12
ML3(n)
13
GND
14
GND
15
AUX(p)
16
GND
17
AUX(n)
18
HPD
19
Re-PWR
20
PWR
