Dell 3008WFP - Page 6



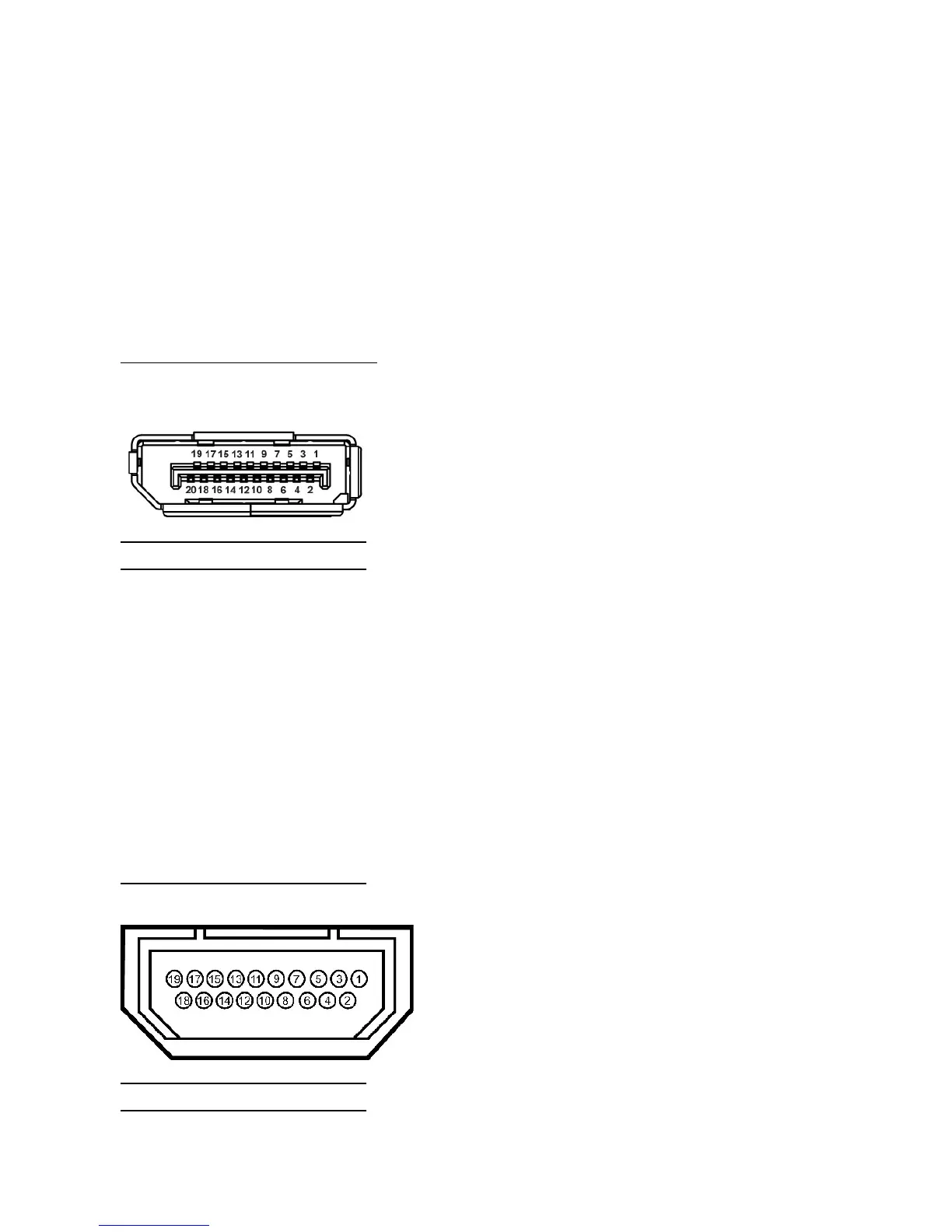

20-pinDisplayPortConnector

19-pinHDMIConnector

11
T.M.D.S. Data 1/3 Shield
12
T.M.D.S. Data 3-
13
T.M.D.S. Data 3+
14
+5V Power
15
Self Test
16
Hot Plug Detect
17
T.M.D.S. Data 0-
18
T.M.D.S. Data 0+
19
T.M.D.S. Data 0/5 Shield
20
T.M.D.S. Data 5-
21
T.M.D.S. Data 5+
22
T.M.D.S. Clock Shield
23
T.M.D.S. Clock +
24
T.M.D.S. Clock -
Pin
Number
20-pin Side of the Connected Signal Cable
1
ML Lane 3(n)
2
GND
3
ML Lane 3(p)
4
ML Lane 2(n)
5
GND
6
ML Lane 2(p)
7
ML Lane 1(n)
8
GND
9
ML Lane 1(p)
10
ML Lane 0(n)
11
GND
12
ML Lane 0(p)
13
GND
14
GND
15
AUX CH (p)
16
GND
17
AUX CH (n)
18
Hot Plug Detect
19
Return
20
DP PWR
Pin
Number
19-pin Side of the Connected Signal Cable
