Dell 3008WFP - Pin Assignments

Pin Assignments

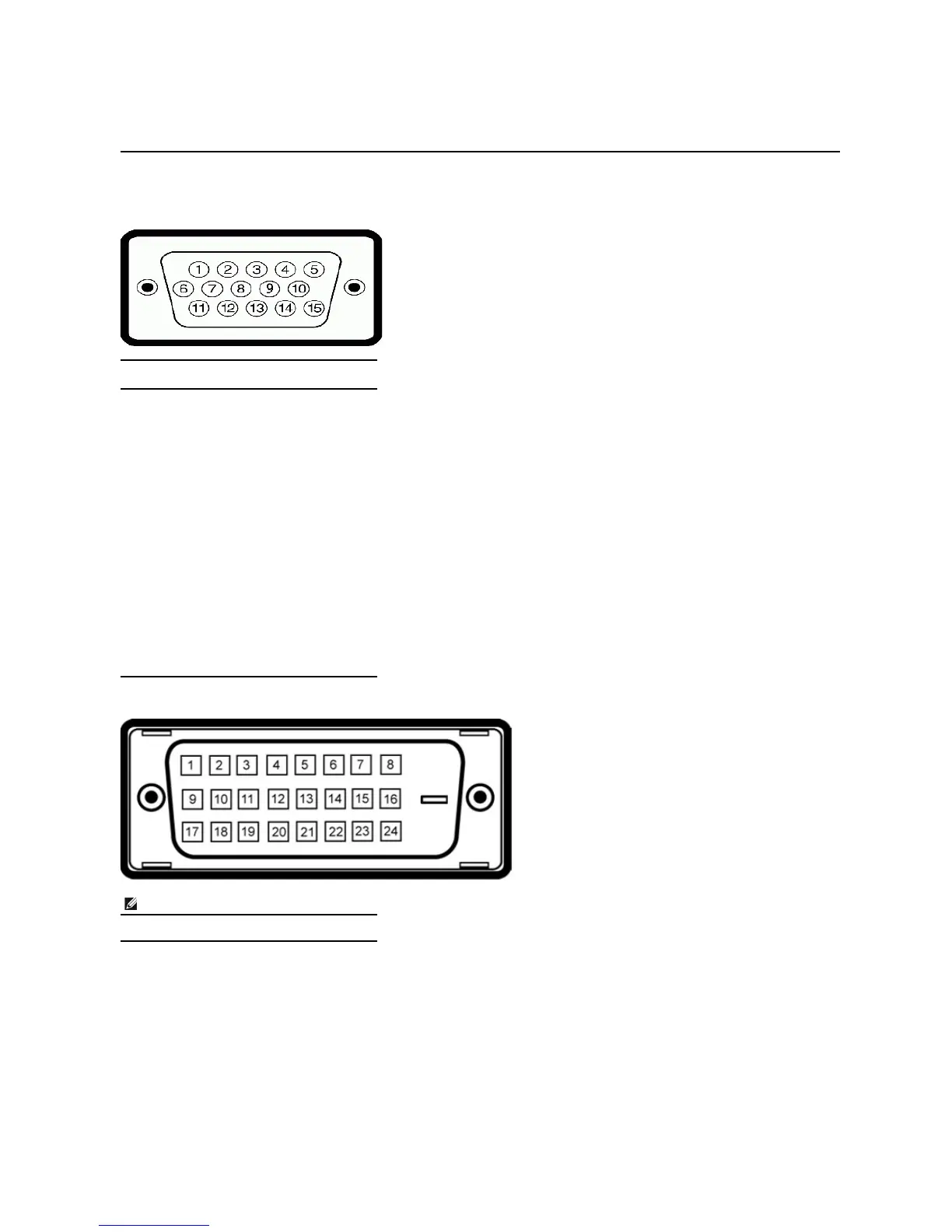

VGA Connector
DVIConnector
Pin
Number
15-pin Side of the Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
DDC-GND
11
GND
12
DDC-SDA
13
H-sync
14
V-sync
15
DDC-SCL
NOTE: Pin 1 is at the top left.
Pin
Number
24-pin Side of the Connected Signal
Cable
1
T.M.D.S. Data 2-
2
T.M.D.S. Data 2+
3
T.M.D.S. Data 2/4 Shield
4
T.M.D.S. Data 4-
5
NT.M.D.S. Data 4+
6
DDC Clock
7
DDC Data
8
No Connect
9
T.M.D.S. Data 1-
10
T.M.D.S. Data 1+
