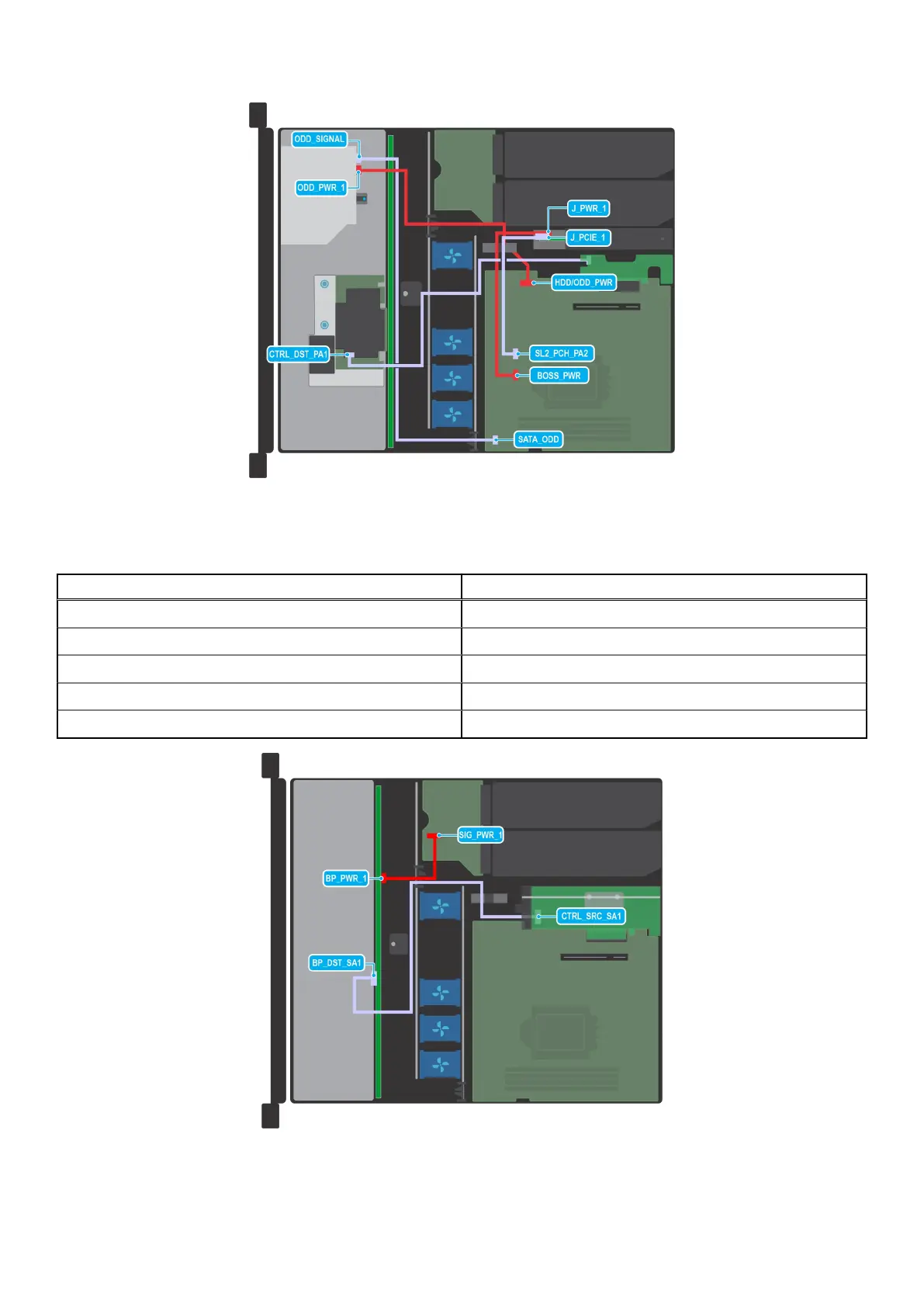

Figure 25. Cable routing - 4 x 3.5-inch drive SAS or SATA backplane with fPERC, and BOSS card
Table 14. Connector descriptions for 4 x 3.5-inch drive SAS or SATA backplane with fPERC, and BOSS
card
From To
SL2_PCH_PA2 ( BOSS signal connector on the system board) J_PCIE_1 ( Signal connector on BOSS card)
BOSS_PWR ( Power connector on system board) J_PWR_1 ( Power connector on BOSS card)
ODD_PWR_1 (ODD power connector) HDD/ODD_PWR (HDD/ODD card power connector)
ODD_SIGNAL (ODD signal connector) SATA_ODD (ODD SATA connector)
CTRL_DST_PA1 (fPERC connector on the backplane) Internal PERC slot on the system board
Figure 26. Cable routing - 8 x 2.5-inch drive SATA backplane with internal PERC
