Dell 3750W - Identifying the UPS Rear Panels

15
Installation
|
Identifying the UPS Rear Panels
This section shows the rear panels of the Dell Online Rack models.
UPS
Communication Bay
2m, L6-30P Power Cord
USB Port
One L6-30 Receptacle
(Load Segment 1)
REPO Ports
RS-232 Port
Ground Screw
Two IEC 320-C19 and Two L6-20 Receptacles
(Load Segment 2)
EBM Connector
Output Circuit Breaker

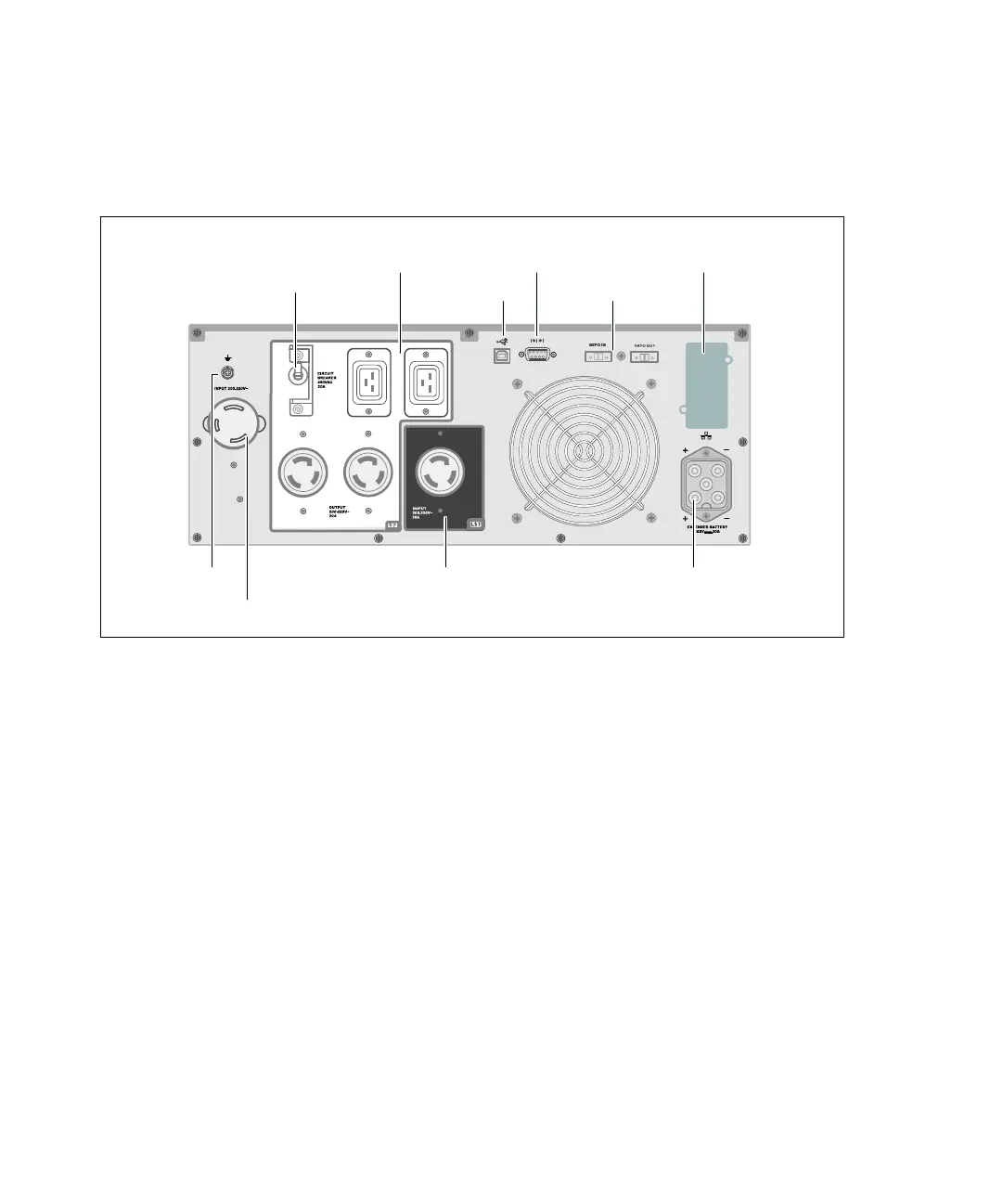

Figure 4. 3750W, 208V Rear Panel
