Removing the battery case
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working
inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1. Remove the
stability foot.
2. Remove the right side-panel. See “Removing the side panels”.
3. Remove the battery.
Procedure
1. Lay the chassis on the left side.
2. Press the release tabs on the cable connector to disconnect the battery-case cable from the I/O board.
3. Remove the two screws (#6-32x5.2) that secure the battery case to the chassis.
4. Lift the battery case off the chassis.

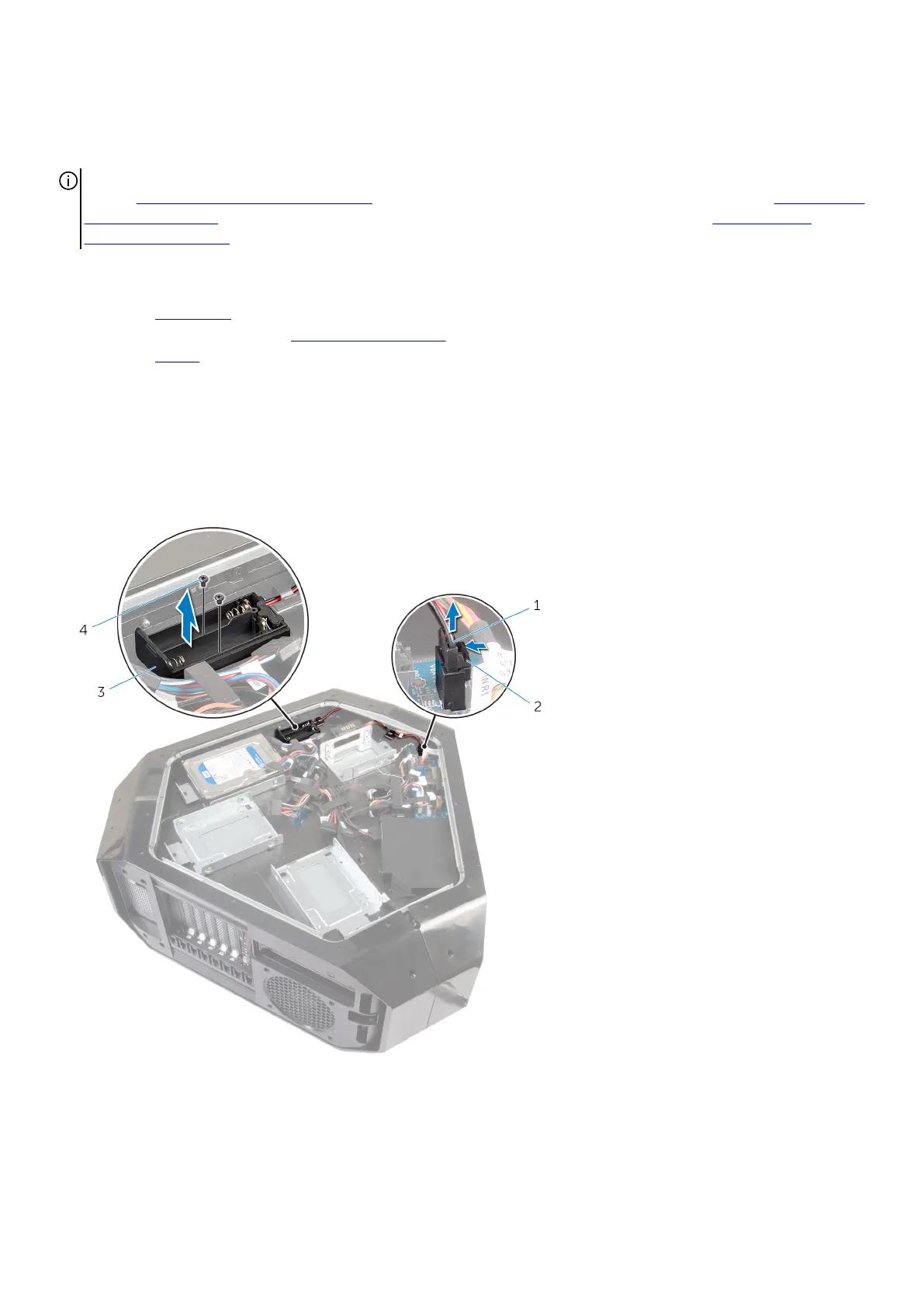

1.
battery-case cable 2. battery-case connector
3. battery case 4. screws (2)
