Replacing the solid-state drive
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working
inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
Procedure
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot and slide the solid-state drive into the solid-state
drive slot.
2. Align the screw hole on the solid-state drive with the screw hole on the system board.
3. Replace the screw (M2x2.5) that secures the solid-state drive to the system board.

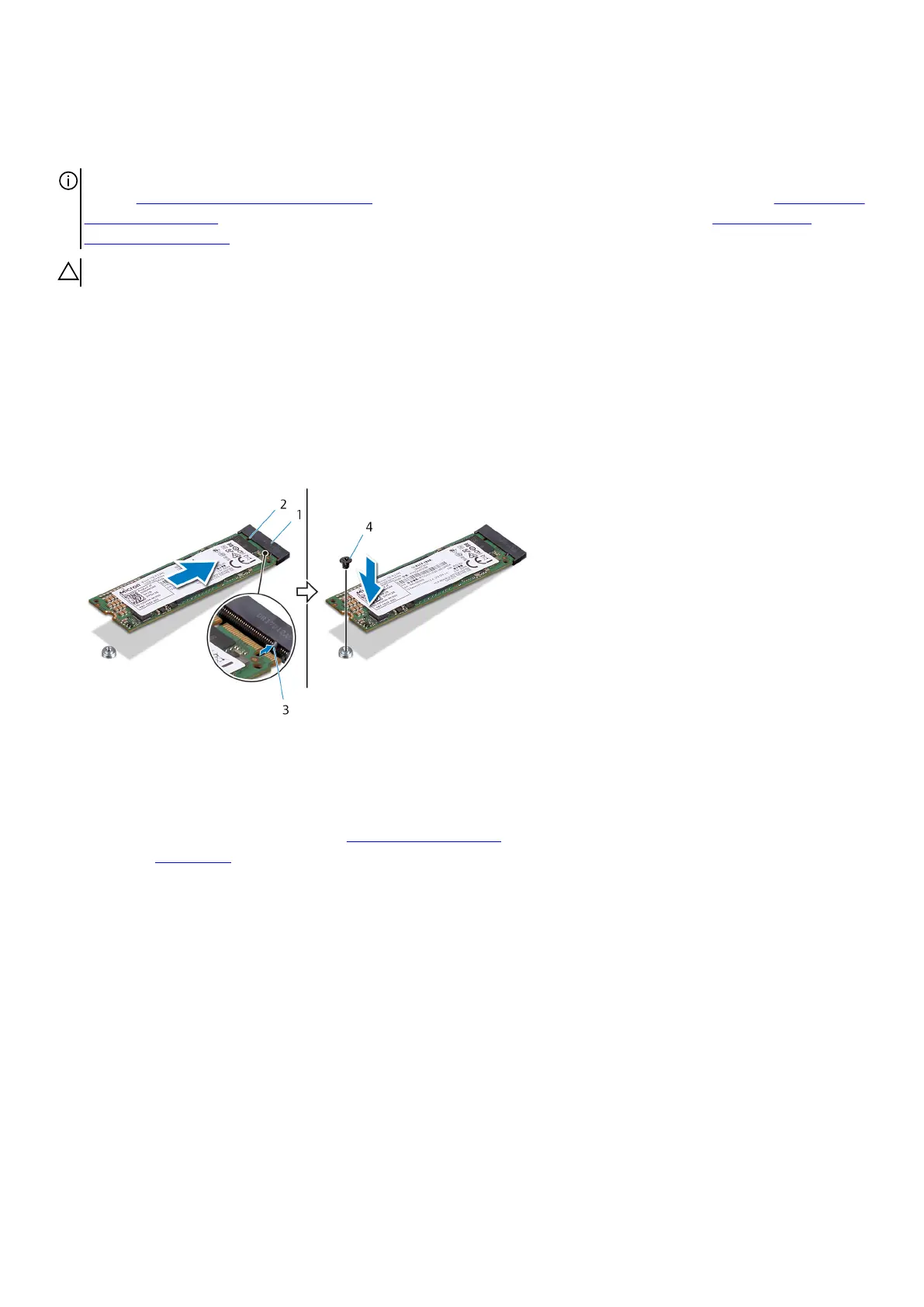

1.
solid-state drive slot 2. notch
3. tab 4. screw
Post-requisites
1. Replace the left and right side-panels. See “
Replacing the side panels”.
2. Replace the
stability foot.
