Dell Alienware Area-51 R4 - Page 53

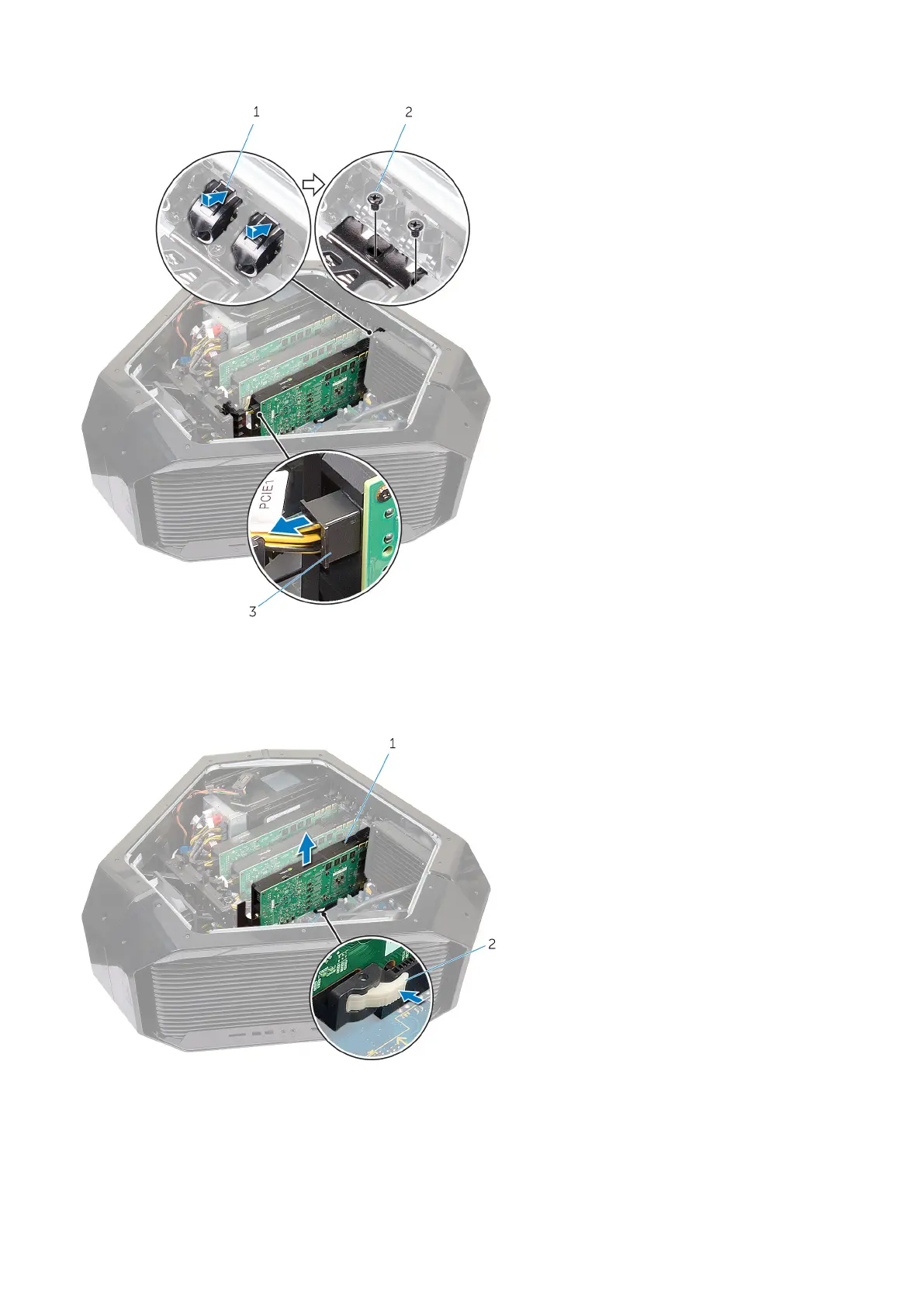

a. screw cover
b. screws (2)
c. power cables (2)
6. Press and hold the securing tab on the card connector, grasp the card by its top corners, and then ease the card out of the card
connector.
a. graphics card
b. securing tab
7. Repeat steps 2 to 7 to remove graphics card on the PCI-Express card connector (SLOT4) and PCI-Express x16 card connector
(SLOT7).
53
