Dell Alienware Area-51 R4 - Page 82

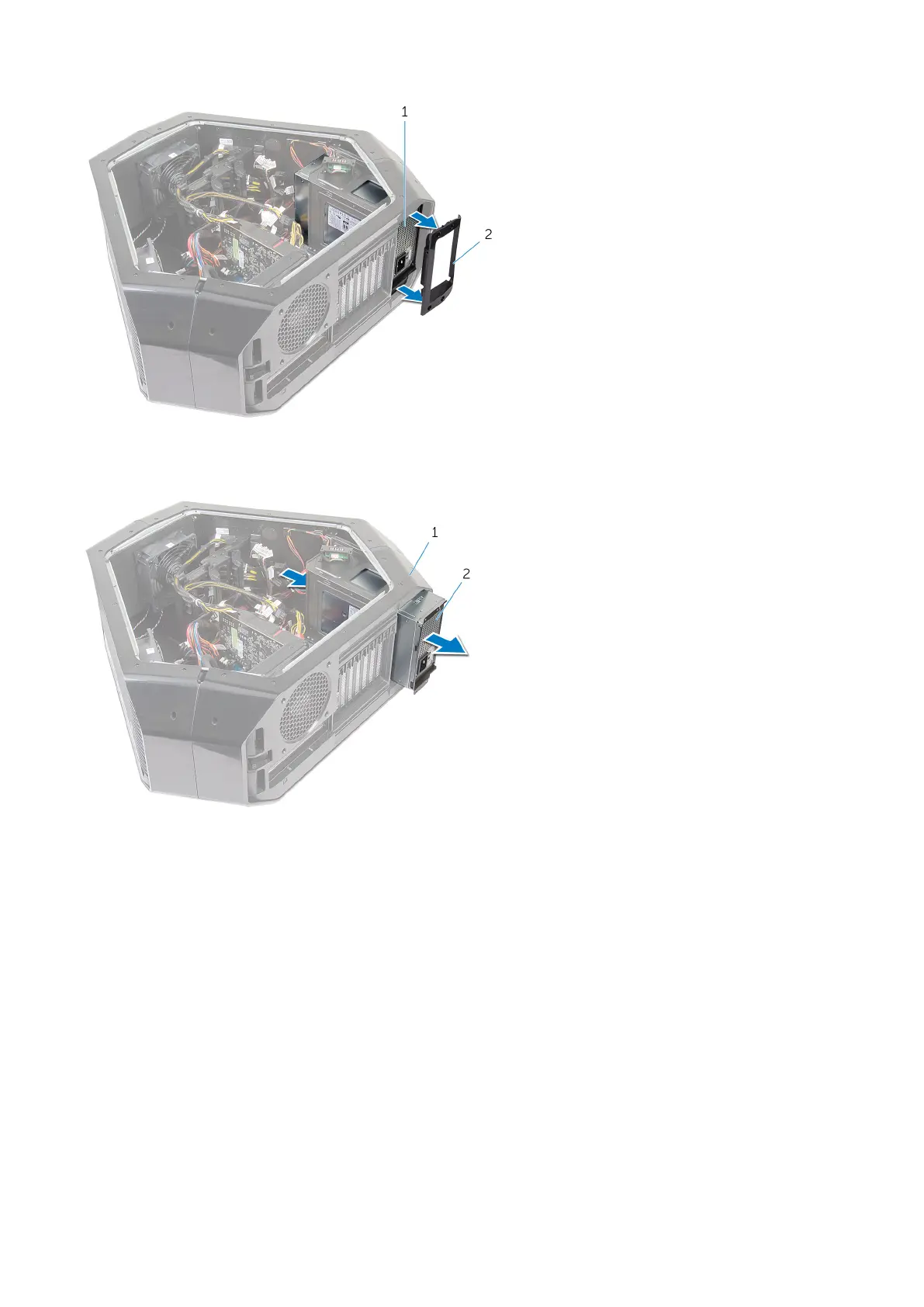

a. power-supply unit
b. power-supply unit cover
5. Slide the power-supply unit out through the back of the chassis and remove it from the computer.
a. chassis
b. power-supply unit
6. Slide and remove the metal bracket from the power-supply unit.
82
