Dell Alienware Area-51 R4 - Page 93

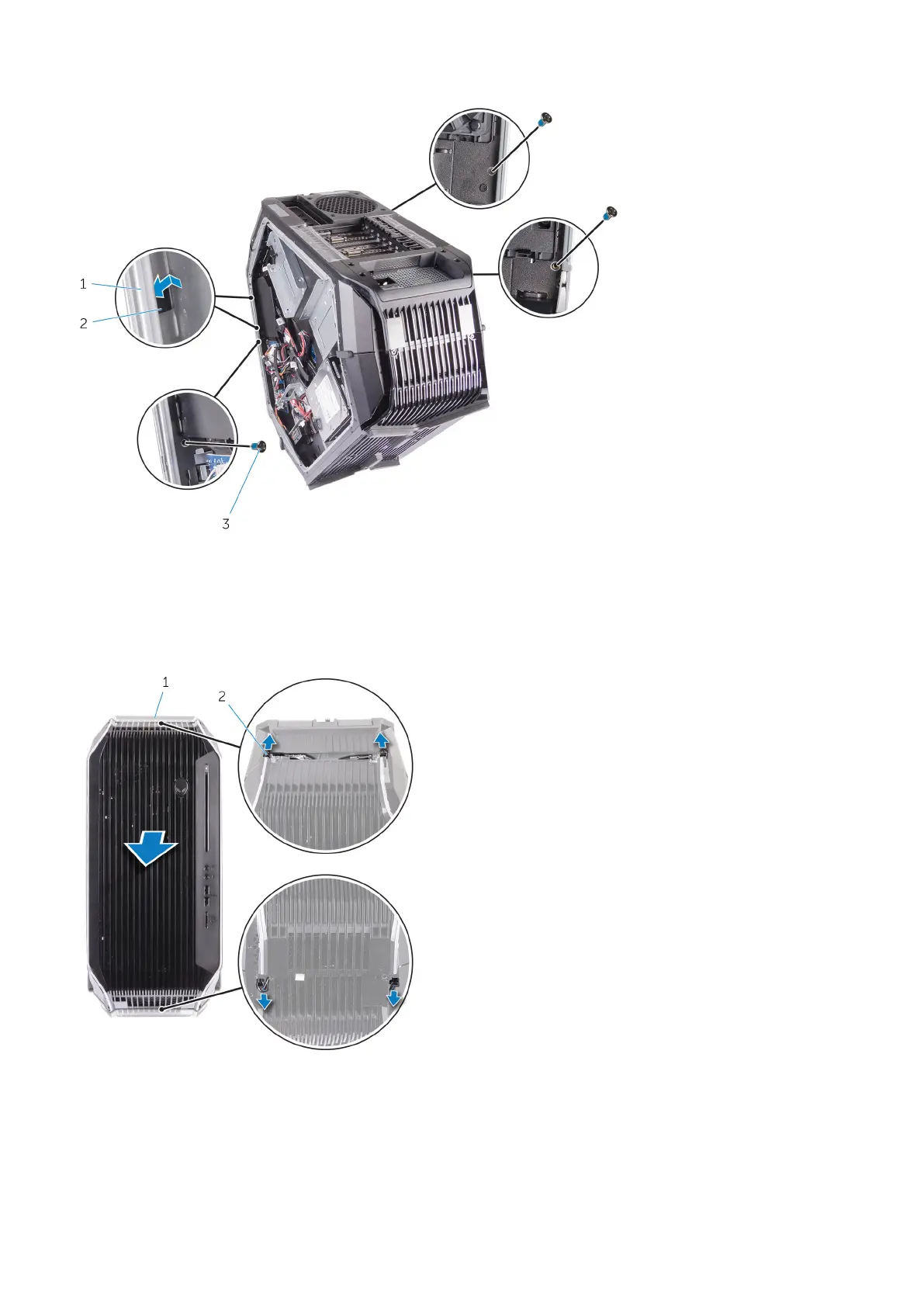

a. chassis
b. tabs (2)
c. screws (3)
5. Pull the connector downwards and then disconnect the bottom tron light-cables from the front bezel.
6. Pull the connector downwards and then disconnect the top tron light-cables from the front bezel.
7. Pull the front bezel off the chassis.
a. front bezel
b. tron-light cables
93
