Procedure

1 Connect the lighting cable to the right-side cover.

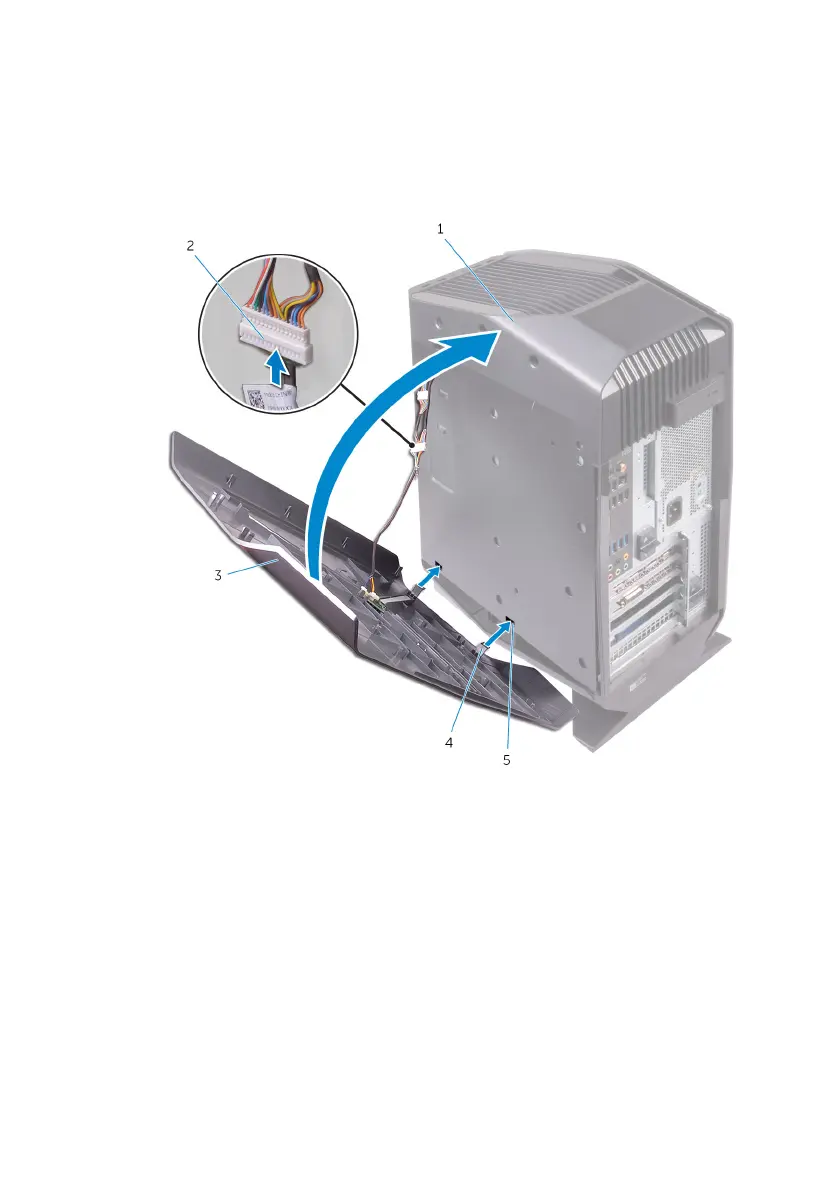

Figure 4. Connecting the lighting cable

a chassis

b lighting cable

c right-side cover

d tabs

e slots

Main Page
