3 Lift the processor fan and heat-sink assembly off the system board.

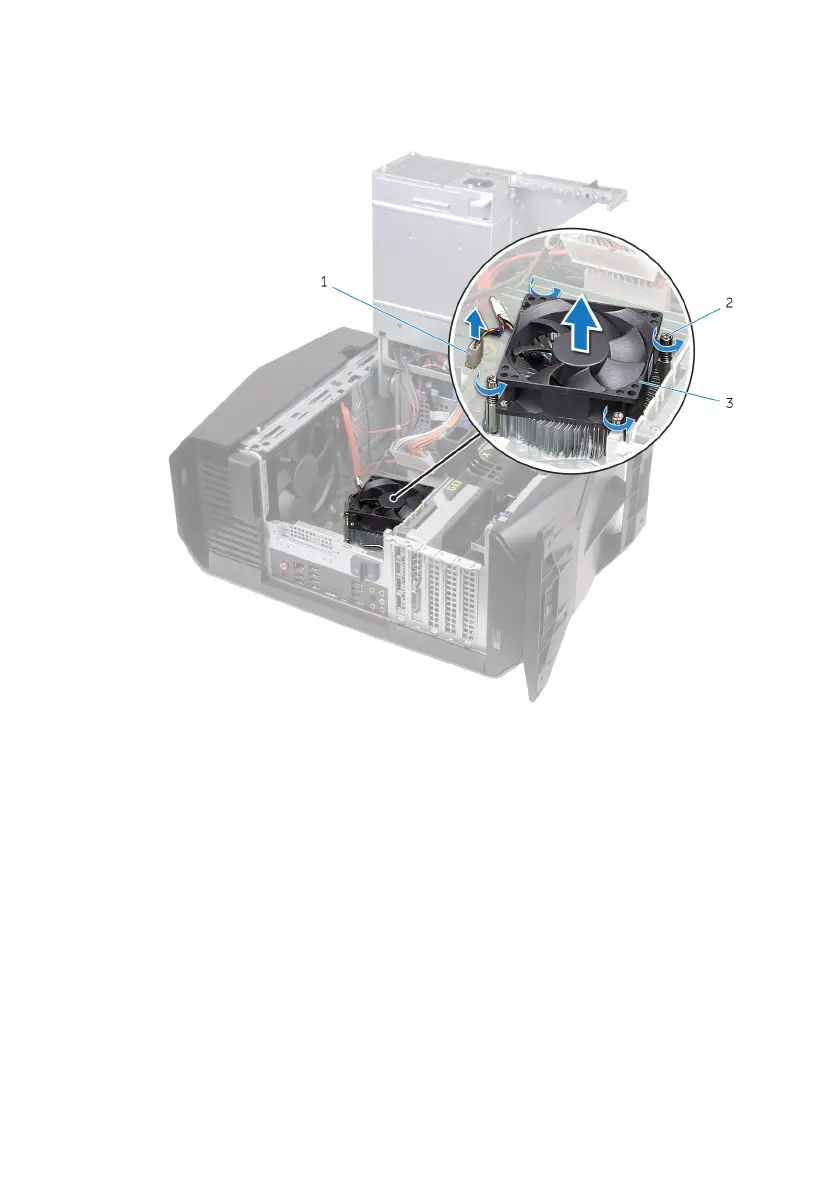

Figure 26. Removing the heat sink assembly

1 processor-fan cable 2 captive screws (4)

3 processor fan and heat-sink

assembly
