2 Push down the antenna cables towards the top of the computer through the

cable-routing slot on the chassis.

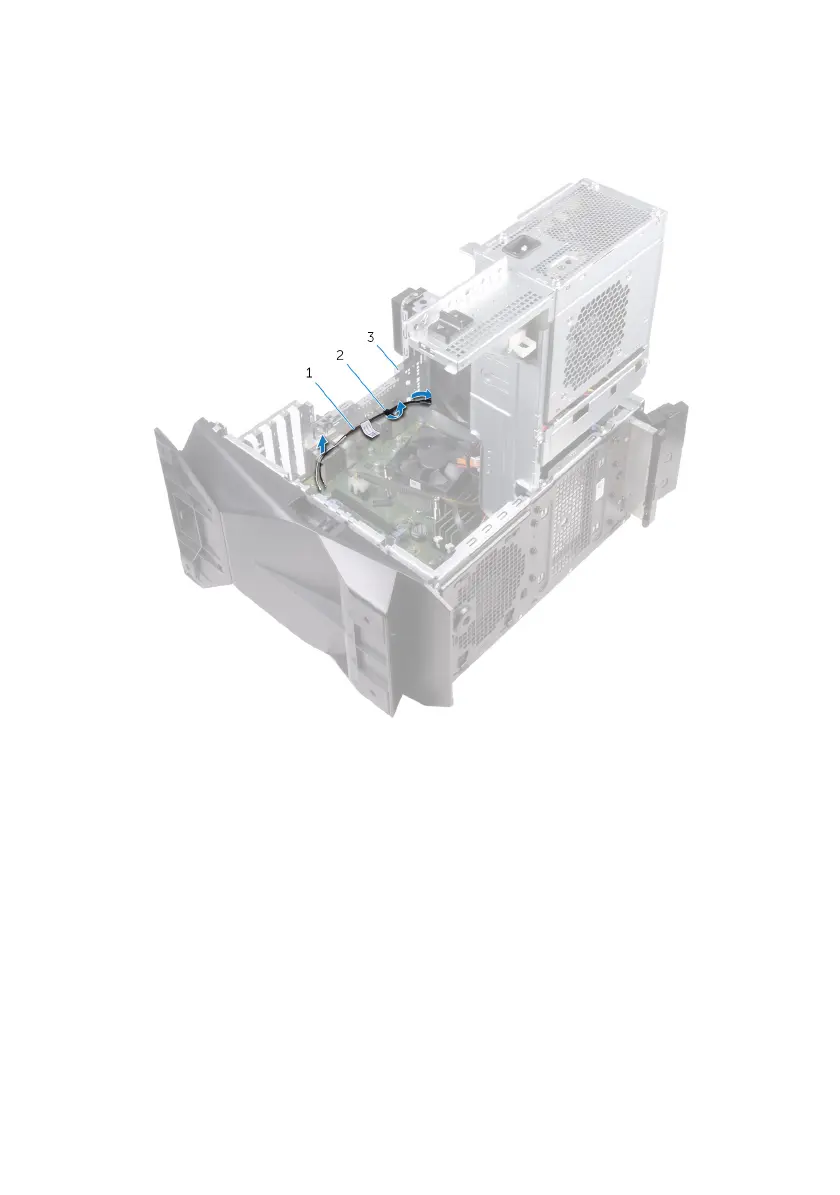

Figure 31. Removing the antenna cables

1 antenna cables 2 routing guides

3 chassis

3 Remove the antenna cables from the routing guides on the chassis.
