Dell B3460DN Mono Laser User Manual

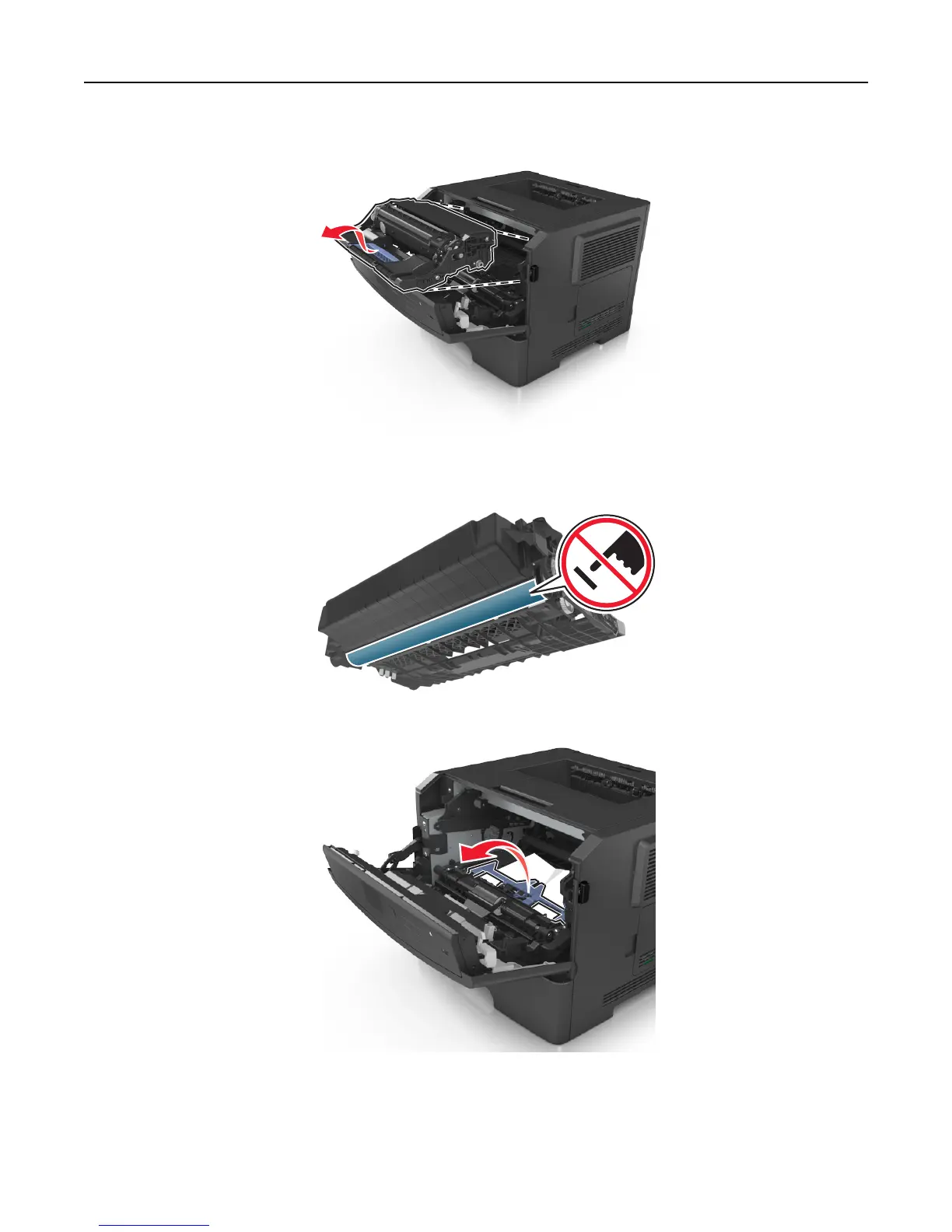

3 Lift the blue handle, and then pull the imaging unit out of the printer.
Warning—Potential Damage: Do not touch the shiny blue photoconductor drum under the imaging unit. Doing
so may affect the quality of future print jobs.
4 Lift the blue flap in front of the printer.
5 Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Clearing jams 109

Dell B3460DN Mono Laser Specifications

General

Print Resolution	1200 x 1200 dpi
Input Capacity	650 sheets
Output Capacity	250 sheets
Processor Speed	800 MHz
RAM	256 MB
Print Technology	Laser
Monthly Duty Cycle	150000 pages
Standard Connectivity	USB 2.0
Operating System Compatibility	Windows, Linux, Mac OS
Warranty	1 year
Print Speed	Up to 50 ppm
