Steps
1. Remove the adhesive tape from the antenna.
2. Align the hole on the antenna with the stand on the chassis.
3. Replace the screw (M3x3) to secure the antenna to the chassis.
4. Using a plastic scribe, route the black antenna-cable under the system board and through the cable clip.
Next steps
1. Install the WLAN card.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Removing the internal antenna in Location 2
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the WLAN card.
About this task

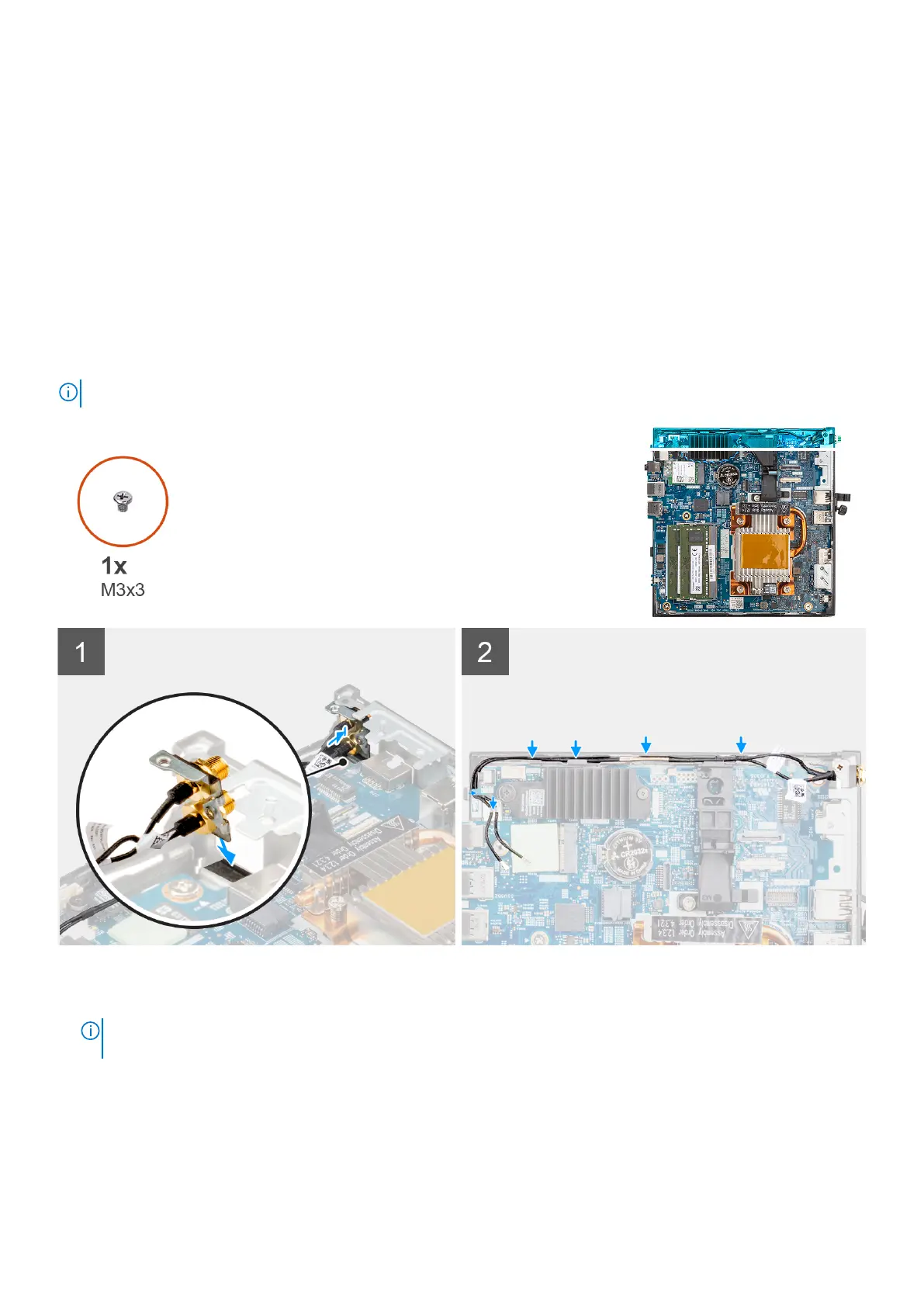

The following image indicates the location of an internal antenna in location 2 and provides a visual representation of the
removal procedure.
