Installing the WLAN card

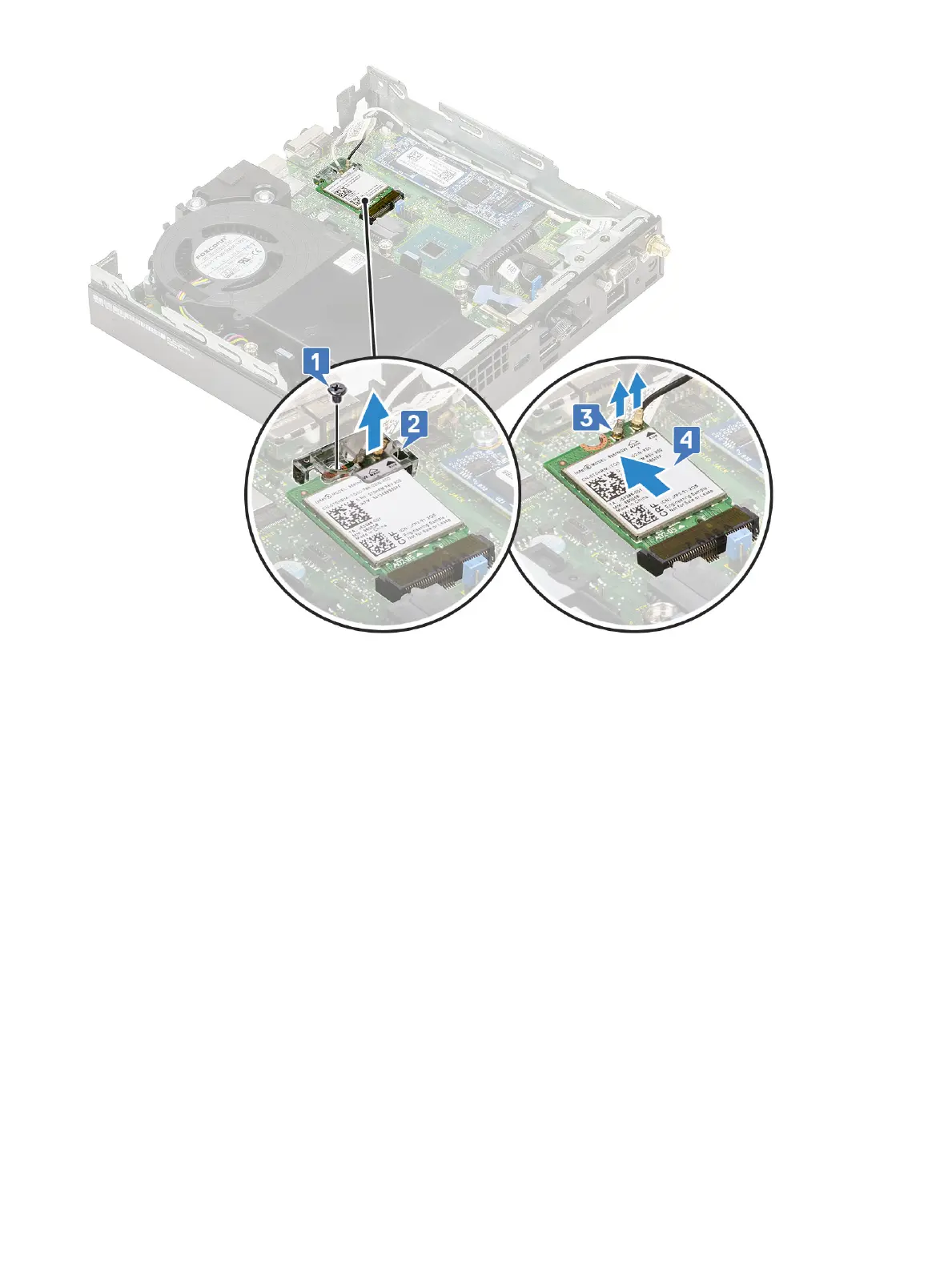

1 To install the WLAN card:
a Insert the WLAN card into the connector on the system board [1].
b Connect the WLAN antenna cables to the connectors on the WLAN card [2].
c Place the plastic tab to secure the WLAN cables [3].
d Replace the single (M2X3.5) screw to secure the plastic tab to the WLAN card [4].
