Dell E228WFP - 22" LCD Monitor User Manual

Back to Contents Page

Setting Up Your Monitor
Dell™E228WFPFlatPanelMonitorUser'sGuide
Connecting Your Monitor
Using the Front Panel
Using the OSD Menu
Setting the Optimal Resolution
Using the Dell Soundbar (Optional)

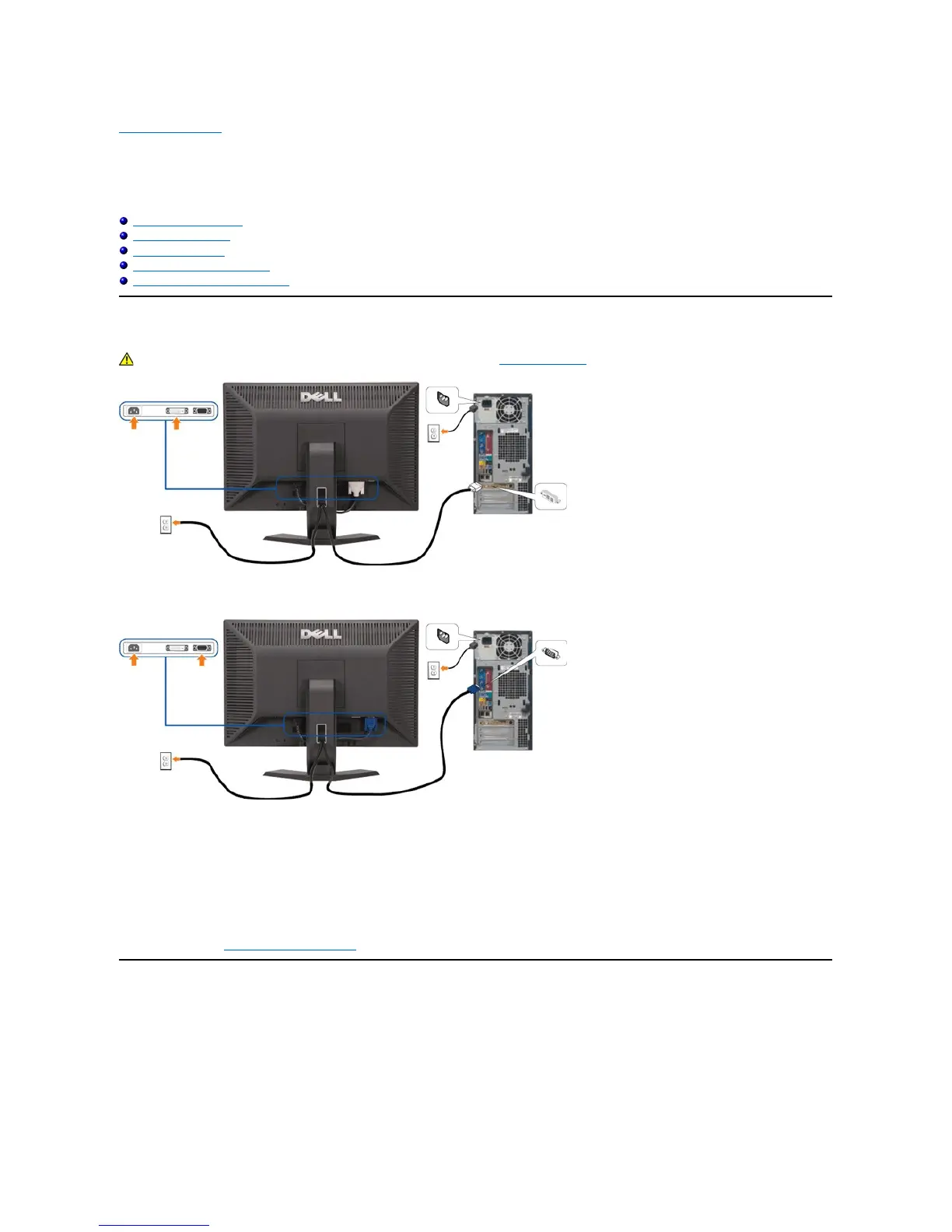

Connecting Your Monitor
To connect your monitor to the computer perform the following steps/instructions.
Using the Front Panel Button
Usethebuttonsonthefrontofthemonitortoadjusttheimagesettings.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions.
or
1.
Turn off your computer and disconnect the power cable.
2.
Connect either the white DVI or the blue VGA cable to the connectors on the computer and the monitor.
3.
Connect the power cables.
4.
Turn on your monitor and, computer. If you do not see an image, push the input select button and ensure the correct input source is selected. If you still do not
see an image, see Troubleshooting your monitor.

Dell E228WFP - 22" LCD Monitor Specifications

General

Screen Size	22 inches
Resolution	1680 x 1050
Aspect Ratio	16:10
Panel Type	TN
Brightness	300 cd/m²
Contrast Ratio	800:1
Response Time	5 ms
Inputs	DVI-D, VGA
Display Type	LCD
Pixel Pitch	0.282 mm
Horizontal Refresh Rate	30 - 83 kHz
Color Support	16.7 million colors
Viewing Angles	160° (horizontal), 160° (vertical)
Vertical Refresh Rate	56 - 76 Hz
