Dell E228WFP - 22" LCD Monitor User Manual

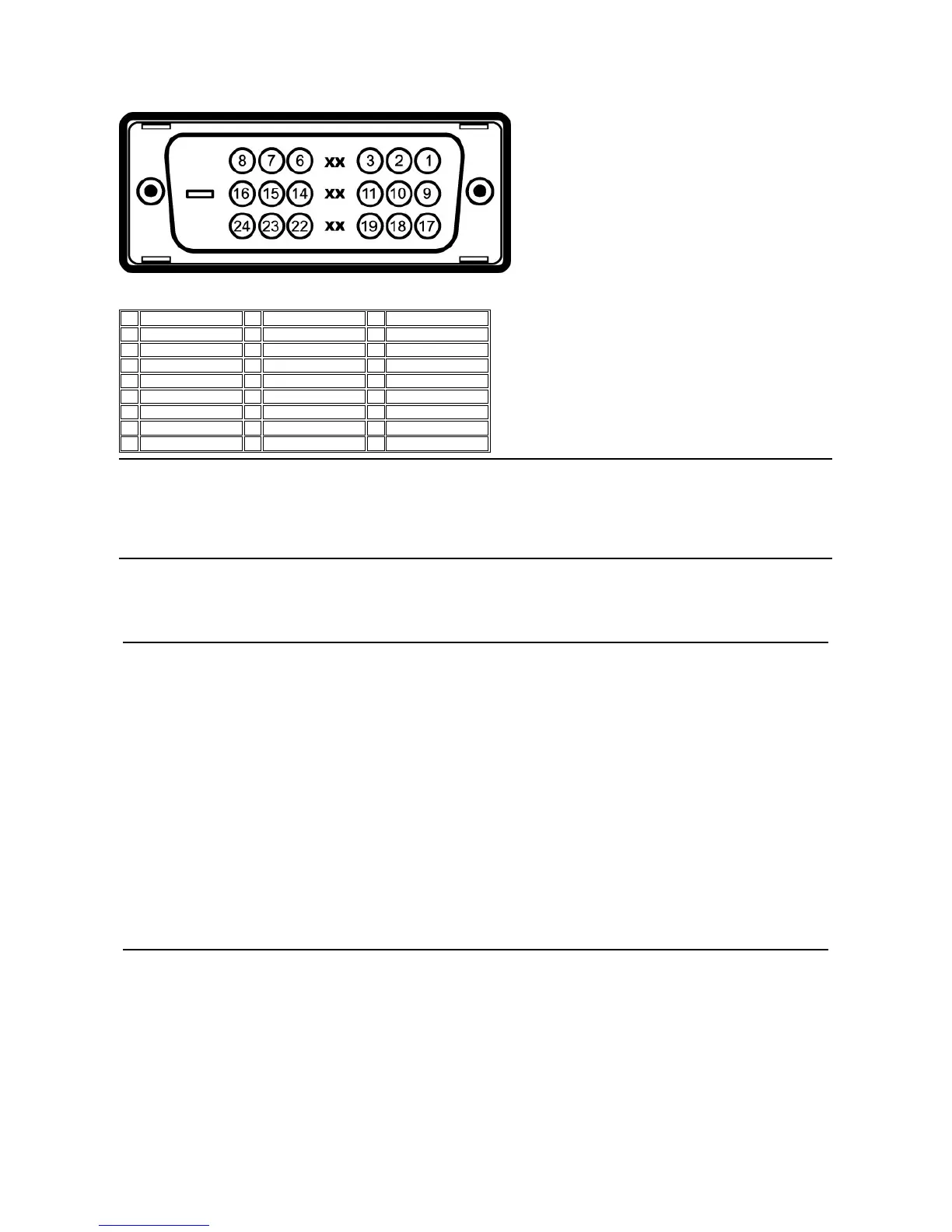

Note: Pin 1 is at the top right.
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. If desired, you
can select different settings, but in most cases monitor installation is automatic.
Pin
Signal Assignment
Pin
Signal Assignment
Pin
Signal Assignment
1
T.M.D.S. Data 2-
9
T.M.D.S. Data 1-
17
T.M.D.S. Data 0-
2
T.M.D.S. Data 2+
10
T.M.D.S. Data 1+
18
T.M.D.S. Data 0+
3
T.M.D.S. Data 2 Shield
11
T.M.D.S. Data 1 Shield
19
T.M.D.S. Data 0 Shield
4
No Pin
12
No Pin
20
No Pin
5
No Pin
13
No Pin
21
No Pin
6
DDC Clock
14
+5V Power
22
T.M.D.S. Clock Shield
7
DDC Data
15
Ground (for +5V)
23
T.M.D.S. Clock +
8
No Connect
16
Hot Plug Detect
24
T.M.D.S. Clock -
General

Model number
E228WFP


Screen type
Active matrix - TFT LCD
Screen dimensions
22 inches (22-inch viewable image size)
Preset display area:

Horizontal
473.76 mm (18.65 inches)
Vertical
296.1 mm (11.66 inches)
Pixel pitch
0.282 mm
Viewing angle
160°(vertical)typ,160°(horizontal)typ
Luminance output
300 CD/m ²(typ)
Contrast ratio
800 to 1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL edgelight system
Response Time
5ms typical

Resolution

Horizontal scan range
30 kHz to 83 kHz (automatic)
Vertical scan range
56Hzto75Hz(automatic)
Optimal preset resolution
1680 x 1050 at 60 Hz
Highest preset resolution
1680 x 1050 at 60 Hz
Video display capabilities(DVI HD playback)
480p/576p/720p

Dell E228WFP - 22" LCD Monitor Specifications

General

Screen Size	22 inches
Resolution	1680 x 1050
Aspect Ratio	16:10
Panel Type	TN
Brightness	300 cd/m²
Contrast Ratio	800:1
Response Time	5 ms
Inputs	DVI-D, VGA
Display Type	LCD
Pixel Pitch	0.282 mm
Horizontal Refresh Rate	30 - 83 kHz
Color Support	16.7 million colors
Viewing Angles	160° (horizontal), 160° (vertical)
Vertical Refresh Rate	56 - 76 Hz
