Dell EMC PowerEdge C6525 - Dell EMC PowerEdge C6525 Overview; Inside View of the Sled

Dell EMC PowerEdge C6525 overview
The PowerEdge C6525 is a half-width sled that supports:
● Two AMD EPYC 7002 and 7003 Series processors
● 16 DIMM slots
The sled also supports PCIe and Open Compute Project (OCP) risers for expansion and connectivity.
For more information, see the Dell EMC PowerEdge C6525 Technical Specifications on the product documentation page.
WARNING: Consumer-Grade GPU should not be installed or used in the Enterprise Server products.
Topics:
• Inside view of the sled
• Rear view of the sled
• Network ports indicator codes
• Locating the Express Service Code and Service Tag
• System information label
Inside view of the sled
The inside view of the PowerEdge C6525 sled:

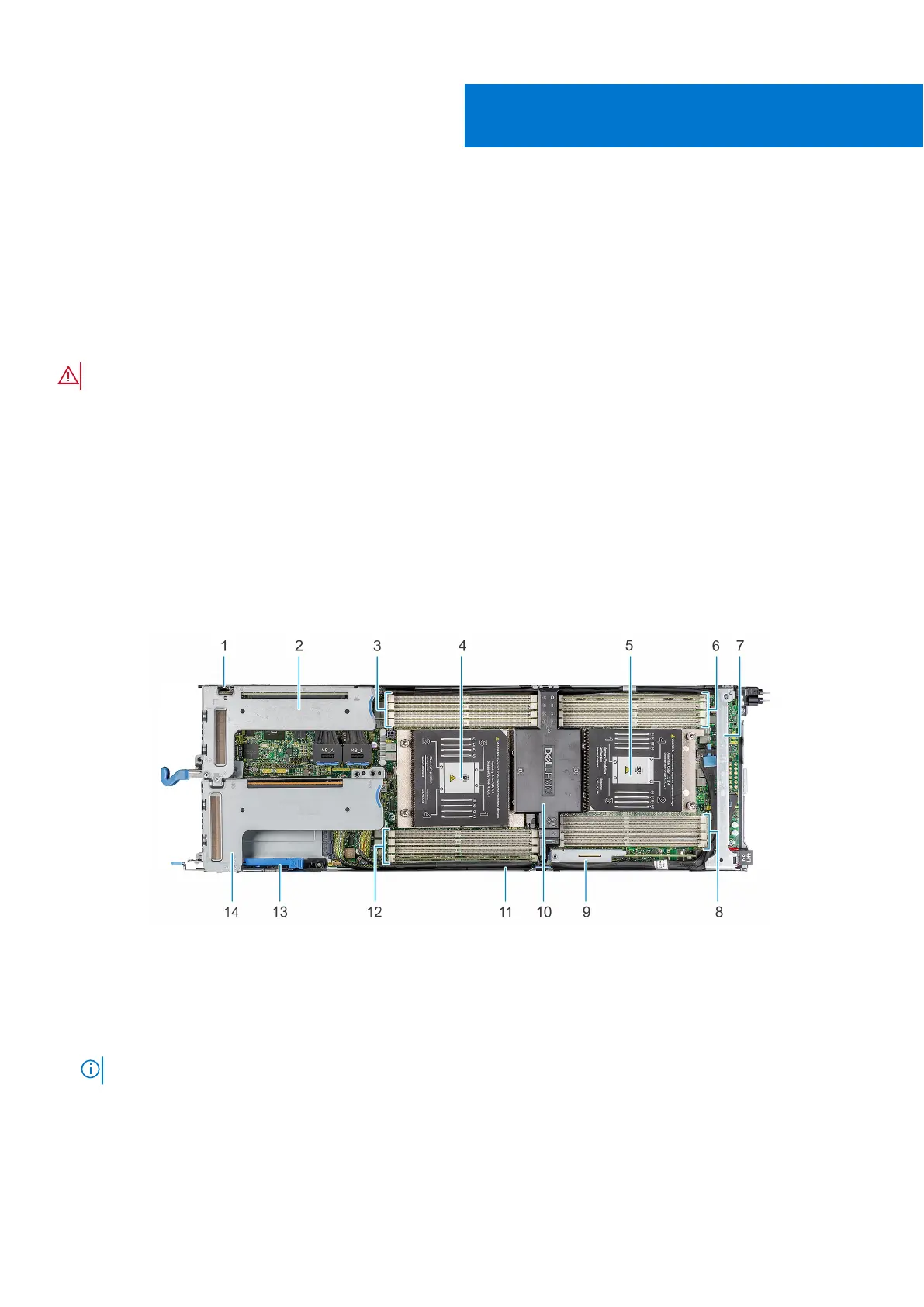

Figure 1. Inside view of the PowerEdge C6525 sled
1.
uSD card slot 2. Expansion card riser 1
3. Memory module sockets for CPU 1 4. Processor socket 1
5. Processor socket 2 6. Memory module sockets for CPU 2
7. Support bracket 8. Memory module sockets for CPU 2
9. M.2 riser
NOTE: Supports M.2 SATA card / BOSS card S1V5
10. Air shroud
11. Riser 2 cable 12. Memory module sockets for CPU 1
13. OCP card retention latch 14. Expansion card riser 2
For more information, see the Dell EMC PowerEdge C6525 Technical Specifications on the product documentation page.
