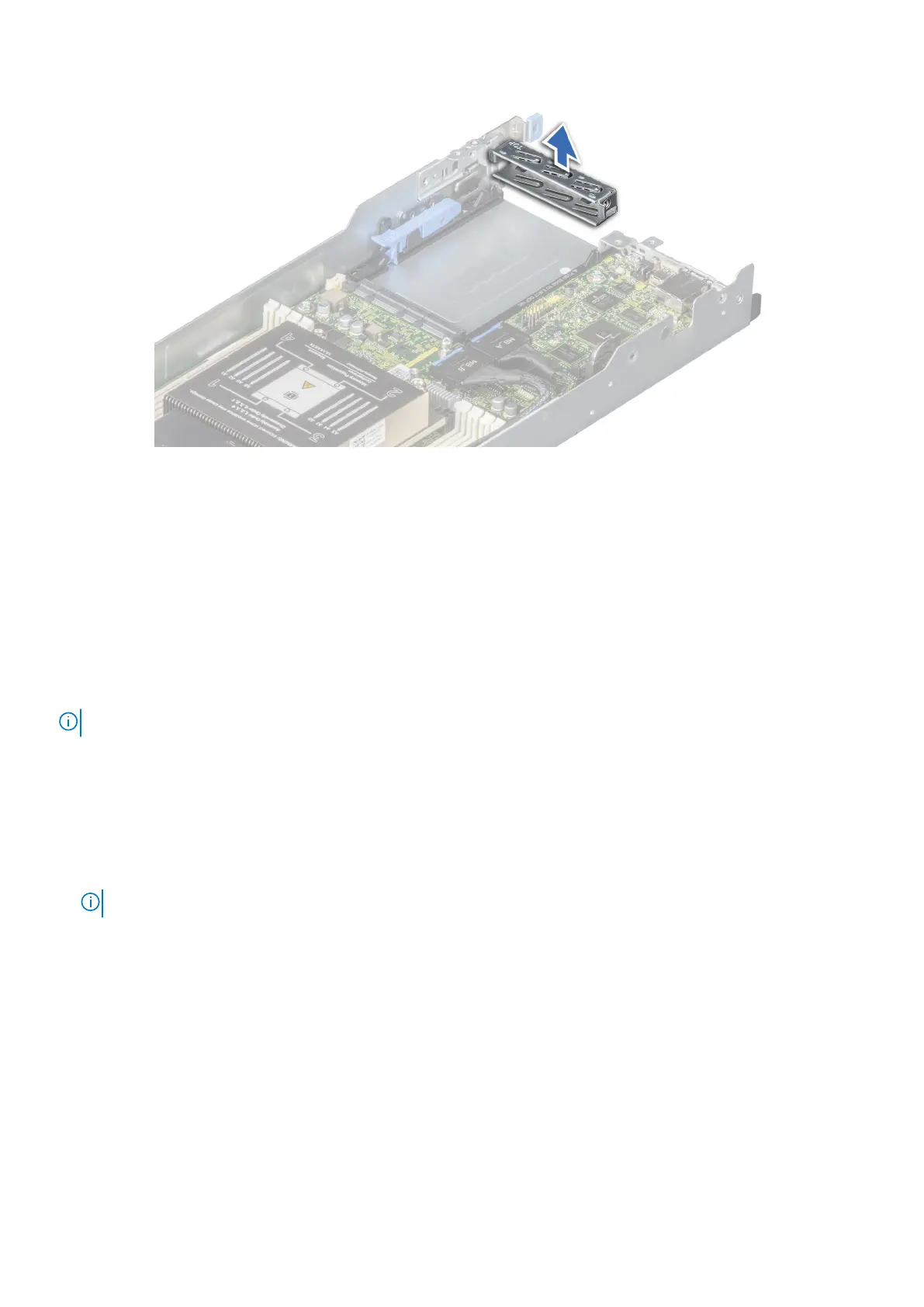

Figure 58. Removing the OCP card filler
Next steps
1. Install the OCP card.
2. Install the expansion card riser 2.
3. Install the expansion card riser 1.
Installing an OCP card
Prerequisites
NOTE: The procedure to install the OCP blank is similar to the removal of a OCP card.
1. Follow the safety guidelines listed in Safety instructions.
2. Remove the expansion card riser 1.
3. Remove the expansion card riser 2.
4. Remove the OCP filler.
Steps
1. Slide the OCP card and push until it is firmly connected to the system board connector.
NOTE: Ensure to lift the OCP card retention latch if it is in the lock position.
2. Press the OCP card retention latch to secure the card in place.
