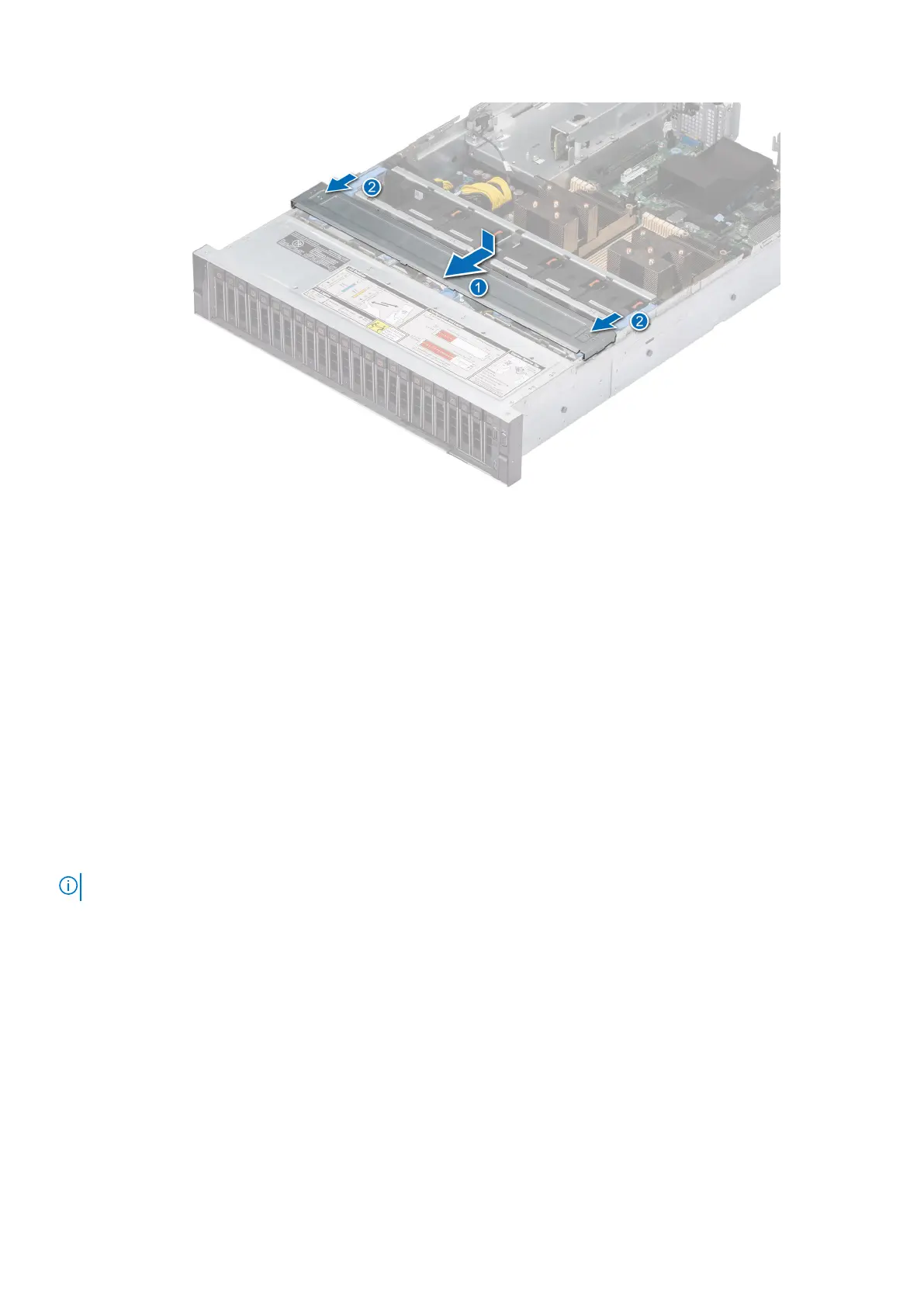

Figure 22. Installing the drive backplane cover
Next steps
Follow the procedure listed in After working inside your system.
Optional optical drive
This is a service technician replaceable part only.
Removing the optical disk drive
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Disconnect the cables connected to the optical disk drive.
NOTE: The optical disk drive is optional and is shipped with 8 x 3.5-inch backplane configuration.
Steps
1. Press the tab to release the optical disk drive from the optical disk drive bay.
2. Slide the optical disk drive out of the system.
