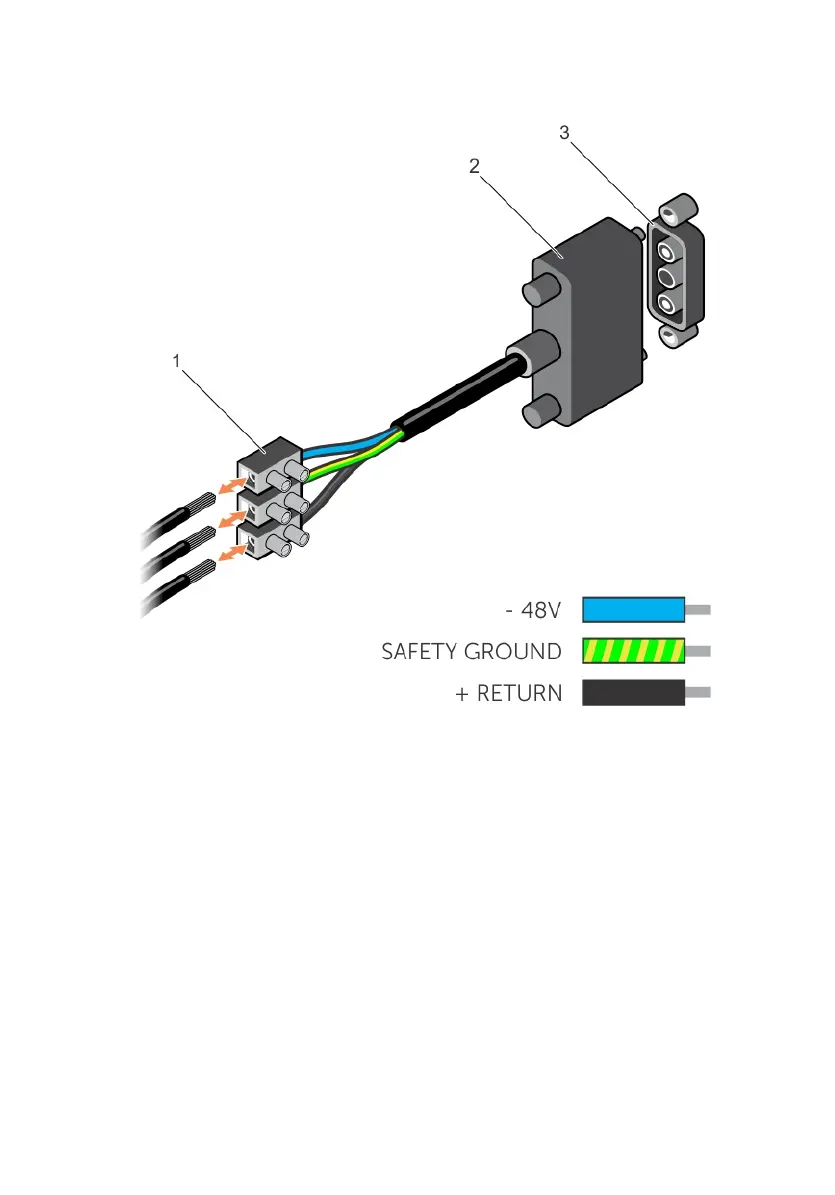

Figure 11. DC power connector and wiring block
1
Wiring block 2 Power connector
3 PSU connector
1 Strip a 1/2 inch section of insulation from each of the power connector’s wires, as
shown.
2 Insert each of the power connector’s bare wire lengths into the wiring block. The blue
wire is -48V, the black wire is the positive return, and the yellow/green wire is the
ground wire, as shown.
3 Use a at-blade screwdriver to tighten the screws that secures the bare wires into the
wiring block.
20
S4112-ON Series Installation
