Dell External OEMR R210II - Installing a 3.5-Inch Hard Drive into a Hard-Drive Carrier

60 Installing System Components

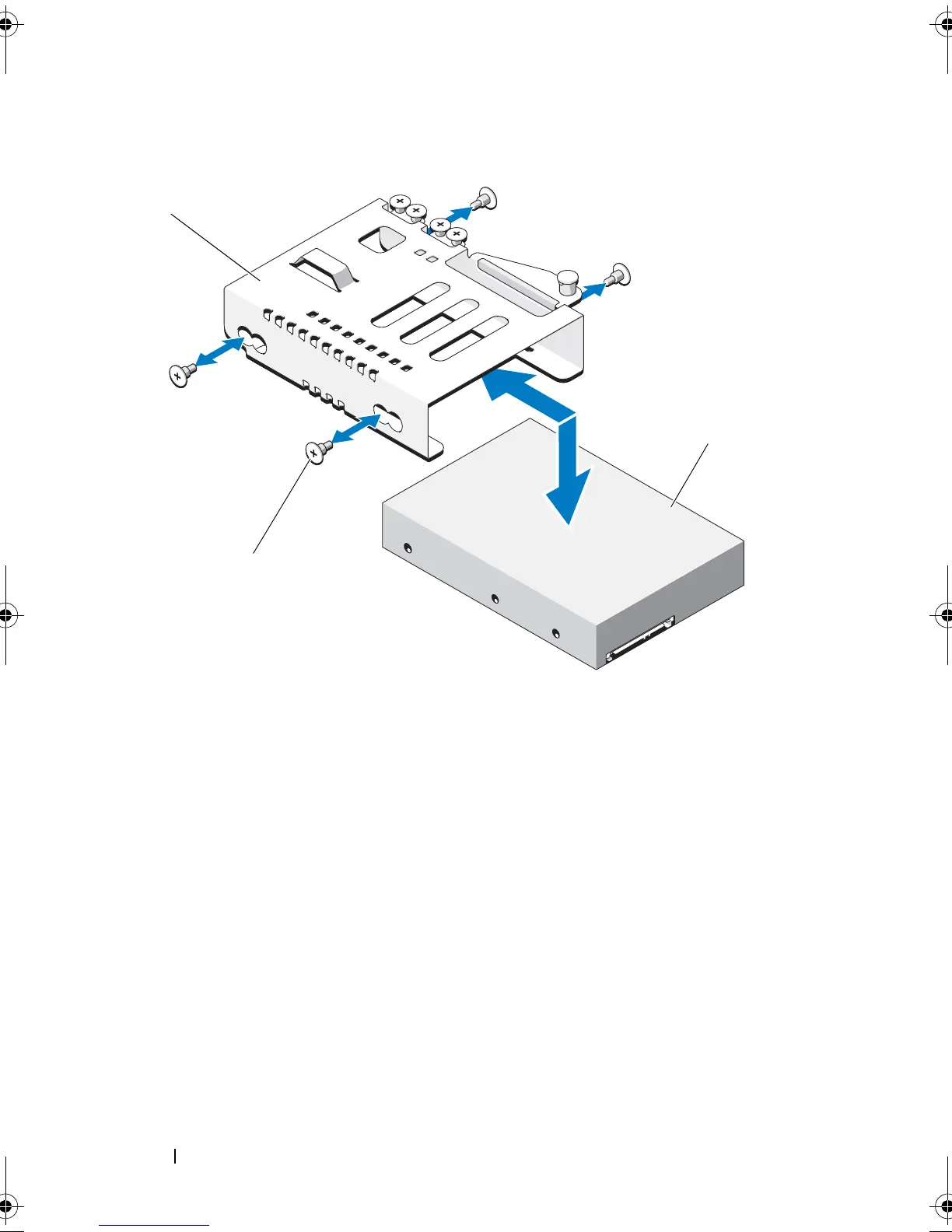

Figure 3-7. Removing a 3.5-Inch Hard Drive From a Hard-Drive Carrier
*Screws are supplied along with the hard drives ordered from Dell.
Installing a 3.5-Inch Hard Drive Into a Hard-Drive Carrier
1 Insert the hard drive into the hard-drive carrier. See Figure 3-7.
2
Align the holes on the hard drives with the set of holes on the hard-drive
carrier.
3 Attach the screws to secure the hard drive to the hard-drive carrier.
1 hard-drive carrier 2 hard drive
3 screws (4)*
