64 Installing System Components
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1
Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
2
Open the system. See "Opening the System" on page 50.
3
If installed, remove the expansion card from the expansion slot. See
"Removing an Expansion Card" on page 61.
4
To remove the expansion-card riser, press the release tab and lift the
expansion-card riser from the chassis. See Figure 3-9.

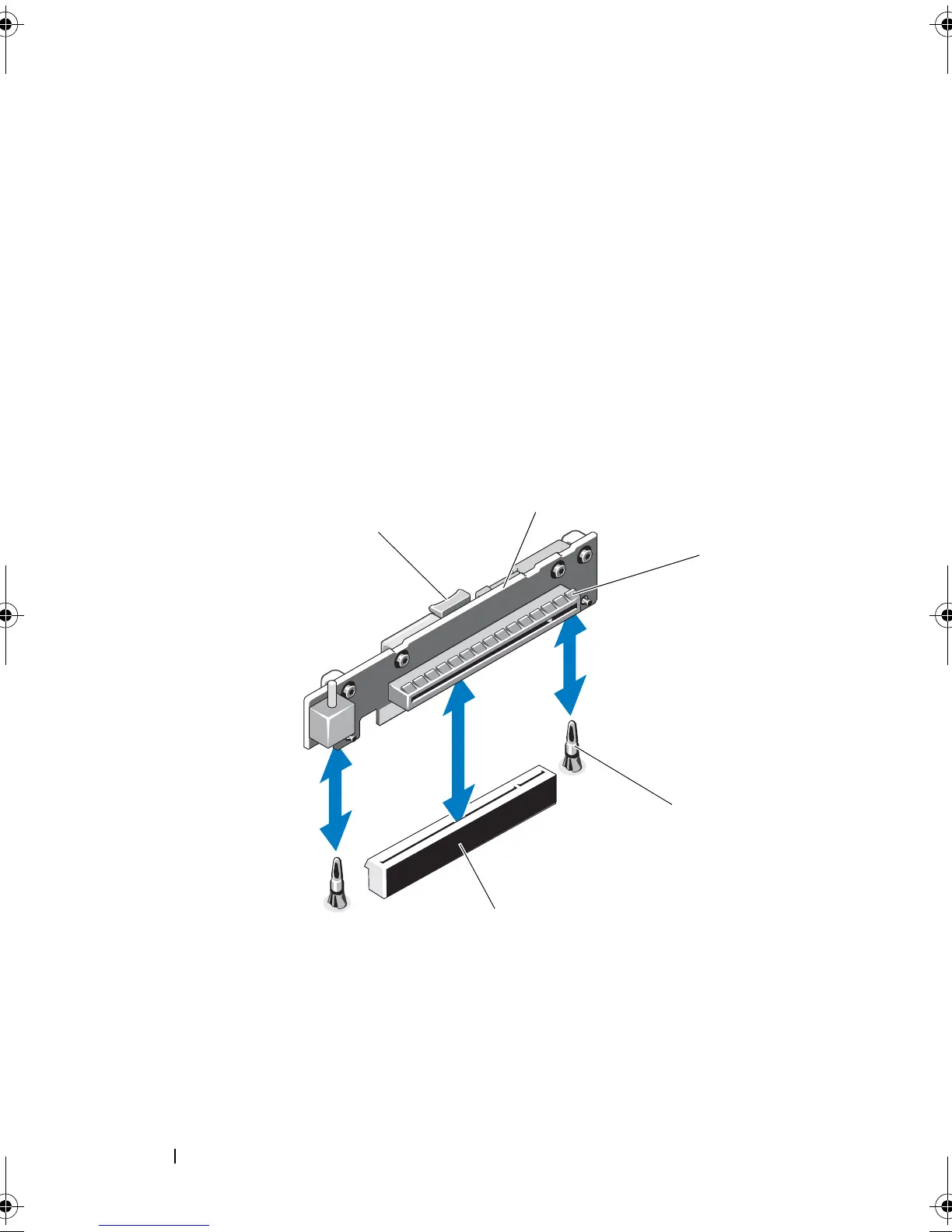

Figure 3-9. Removing and Installing an Expansion-Card Riser
1 release tab 2 expansion-card riser
3 expansion-card slot 4 riser guide posts (2)
5 expansion-card riser connector
