Dell Force10 S2410-01-10GE-24P Quick Start Guide

Installing the Hardware 9
CAUTION: Before connecting a transceiver to a source, check the receive
power of the transceiver with an optical power meter. Generally, Dell Force10
specified optics are not to be subjected to receive power higher than that
stipulated by the optic specification. If the optic is exposed to optical power in
excess of the specification, there is a high likelihood that it will be damaged.
Optical specifications for Dell Force10 branded devices are at the following
URL: http://www.force10networks.com/products/mediaspecifications.asp
S2410 Specifications
Chassis Physical Design
Step Task

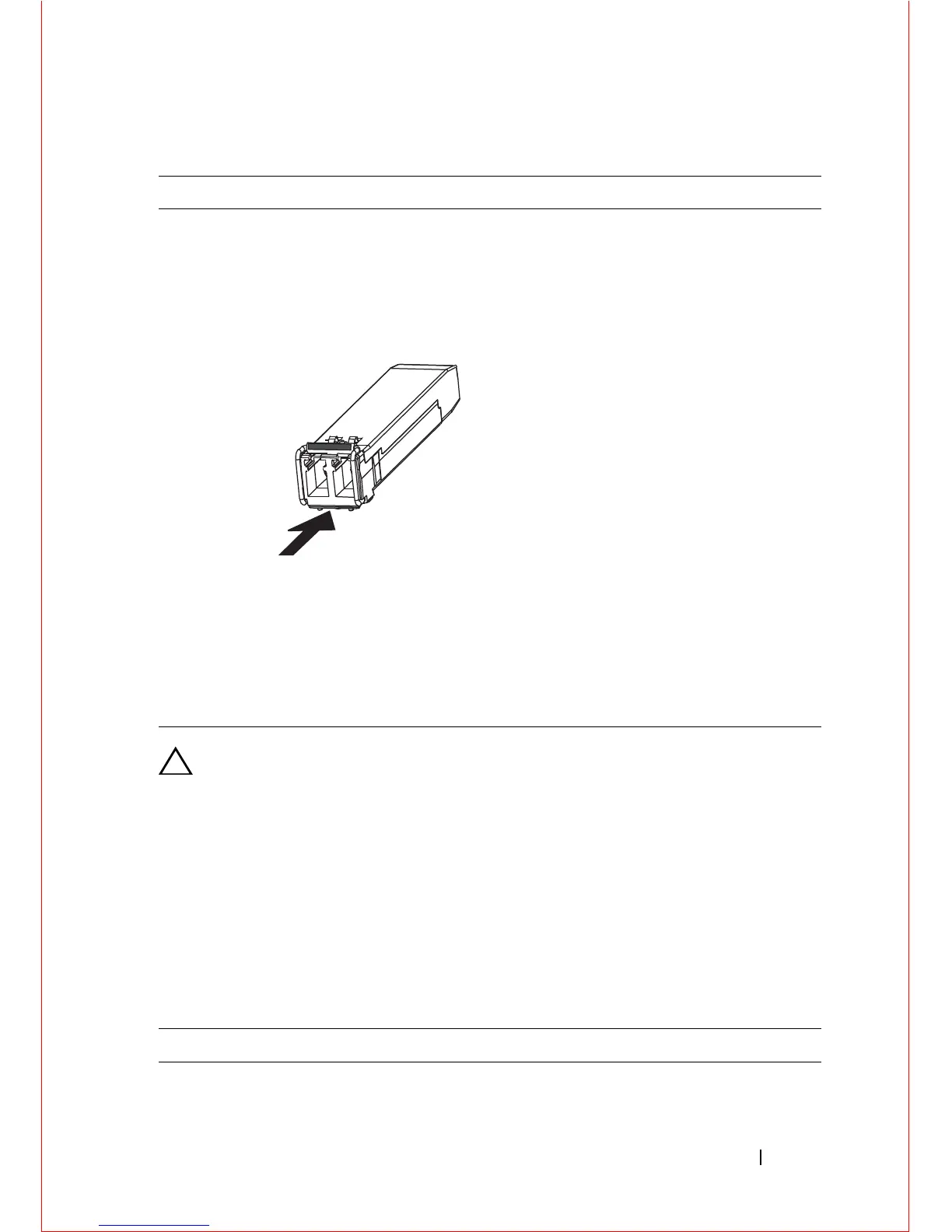

1 Position the XFP so it is in the upright position (XFPs on the bottom
(even-numbered ports) are upside down; odd-numbered ports (on top)
install right-side up), with the bail latch on top in the closed position, as
shown here. For details on XFP installation, see the instruction that
accompanies the XFP.
2 Insert the XFP gently into the port until it snaps into place. (The design
of the XFP prevents it from seating incorrectly.)
3 The XFP transceiver contains Rx and Tx labels on the two fiber optic
connections, and the connections have keyways that prevent inserting
the cables incorrectly.
Parameter S2410P S2410CP
Height 1.73 inches (4.4 cm) 1.73 inches (4.4 cm)

Dell Force10 S2410-01-10GE-24P Specifications

General

Manageable	Yes
Jumbo Frame Support	Yes
Product Type	Switch
Uplink Ports	4 x 10 Gigabit SFP+
MAC Address Table Size	32K entries
Operating Temperature	0 °C to 40 °C
Storage Temperature	-40 °C to 70 °C
Power Supply	Internal
