6xxx | Installationxxx
Installing tooled rails:
1 Attach the left and right mounting rails to the front vertical rack flanges
using two pairs of screws.
2 Slide the left and right back brackets forward against the rear vertical rack
flanges and attach them using two pairs of screws.

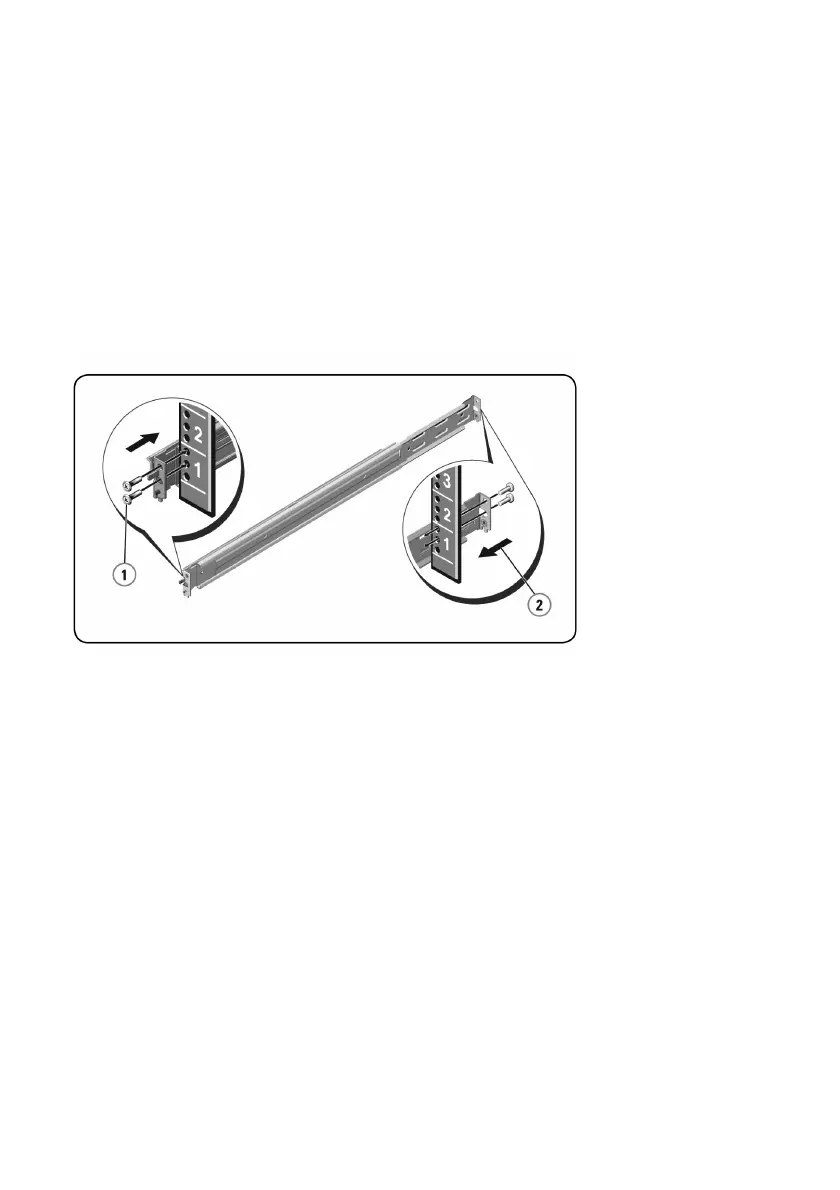

Figure 2.3. Installing Tooled Rails
