Removal from the Rackxxx | xxx25
To remove tool-less rails:
1 At the front of the rack, pull the blue tab to release the lock.
2 Repeat at the back of the rack and slide the rail out of the rack.

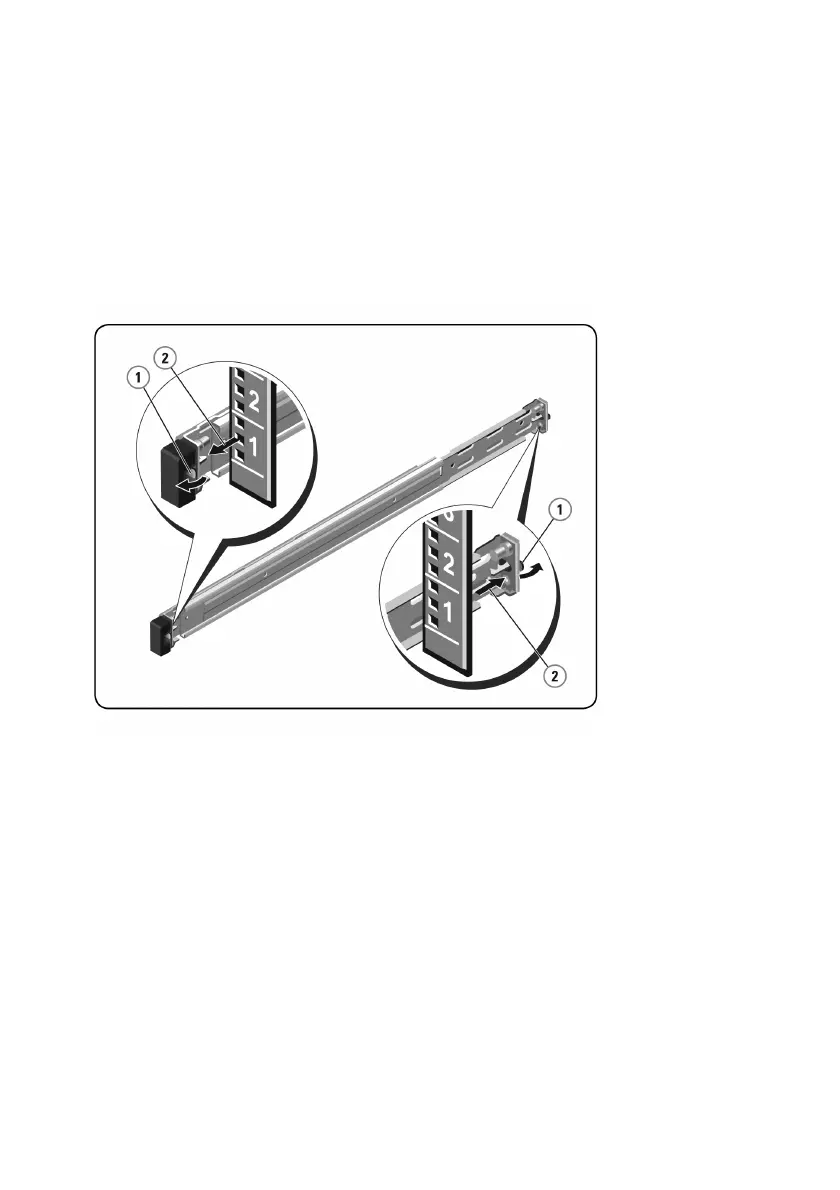

Figure 4.2. Removing Tool-less Rails
