4. Turn the computer over and place the computer on a clean and flat surface.
5. Remove the display cable from the routing guides on the palm-rest and keyboard assembly.
6. Remove the eight screws (M2.5x4.5) that secure the display-assembly hinges to the palm-rest and keyboard assembly.
7. Lift the display assembly off the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

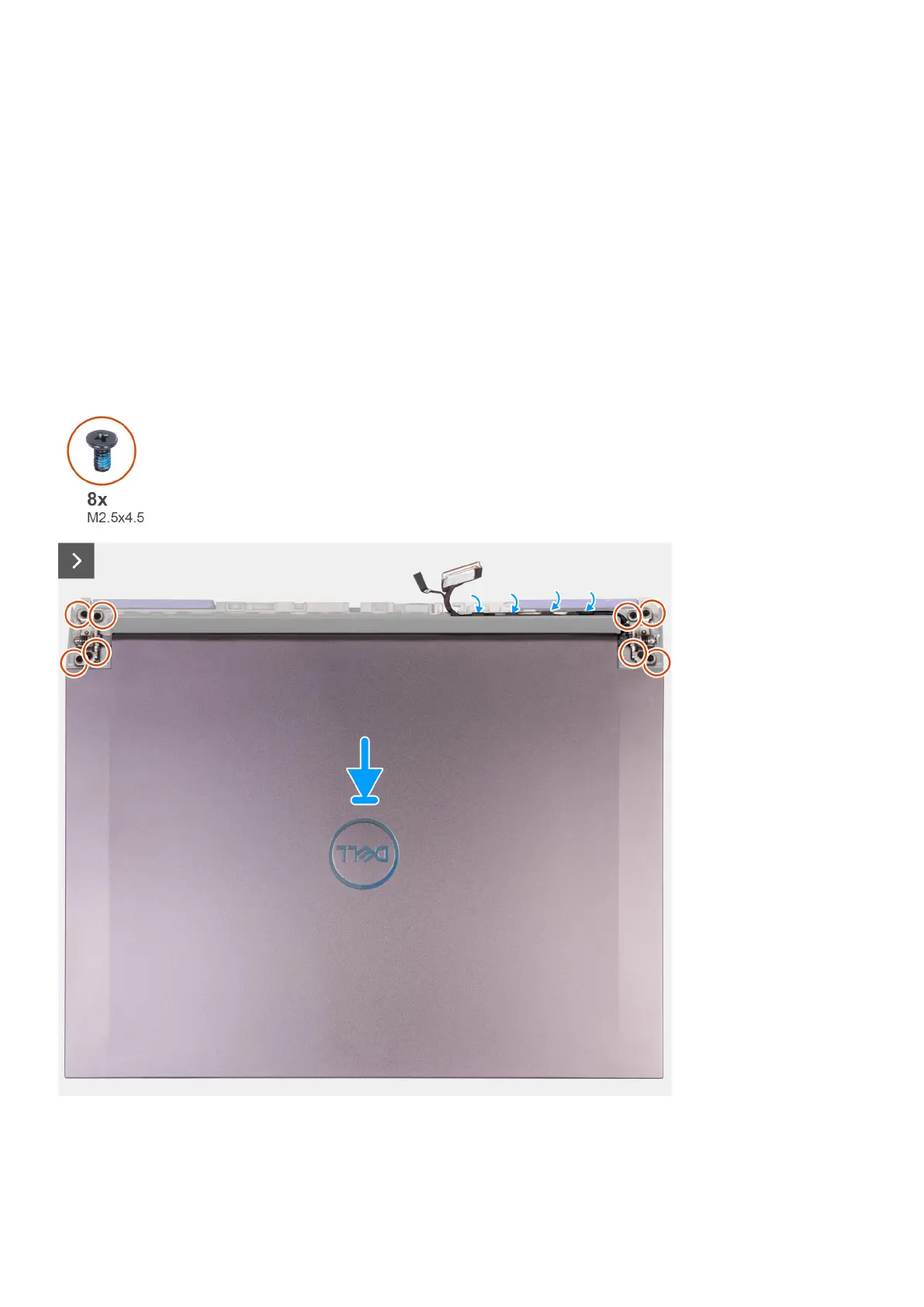

The following image indicates the location of the display assembly and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs) 57
