CAUTION: Exercise care when flipping the computer.

5. Flip the computer over.

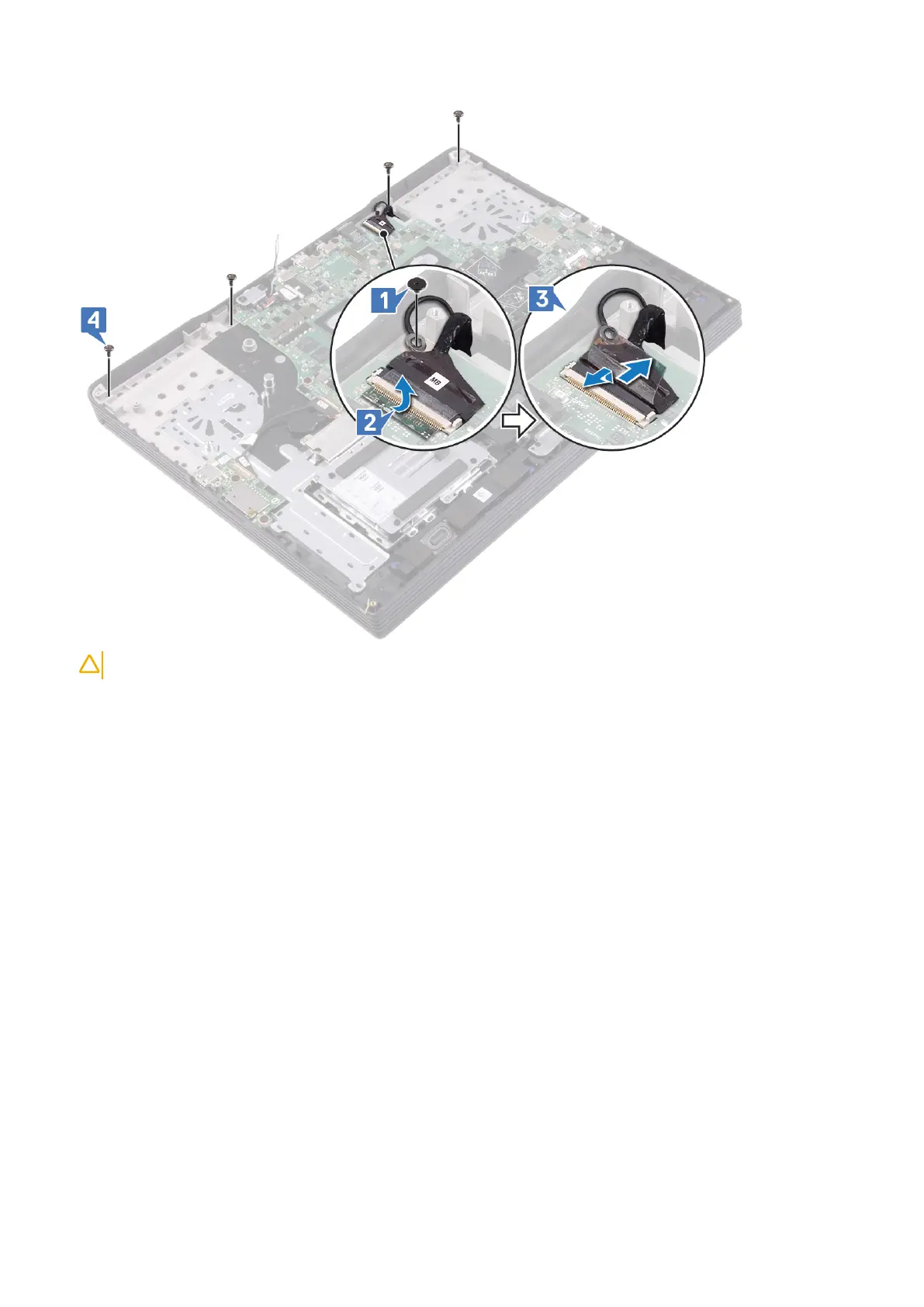

6. Pry the hinge cover from the palm-rest and keyboard assembly and lift it off the palm-rest and keyboard assembly.

Removing the display assembly

65
