Dell IN2010N - OSD Warning Messages


OSD Warning Messages






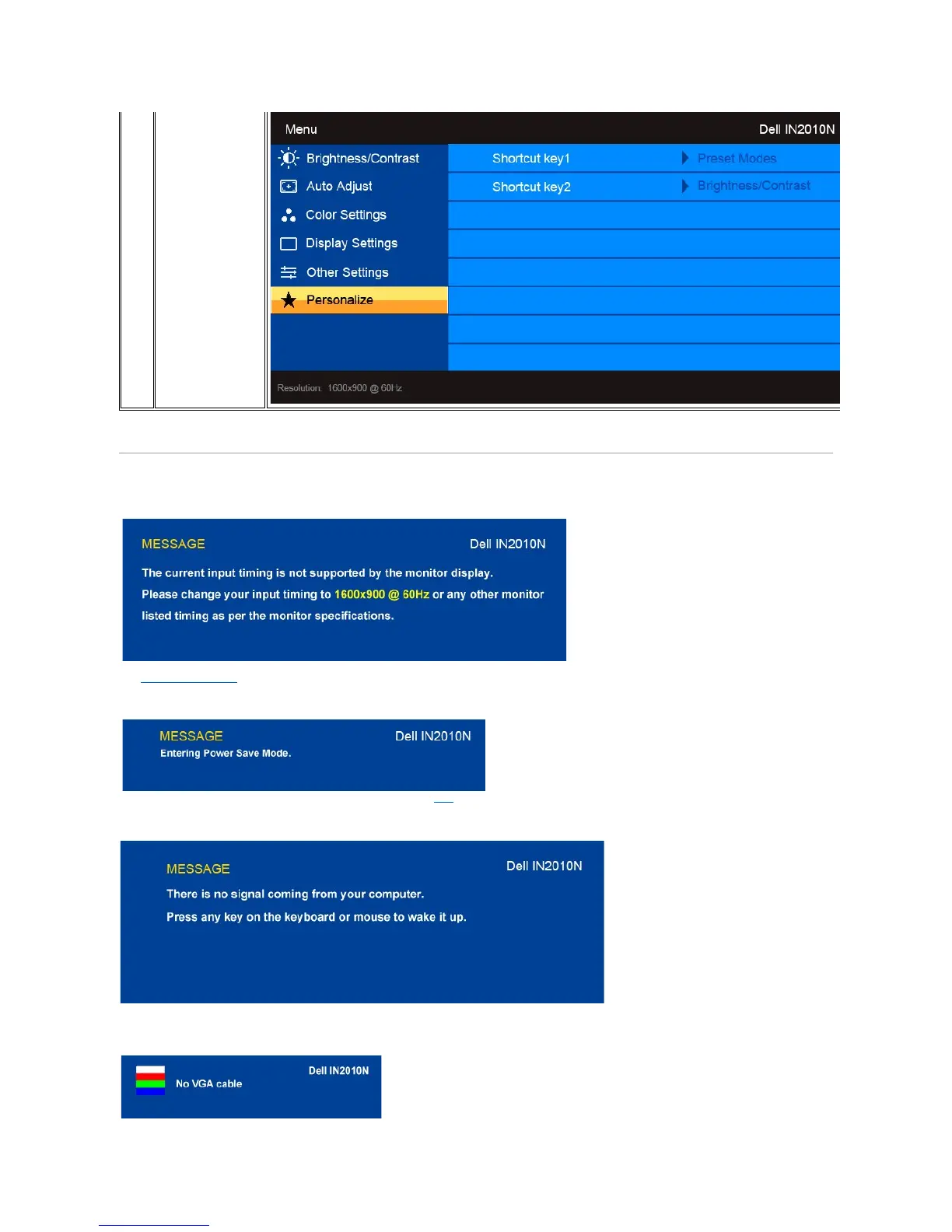

When the monitor does not support a particular resolution mode you will see the following message :
This means that the monitor cannot synchronize with the signal that it is receiving from the computer.
See Monitor SpecificationsfortheHorizontalandVerticalfrequencyrangesaddressablebythismonitor.
The recommended mode is 1600x900.

WhenmonitorentersPowerSavemode,thefollowingmessageappears:
Activate the computer and wake up the monitor to gain access to the OSD


If you press any button other than the power button the following message will appear:
If VGA input is selected and VGA cable is not connected, a floating dialog box as shown below appears.
