5. Remove the base cover.
About this task
NOTE: Depending on the configuration ordered, your computer may support a 2280 solid-state drive, or a 2230 solid-state
drive in M.2 slot.
NOTE: This procedure applies only to computers shipped with a 2280 solid-state drive installed in M.2 slot.

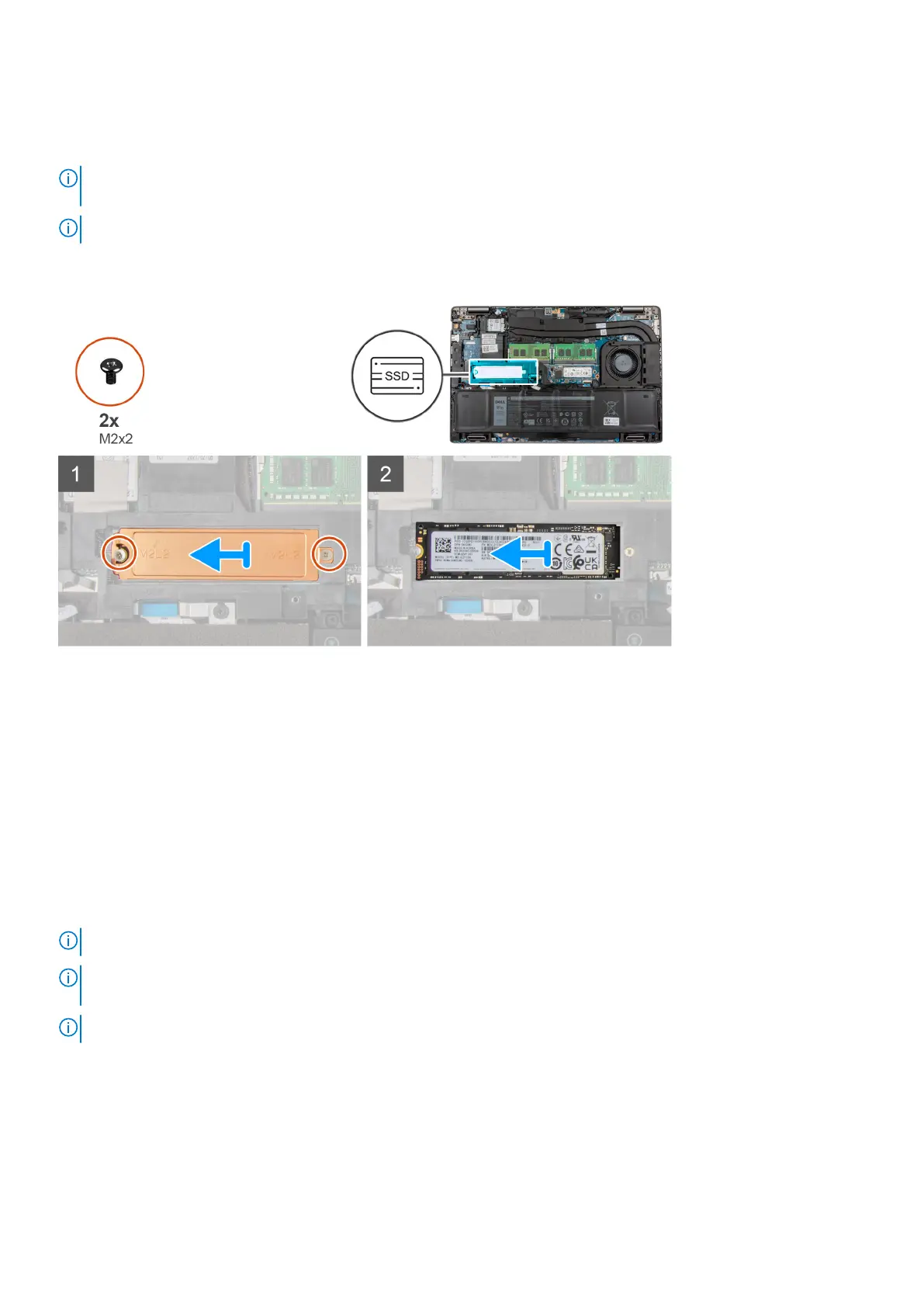

The following image indicates the location of the 2280 solid-state drive that is installed in M.2 slot and provides a visual
representation of the removal procedure.
Steps
1. Remove the two (M2x2) screws that secures the solid-state drive thermal plate to the palm-rest and keyboard assembly.
2. Remove the solid-state drive thermal plate out of the system.
3. Slide and lift the 2280 solid-state drive off the M.2 solid-state drive slot on the system.
Installing the 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
NOTE: Depending on the configuration ordered, the computer one may support a 2280 solid-state drive, or a 2230
solid-state drive in M.2 slot.
NOTE: This procedure is applicable if you are installing a 2280 solid-state drive in M.2 slot.
The following image indicates the location of the 2280 solid-state drive that is installed in M.2 slot and provides a visual
representation of the installation procedure.
Removing and installing components
31
